£26.63
excl. VAT
£31.96 incl. VAT
£31.96
incl. VAT
£26.63 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| Ball centre to end distance | 6 mm |
| Basic radial load dynamic | 9400 N |
| Basic radial load static | 5000 N |
| Consists of | Clamp bearing, Clamp ring |
| Inner ring width | 16.7 mm |
| Inside diameter | 20 mm |
| Locking collar and inner ring width | 24.6 mm |
| Locking collar outside diameter | 30 mm |

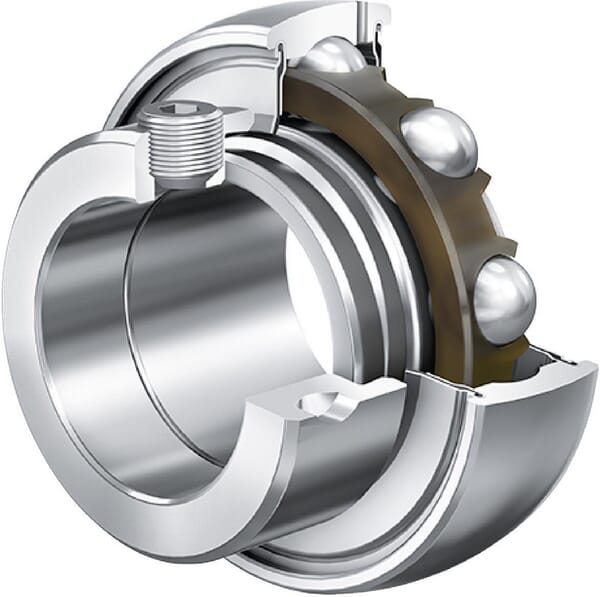

| Long description | Ball bearing inserts INA/FAG, series RALE..NPPB |
| Manufacturer | Schaeffler |
| Original number equivalent | RALE20-NPP-B |
| Outer ring width | 12 mm |
| Outside diameter | 42 mm |
| Outside diameter of inner ring | 25.4 mm |
| Properties | One-sided extended inner ring with clamp ring, Convex outer ring without lubricating holes, P seal, Polyamide housing |
| Unit | Each |
| Weight | 0.1 kg |
| Wrench/spanner size | 2.5 mm |
Logistics
| EAN | 4012802782097 |
|---|---|
| Unit of measure | EA |
| Weight | 110 g |
| Dimensions | 47 × 47 × 31 mm |
| Dangerous goods | No |
You might also like
BPA000349675

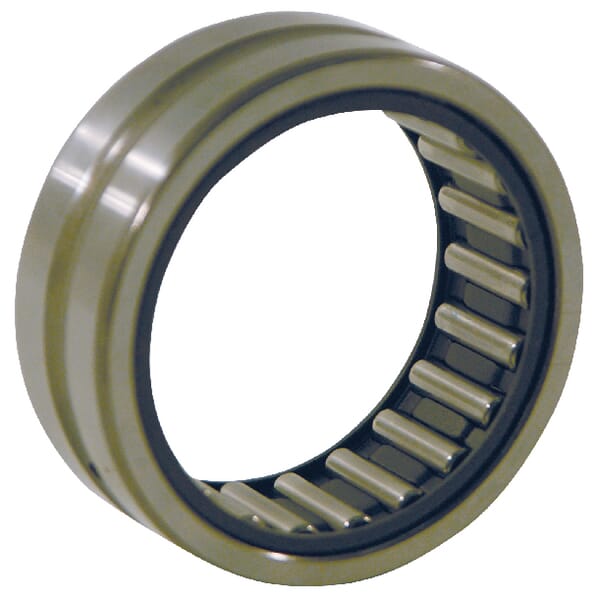

INA Needle roller RNA4907
£51.98 excl.
£62.38 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000280791
INA Bearing housing GGCFT09
£30.52 excl.
£36.62 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000280826

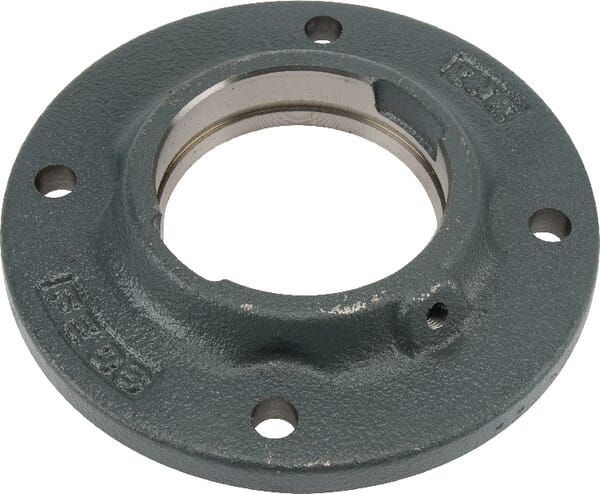

INA Bearing housing for RFE(Y) 30 GGFE06
£31.57 excl.
£37.88 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000326485
INA Track roller with nut NUKR47XANMT
£133.33 excl.
£160.00 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340828

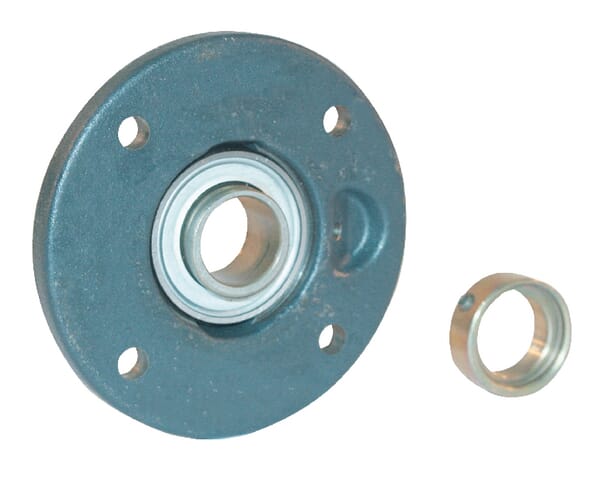

INA Housing unit PME PME45
£112.07 excl.
£134.48 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000310464

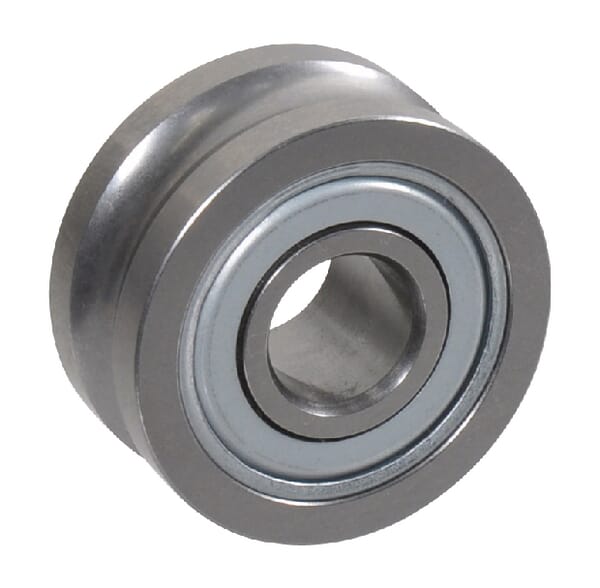

INA Track roller bearing LFR5204162Z
