£31.16
excl. VAT
£37.39 incl. VAT
£37.39
incl. VAT
£31.16 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| Ball centre to end distance | 6 mm |
| Basic radial load dynamic | 9400 N |
| Basic radial load static | 5000 N |
| Consists of | Clamp bearing, Clamp ring |
| Inner ring width | 16.7 mm |
| Inside diameter | 20 mm |
| Locking collar and inner ring width | 24.5 mm |
| Locking collar outside diameter | 30 mm |
| Long description | Ball bearing inserts INA/FAG, series RALE..NPP |
| Manufacturer | Schaeffler |
| Original number equivalent | RALE20-NPP-FA106 |
| Outer ring width | 12 mm |
| Outside diameter | 42 mm |
| Outside diameter of inner ring | 25.4 mm |
| Properties | One-sided extended inner ring with clamp ring, Flat outer ring with no lubrication holes, P seal, Polyamide housing |
| Unit | Each |
| Wrench/spanner size | 2.5 mm |
Logistics
| EAN | 4012802787115 |
|---|---|
| Unit of measure | EA |
| Weight | 107 g |
| Dimensions | 55 × 55 × 36 mm |
| Dangerous goods | No |
You might also like
BPA000280553
INA Bearing insert 35x72x19mm INA/FAG GE35KRRB2C
£58.95 excl.
£70.74 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000296984
INA Inner ring IR14X17X17XL
£9.86 excl.
£11.83 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000323687
INA Track roller bearing NUTR35A
£155.76 excl.
£186.91 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000344294

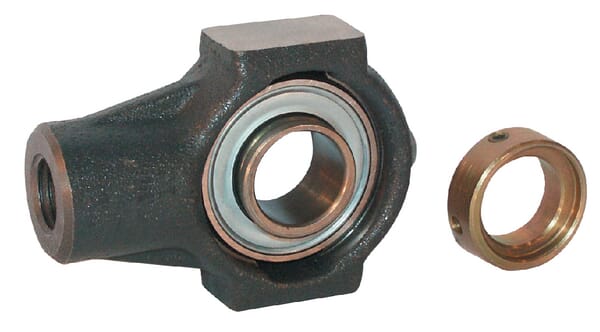

INA Housing unit PHE PHE35
