£30.23
excl. VAT
£36.28 incl. VAT
£36.28
incl. VAT
£30.23 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.

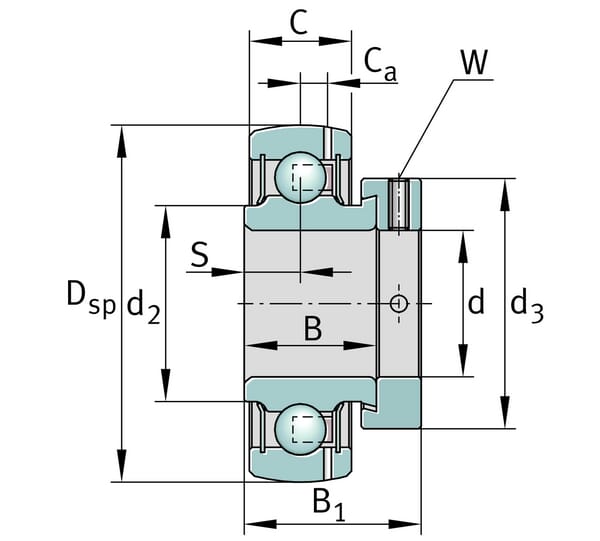

Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| Ball centre to end distance | 7.5 mm |
| Ball centre to grease hole distance | 4 mm |
| Basic radial load dynamic | 12800 N |
| Basic radial load static | 6600 N |
| Consists of | Clamp bearing, Clamp ring |
| Inner ring width | 21.4 mm |
| Inside diameter | 20 mm |
| Locking collar and inner ring width | 31 mm |
| Locking collar outside diameter | 33 mm |
| Long description | Ball bearing inserts INA/FAG, series GRAE..NPPB |
| Manufacturer | Schaeffler |
| Original number equivalent | GRAE20-NPP-B-FA107/125.5 |
| Outer ring width | 14 mm |
| Outside diameter | 47 mm |
| Outside diameter of inner ring | 26.9 mm |
| Properties | One-sided extended inner ring with clamp ring, Convex outer ring with lubricating holes, P seal, Polyamide housing |
| Unit | Each |
| Wrench/spanner size | 3.0 mm |
Logistics
| EAN | 4012802812121 |
|---|---|
| Unit of measure | EA |
| Weight | 168 g |
| Dimensions | 58 × 57 × 36 mm |
| Dangerous goods | No |
You might also like
BPA000286894
INA Bearing insert 20x47x14mm INA/FAG GRAE20NPPBFA1255
£35.91 excl.
£43.09 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000305972

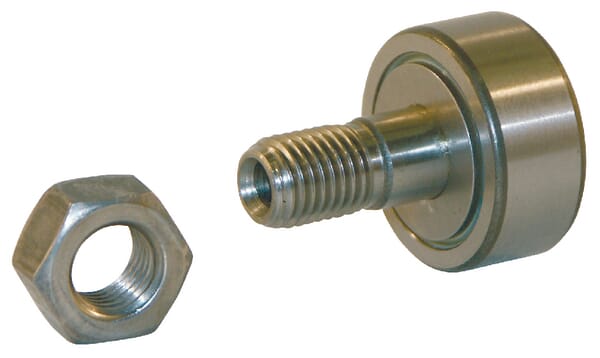

INA Track roller with nut KRV35BNMT
£137.00 excl.
£164.40 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000324585
INA Needle roller/angular ball brg NKIB5909XL
£195.58 excl.
£234.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000232387

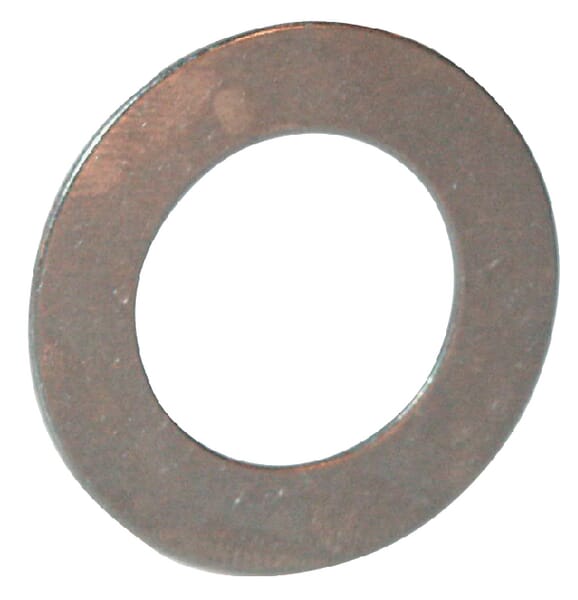

INA Axial washer AS75100
£9.26 excl.
£11.11 incl.
In stock
Expected to ship on Friday 18 September
BPA000233728
INA Bearing insert 17x40x12mm INA/FAG AY17NPPB
£19.49 excl.
£23.39 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000325614

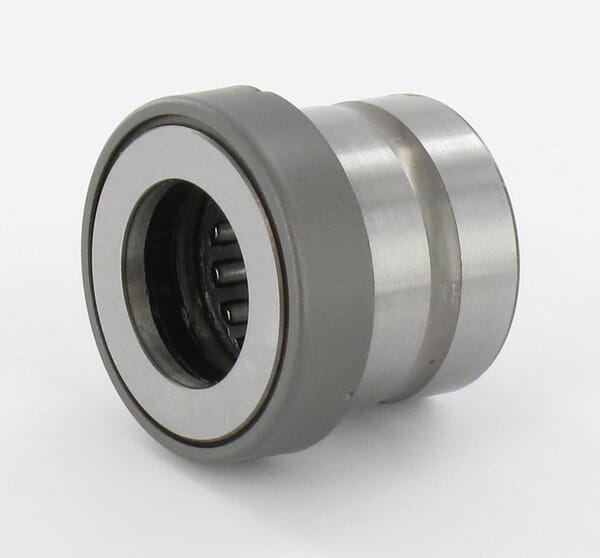

INA Needle roller/axial ball brg NKX45ZXL
