£41.30
excl. VAT
£49.56 incl. VAT
£49.56
incl. VAT
£41.30 excl. VAT
In stock
Expected to ship on Friday 18 September

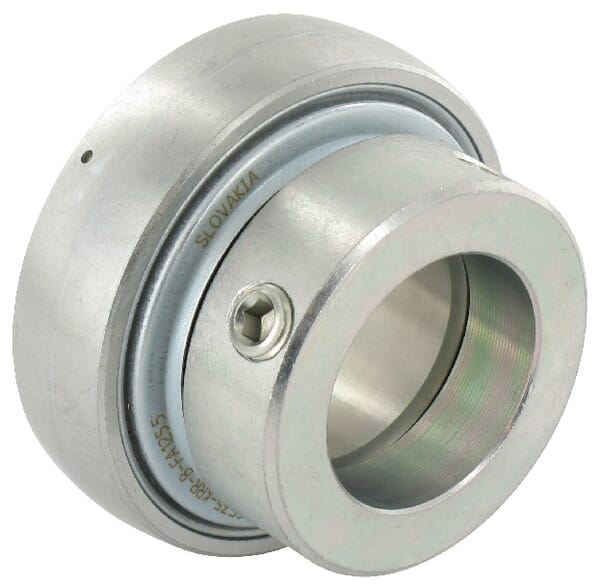

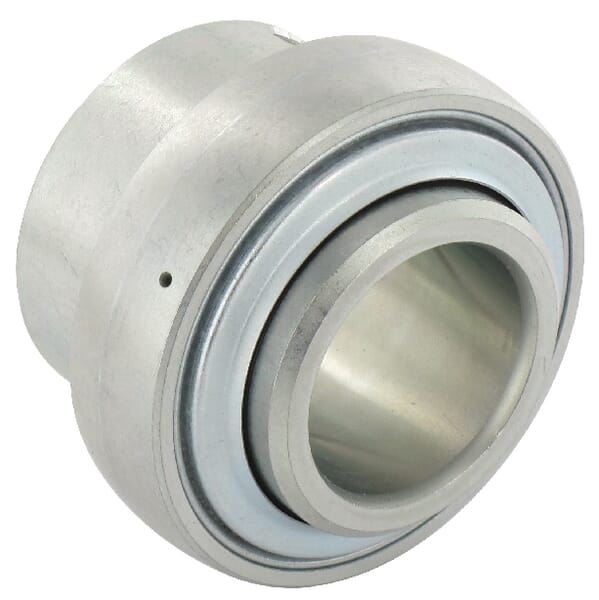

Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|

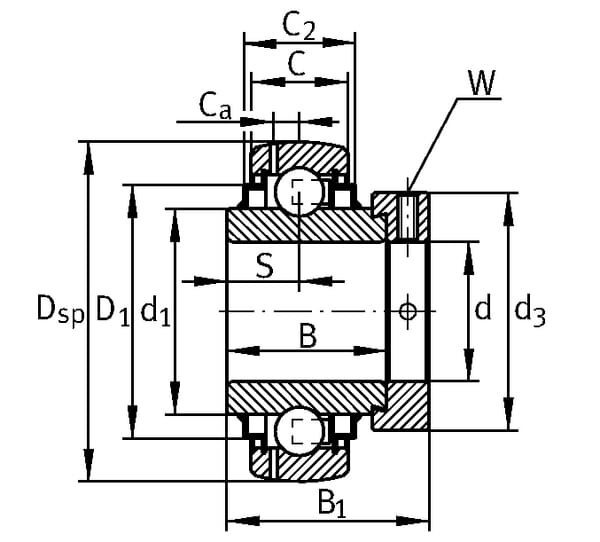

| Ball centre to end distance | 17.5 mm |
| Ball centre to grease hole distance | 3.9 mm |
| Basic radial load dynamic | 14000 N |
| Basic radial load static | 7800 N |
| BInner ring width | 34.9 mm |
| Consists of | Clamp bearing, Clamp ring |
| COuter ring width | 15 mm |
| d1Outside diameter of inner ring | 33.8 mm |
| dInside diameter | 25 mm |
| DspOutside diameter | 52 mm |
| Locking collar and inner ring width | 44.4 mm |
| Locking collar outside diameter | 37.5 mm |
| Locking collar width | 44.5 mm |
| Manufacturer | Schaeffler |
| Original number equivalent | GE25-KRR-B-FA125.5 |
| Properties | Extended inner ring with clamp ring on both sides, Convex outer ring with lubricating holes, R seal, Polyamide housing |
| Sealing width | 16.7 mm |
| Technical info | Supplement FA: rust-proof Corrotect design |
| Unit | Each |
| Wrench/spanner size | 3.0 mm |
Logistics
| EAN | 4054369905984 |
|---|---|
| Unit of measure | EA |
| Weight | 237 g |
| Dimensions | 50 × 50 × 57 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000346283
INA Plastic bearing cover KLV RASEY50TVVA
£301.96 excl.
£362.35 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

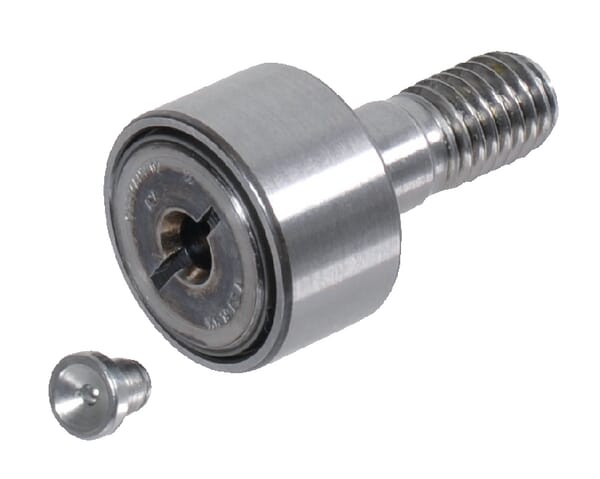

BPA000302181
INA Stud type track roller KRE30PPA
£109.08 excl.
£130.90 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000273635

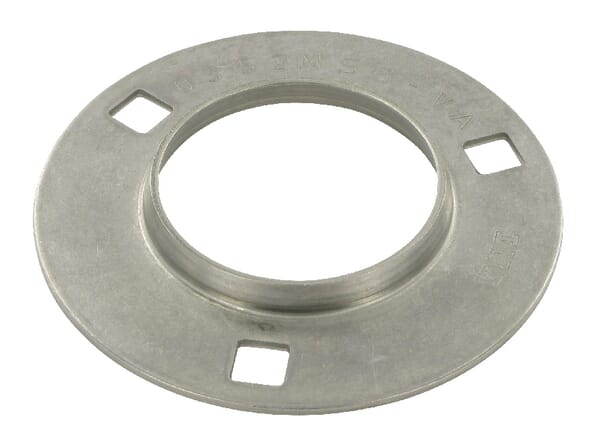

INA Plate steel bearing half MSB FLAN52MSBVA
£18.83 excl.
£22.60 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000355062
INA Track roller bearing RSTO40
£106.84 excl.
£128.21 incl.
Backorder available
Usually ships within 3–8 weeks

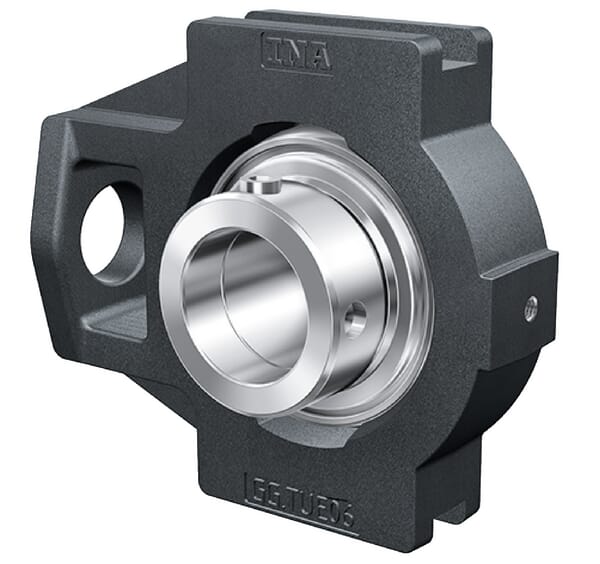

BPA000343249
INA Housing unit PTUEY20XL
£49.75 excl.
£59.70 incl.
Backorder available
Usually ships within 3–8 weeks

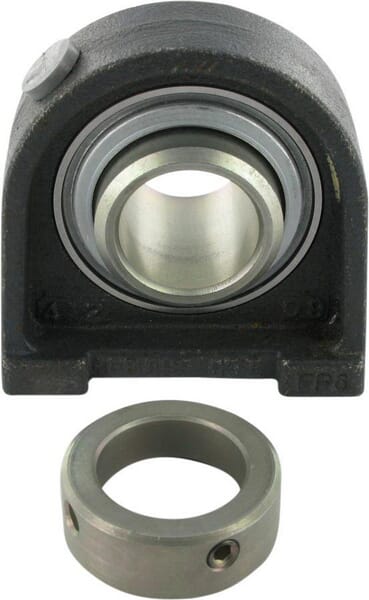

BPA000354969
