£51.12
excl. VAT
£61.34 incl. VAT
£61.34
incl. VAT
£51.12 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| Ball centre to end distance | 18.3 mm |
| Ball centre to grease hole distance | 4.7 mm |
| Basic radial load dynamic | 19500 N |
| Basic radial load static | 11300 N |
| Consists of | Clamp bearing, Clamp ring |
| Inner ring width | 36.5 mm |
| Inside diameter | 30 mm |
| Locking collar and inner ring width | 48.5 mm |
| Locking collar outside diameter | 44 mm |
| Manufacturer | Schaeffler |
| Original number equivalent | GE30-KRR-B-FA125.5 |
| Outer ring width | 18 mm |
| Outside diameter | 62 mm |
| Outside diameter of inner ring | 40.2 mm |
| Properties | Extended inner ring with clamp ring on both sides, Convex outer ring with lubricating holes, R seal, Polyamide housing |
| Sealing diameter | 52 mm |
| Sealing width | 20.7 mm |
| Technical info | Supplement FA: rust-proof Corrotect design |
| Unit | Each |
| Weight | 0.38 kg |
| Wrench/spanner size | 4.0 mm |
Logistics
| EAN | 4012802812794 |
|---|---|
| Unit of measure | EA |
| Weight | 390 g |
| Dimensions | 75 × 75 × 55 mm |
| Dangerous goods | No |
You might also like
BPA000324615
INA Needle roller bearing NA4910XL
£97.38 excl.
£116.86 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000349567

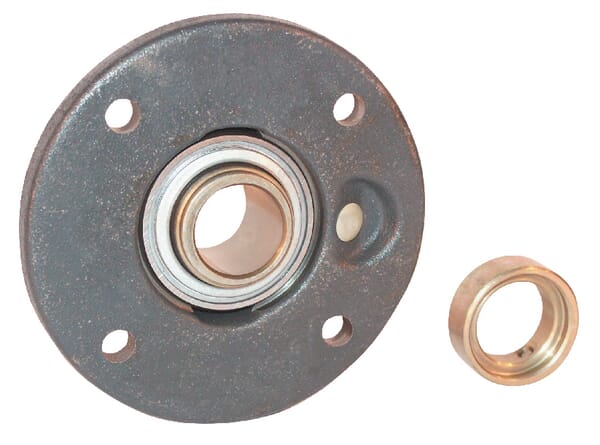

INA Housing unit RME RME55
£146.56 excl.
£175.87 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000279843

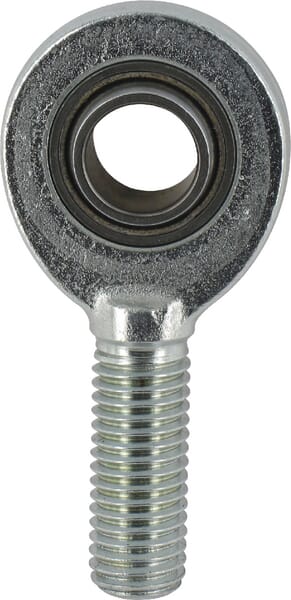

INA Rod head GAR6UKINA
£29.56 excl.
£35.47 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000312548

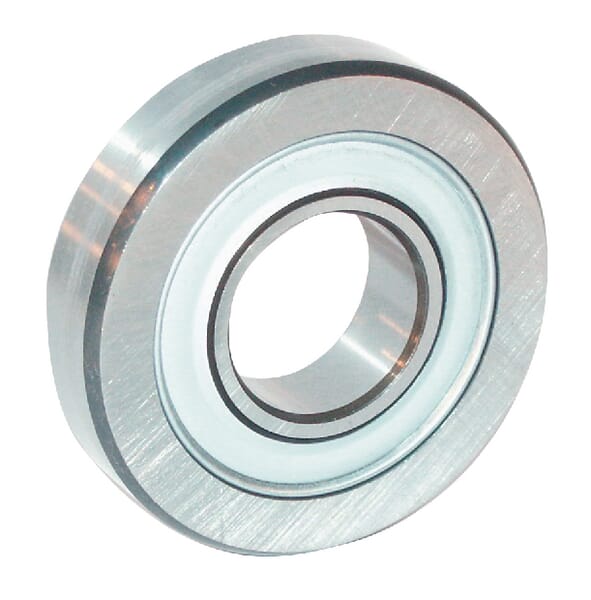

INA Track roller bearing LR2092RSR
£132.03 excl.
£158.44 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000346299

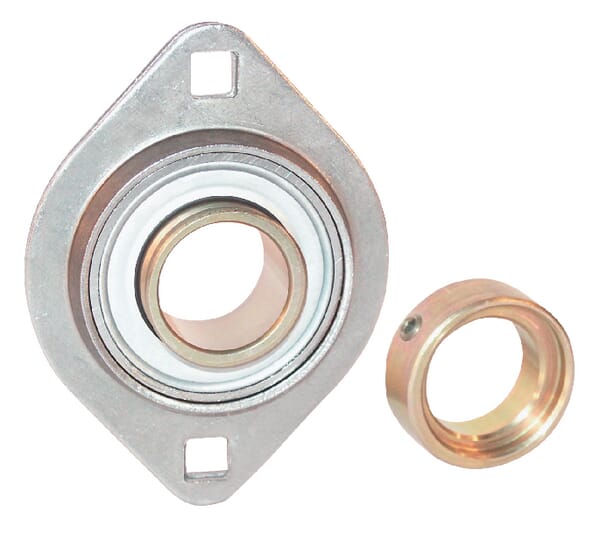

INA Housing unit RAT RAT40
