£132.82
excl. VAT
£159.38 incl. VAT
£159.38
incl. VAT
£132.82 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| Ball centre to end distance | 15.9 mm |
| Ball centre to grease hole distance | 5 mm |
| Basic radial load dynamic | 18700 N |
| Basic radial load static | 10700 N |
| Benefits | Rust-resistant |
| Consists of | Clamp bearing, 2 adjusting screws |
| Details | Made entirely of stainless steel |
| Inner ring width | 38.1 mm |
| Inside diameter | 30 mm |
| Locking screw centre to end distance | 6 mm |
| Long description | Ball bearing inserts inox INA/FAG, series GYE..KRRBVAFA |
| Manufacturer | Schaeffler |
| Material | Stainless steel |
| Original number equivalent | GYE30-KRR-B-VA-HLA |
| Outer ring width | 19 mm |
| Outside diameter | 62 mm |
| Outside diameter of inner ring | 40.31 mm |
| Properties | Inner ring extended on both sides with adjusting screws, Convex outer ring with lubricating holes, R seal, Stainless steel cage |
| Sealing width | 17 mm |
| Technical info | Addition to FA107: bearing with lubrication openings on the mounting side |
| Unit | Each |
| Weight | 0.3 kg |
| Wrench/spanner size | 3.0 mm |
Logistics
| EAN | 4047643203104 |
|---|---|
| Unit of measure | EA |
| Weight | 313 g |
| Dimensions | 66 × 66 × 40 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000283091

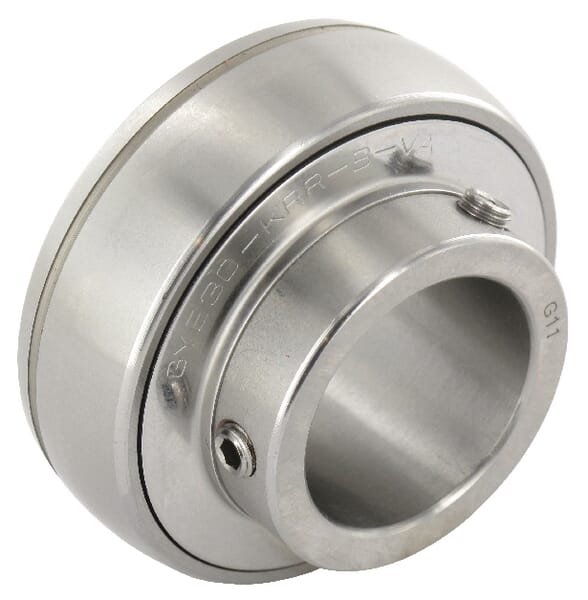

INA Bearing insert 30x62x19mm INA/FAG GYE30KRRBFA107V
£130.73 excl.
£156.88 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000281044

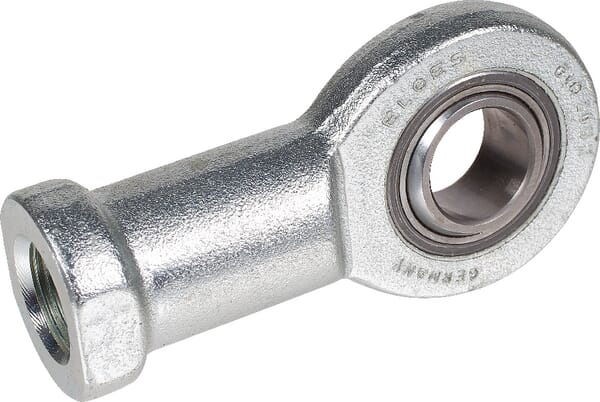

INA Rod head GIR12UKINA
£41.57 excl.
£49.88 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000352596
INA Housing unit RTUEY30XL
£71.39 excl.
£85.67 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000296065

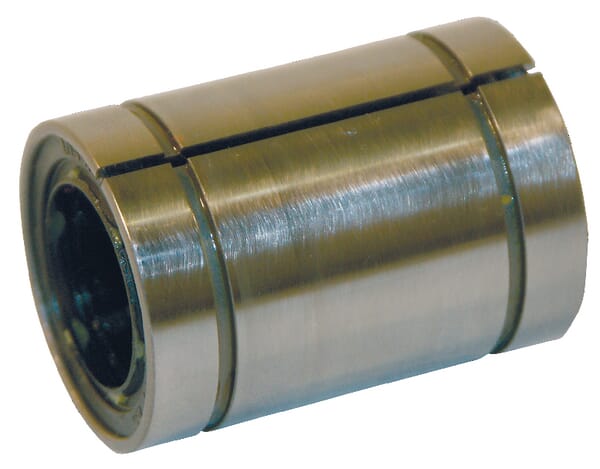

INA Linear ball bearing KBS2558PP
£123.30 excl.
£147.96 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000354989

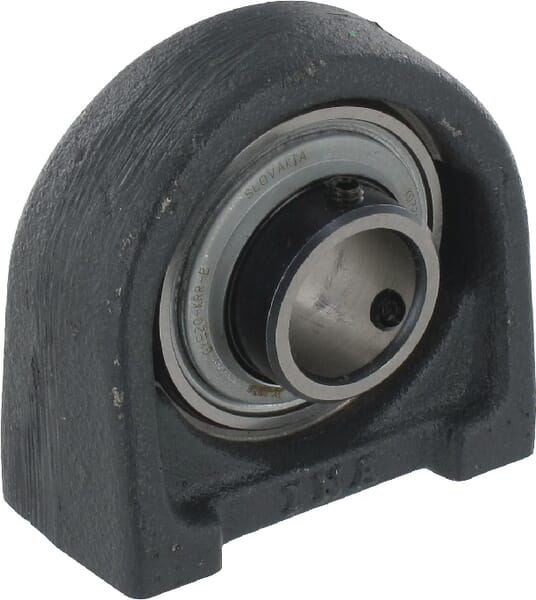

INA Bearing block stationary, complete RSHEY50N
£99.13 excl.
£118.96 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000297753

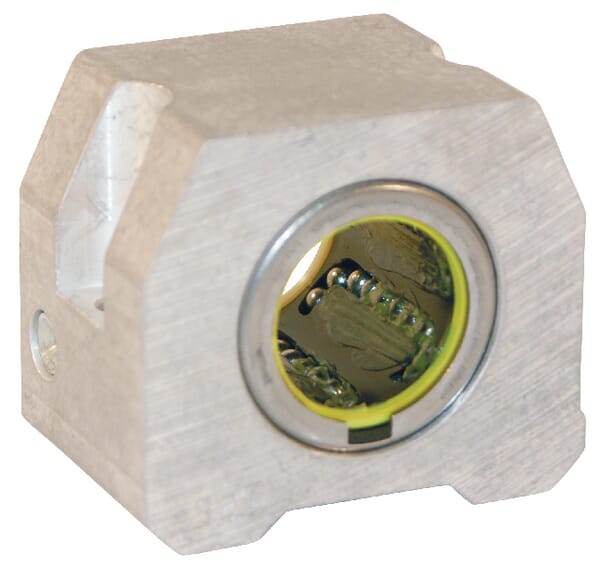

INA Linear ball bearing unit KGHK16BPPAS
