£62.83
excl. VAT
£75.40 incl. VAT
£75.40
incl. VAT
£62.83 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| Ball centre to end distance | 18.8 mm |
| Ball centre to grease hole distance | 5.6 mm |
| Basic radial load dynamic | 27500 N |
| Basic radial load static | 15300 N |
| Consists of | Clamp bearing, Clamp ring |
| Inner ring width | 37.7 mm |
| Inside diameter | 35 mm |
| Locking collar and inner ring width | 51.3 mm |
| Locking collar outside diameter | 51 mm |
| Manufacturer | Schaeffler |
| Original number equivalent | GE35-KRR-B-FA125.5 |
| Outer ring width | 19 mm |
| Outside diameter | 72 mm |
| Outside diameter of inner ring | 60.3 mm |
| Properties | Extended inner ring with clamp ring on both sides, Convex outer ring with lubricating holes, R seal, Polyamide housing |
| Sealing diameter | 60.3 mm |
| Sealing width | 22.5 mm |
| Technical info | Supplement FA: rust-proof Corrotect design |
| Unit | Each |
| Weight | 0.55 kg |
| Wrench/spanner size | 5.0 mm |
Logistics
| EAN | 4012802812763 |
|---|---|
| Unit of measure | EA |
| Weight | 595 g |
| Dimensions | 77 × 74 × 55 mm |
| Dangerous goods | No |
You might also like

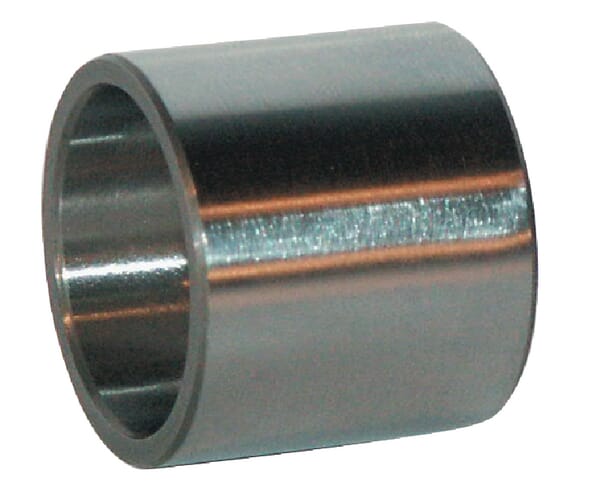

BPA000312564
INA Inner ring LR LR3035205
£12.79 excl.
£15.35 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000344308

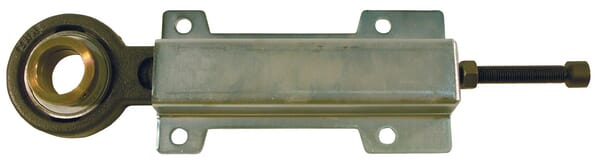

INA Housing unit PHUSE PHUSE40
£155.58 excl.
£186.70 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000338036

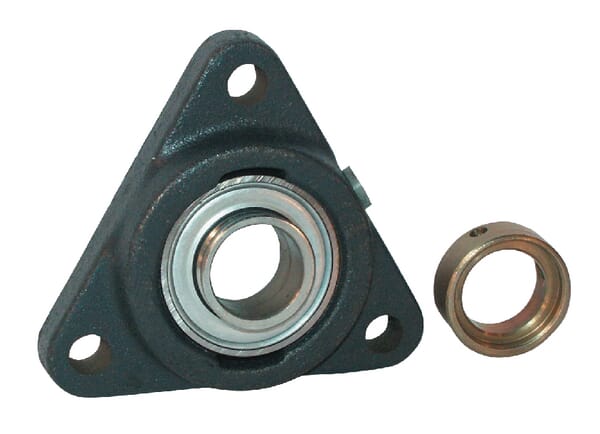

INA Housing unit PCFTR PCFTR45
£122.86 excl.
£147.43 incl.
In stock
Expected to ship on Monday 21 September

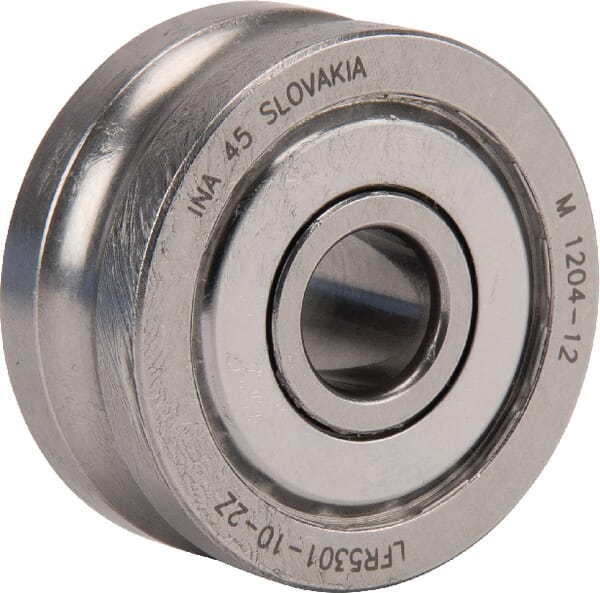

BPA000310468
INA Track roller bearing LFR5301102Z
£67.59 excl.
£81.11 incl.
Backorder available
Usually ships within 3–8 weeks

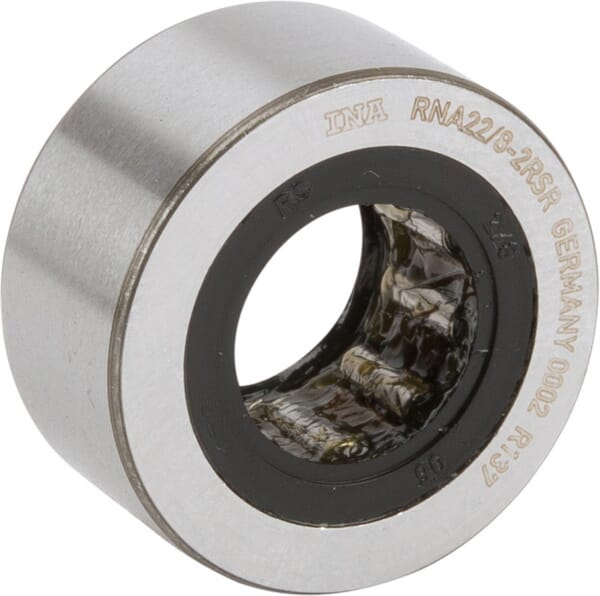

BPA000349631
INA Track roller bearing RNA2200X2RSR
£47.67 excl.
£57.20 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000310774

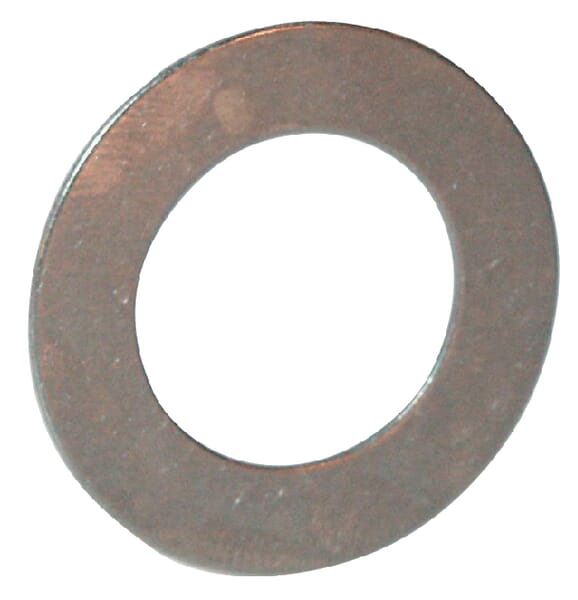

INA Axial washer LS85110
£54.29 excl.
£65.15 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
Free shipping

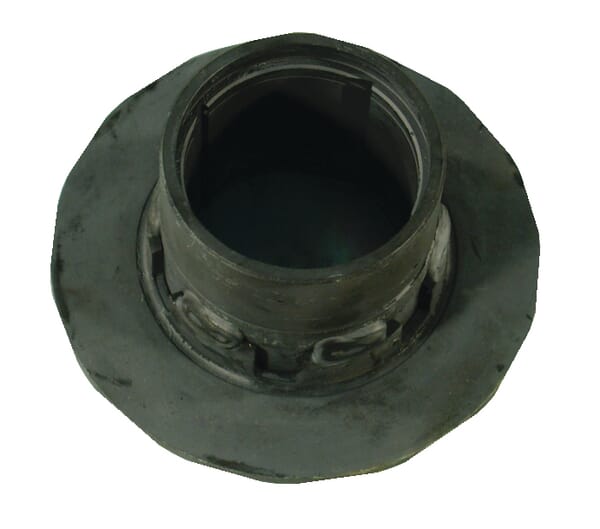

BPA000145556
