£38.23
excl. VAT
£45.88 incl. VAT
£45.88
incl. VAT
£38.23 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|

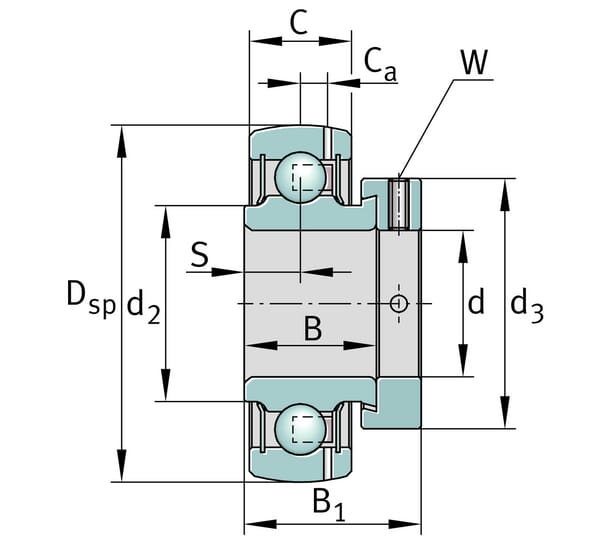

| Ball centre to end distance | 9.5 mm |
| Ball centre to grease hole distance | 5.6 mm |
| Basic radial load dynamic | 25500 N |
| Basic radial load static | 15300 N |
| Consists of | Clamp bearing, Clamp ring |
| Inner ring width | 25.4 mm |
| Inside diameter | 35 mm |
| Locking collar and inner ring width | 39 mm |
| Locking collar outside diameter | 51 mm |

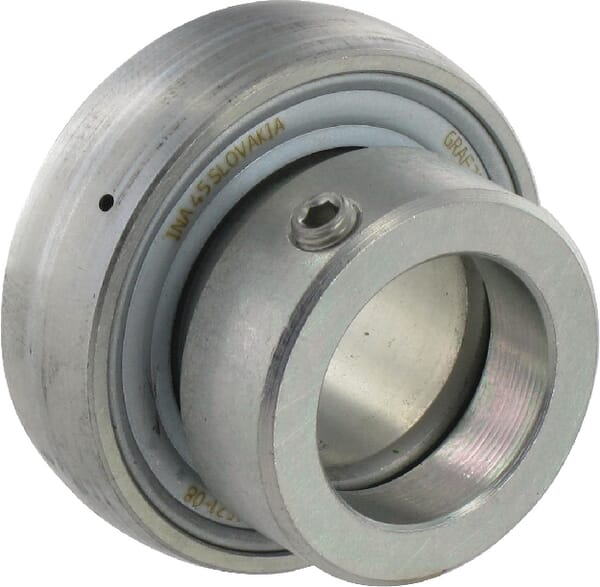

| Long description | Ball bearing inserts INA/FAG, series GRAE..NPPB |
| Manufacturer | Schaeffler |
| Original number equivalent | GRAE35-NPP-B-FA107/125.5 |
| Outer ring width | 19 mm |
| Outside diameter | 72 mm |
| Outside diameter of inner ring | 44.6 mm |
| Properties | One-sided extended inner ring with clamp ring, Convex outer ring with lubricating holes, P seal, Polyamide housing |
| Unit | Each |
| Wrench/spanner size | 5.0 mm |
Logistics
| EAN | 4012802812268 |
|---|---|
| Unit of measure | EA |
| Weight | 508 g |
| Dimensions | 76 × 76 × 40 mm |
| Dangerous goods | No |
You might also like
BPA000286906
INA Bearing insert 35x72x19mm INA/FAG GRAE35NPPBFA1255
£51.04 excl.
£61.25 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000292154

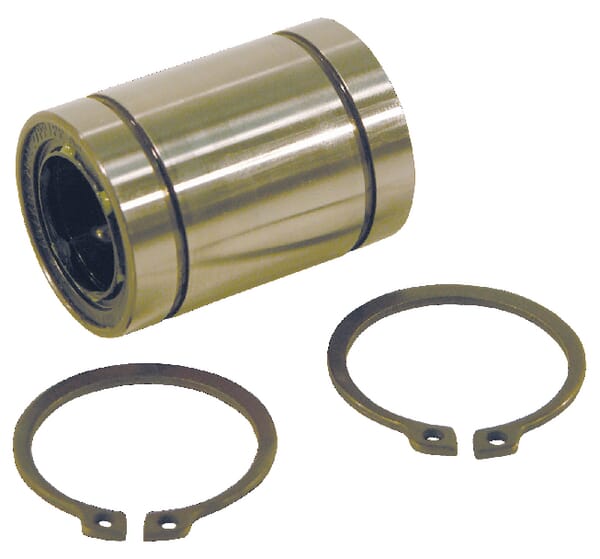

INA Linear ball bearing KB2558PP
£111.41 excl.
£133.69 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000150676
INA Deep groove ball bearing 140x175x18mm INA/FAG 61828HLU
£214.66 excl.
£257.59 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000291988

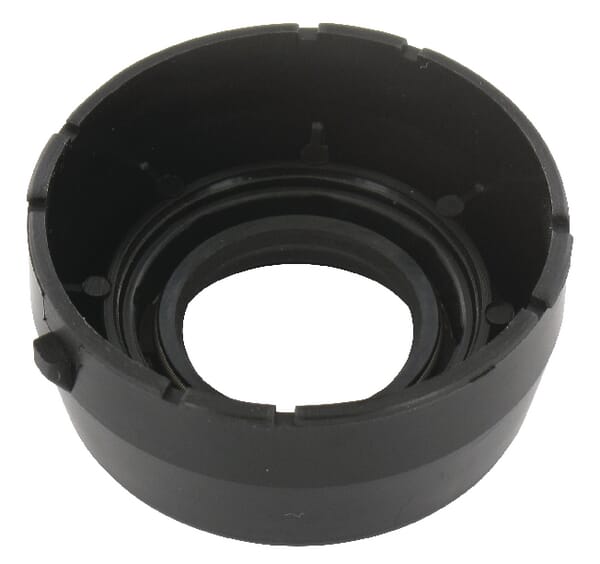

INA End cover KASK06SRNBRHLA
£10.59 excl.
£12.71 incl.
In stock
Expected to ship on Monday 21 September
BPA000280433

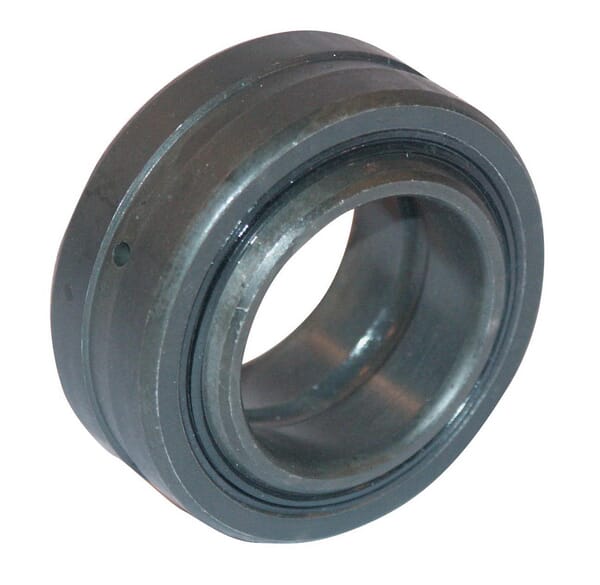

INA Radial spherical plain bearing 17x30x14/10mm GE17DOINA
£13.42 excl.
£16.10 incl.
In stock
Expected to ship on Friday 18 September
BPA000346265

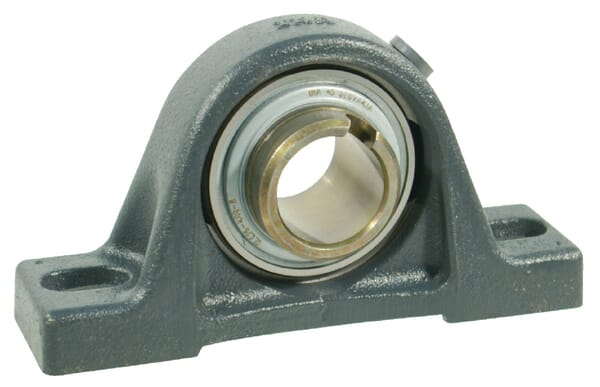

INA Housing unit RASEL RASEL25
