£74.96
excl. VAT
£89.95 incl. VAT
£89.95
incl. VAT
£74.96 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| Ball centre to end distance | 21.4 mm |
| Basic radial load dynamic | 32500 N |
| Basic radial load static | 20400 N |

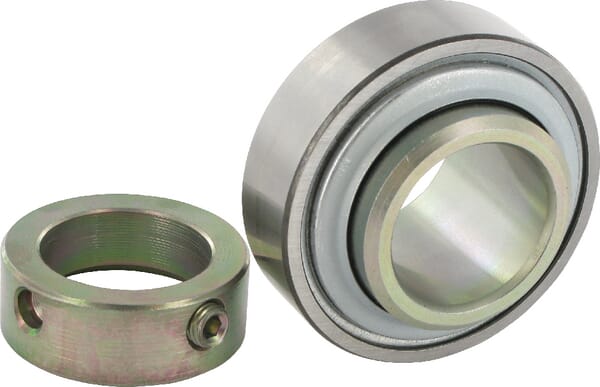

| Consists of | Clamp bearing, Clamp ring |
| Inner ring width | 42.9 mm |
| Inside diameter | 45 mm |
| Locking collar and inner ring width | 56.5 mm |
| Locking collar outside diameter | 63 mm |

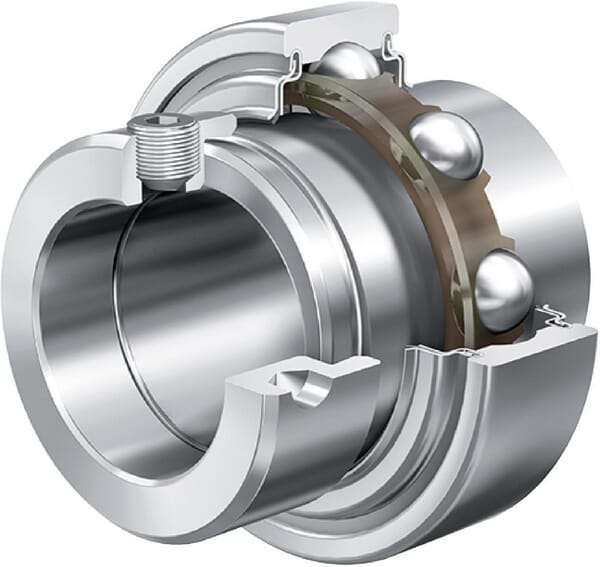

| Long description | Ball bearing inserts INA/FAG, series E..KRR |
| Manufacturer | Schaeffler |
| Original number equivalent | E45-KRR |
| Outer ring width | 22 mm |
| Outside diameter | 85 mm |
| Outside diameter of inner ring | 57.9 mm |
| Properties | Cylindrical outer ring with no lubrication holes, Inner ring extended on both sides with clamping ring, Sealed on both sides, Polyamide housing |
| Sealing diameter | 72.3 mm |
| Sealing width | 26.4 mm |
| Unit | Each |
| Weight | 0.85 kg |
| Wrench/spanner size | 5.0 mm |
Logistics
| EAN | 40128027825614064327885036 |
|---|---|
| Unit of measure | EA |
| Weight | 843 g |
| Dimensions | 111 × 106 × 66 mm |
| Dangerous goods | No |
You might also like
BPA000347053
INA Housing unit RCJT35XLNFA125
£83.76 excl.
£100.51 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000312527
INA Inner ring LR LR1720165
£9.68 excl.
£11.62 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000324586
INA Needle roller bearing NKS28XL
£49.71 excl.
£59.65 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000337833
INA Housing unit PBS PBS30
£58.11 excl.
£69.73 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000301545

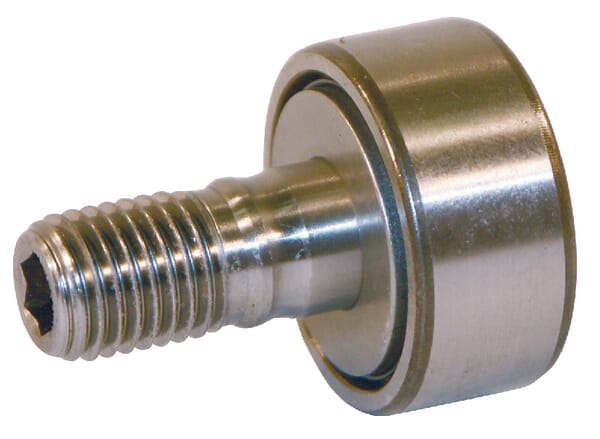

INA Stud type track roller KR16PPA
