£89.81
excl. VAT
£107.77 incl. VAT
£107.77
incl. VAT
£89.81 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| Ball centre to end distance | 21.4 mm |
| Ball centre to grease hole distance | 6.4 mm |
| Basic radial load dynamic | 32500 N |
| Basic radial load static | 20400 N |
| Consists of | Clamp bearing, Clamp ring |
| Inner ring width | 42.9 mm |
| Inside diameter | 45 mm |
| Locking collar and inner ring width | 56.5 mm |
| Locking collar outside diameter | 63 mm |

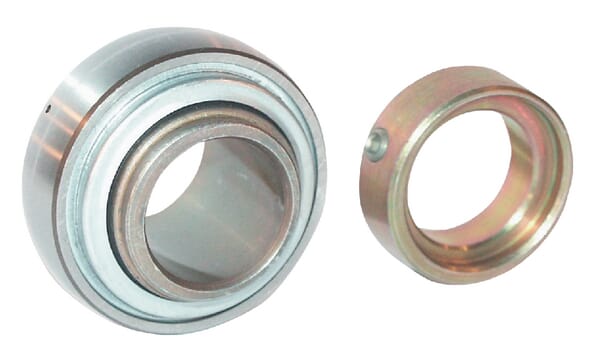

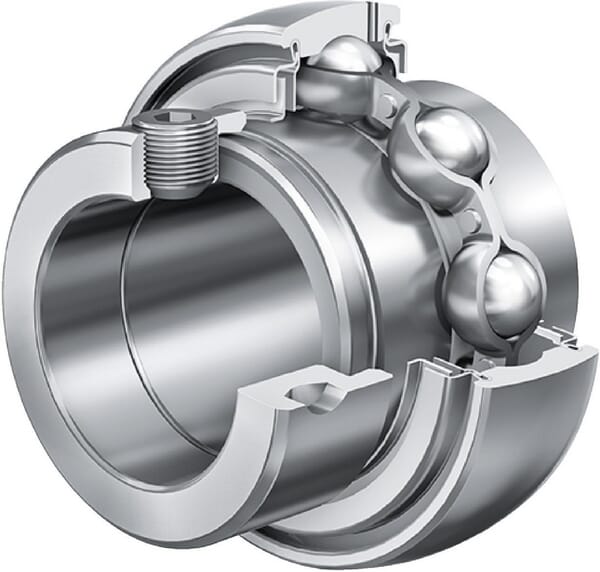

| Long description | Ball bearing inserts INA/FAG, series GE..KLLB |
| Manufacturer | Schaeffler |
| Max working temperature | 180 °C |
| Min working temperature | -40 °C |
| Original number equivalent | GE45-KLL-B |
| Outer ring width | 22 mm |
| Outside diameter | 85 mm |
| Outside diameter of inner ring | 57.9 mm |
| Properties | Extended inner ring with clamp ring on both sides, Convex outer ring with lubricating holes, Labyrinth seal, Steel cage |
| Sealing diameter | 72.3 mm |
| Sealing width | 26.4 mm |
| Unit | Each |
| Weight | 0.84 kg |
| Wrench/spanner size | 5.0 mm |
Logistics
| EAN | 40128027999104064327885470 |
|---|---|
| Unit of measure | EA |
| Weight | 844 g |
| Dimensions | 105 × 106 × 62 mm |
| Dangerous goods | No |
You might also like
BPA000325442

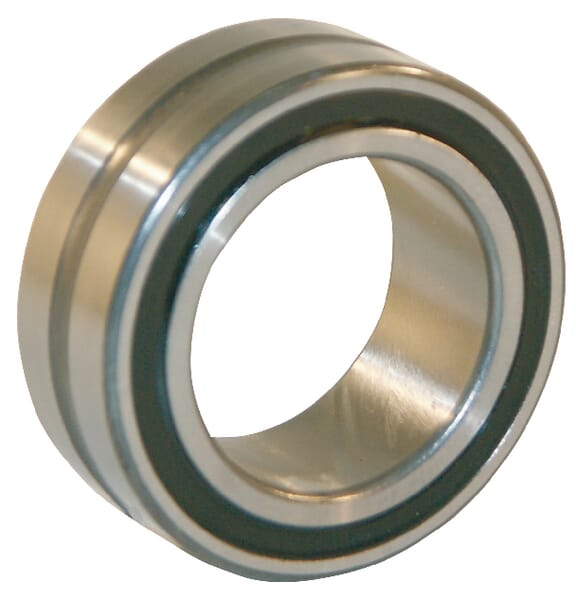

INA Needle roller bearing NKI2820TVXL
£40.77 excl.
£48.92 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000305979
INA Track roller KRV52PPA
£153.35 excl.
£184.02 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000349092

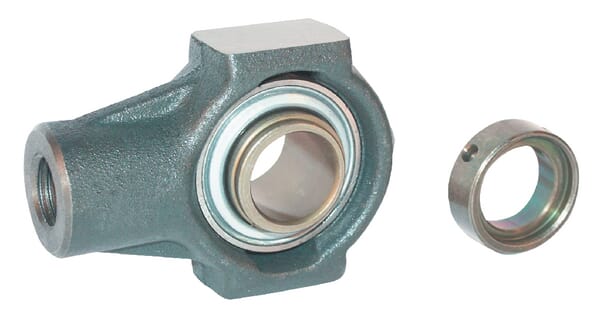

INA Housing unit RHE RHE40
£111.23 excl.
£133.48 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000346056

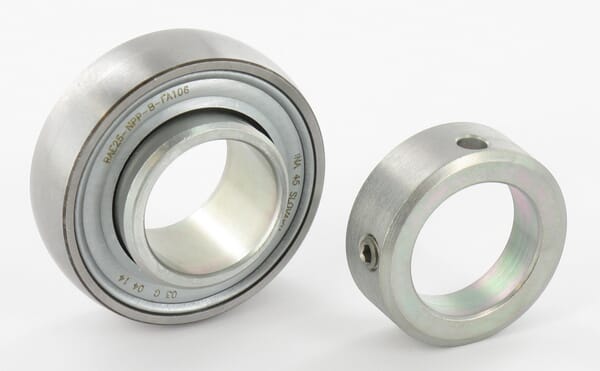

INA Clamp bearing RAE25NPPBFA106
£37.06 excl.
£44.47 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000280628

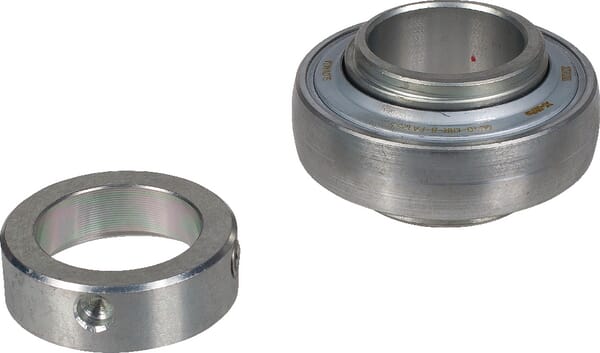

INA Bearing insert 50x90x22mm INA/FAG GE50XLKRRBFA1255
£75.08 excl.
£90.10 incl.
In stock
Expected to ship on Friday 18 September
BPA000286055

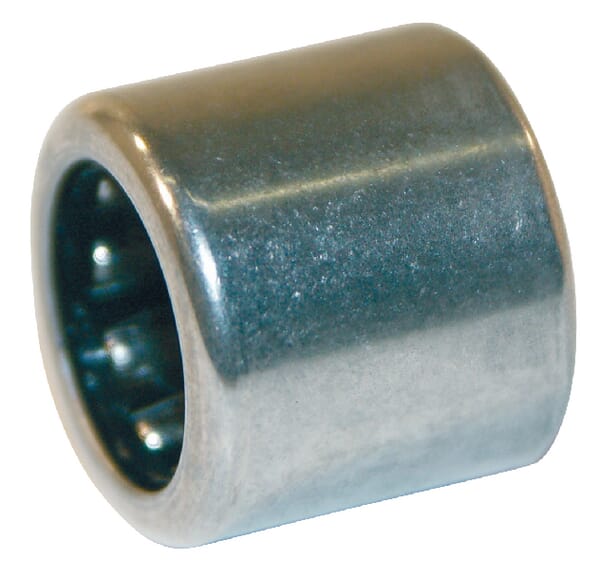

INA Needle clutch bearing 20x26x16mm INA/FAG HF2016
