£77.91
excl. VAT
£93.49 incl. VAT
£93.49
incl. VAT
£77.91 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| Ball centre to end distance | 17.4 mm |
| Ball centre to grease hole distance | 6.4 mm |
| Basic radial load dynamic | 32500 N |
| Basic radial load static | 20400 N |
| Inner ring width | 42.9 mm |
| Inside diameter | 45 mm |

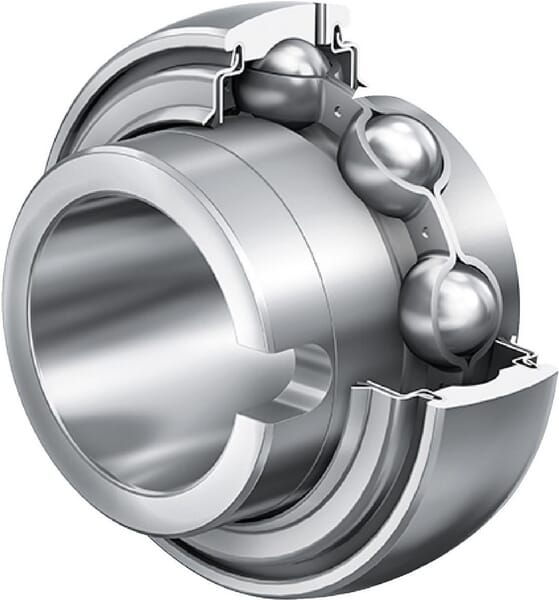

| Long description | Ball bearing inserts INA/FAG, series GLE..KRRB |
| Manufacturer | Schaeffler |
| Max working temperature | 150 °C |
| Min working temperature | -40 °C |
| Original number equivalent | GLE45-XL-KRR-B |
| Outer ring width | 22 mm |
| Outside diameter | 85 mm |
| Outside diameter of inner ring | 57.9 mm |
| Properties | Extended inner ring with indentation on both sides, Convex outer ring with lubricating holes, R seal with Teflon sealing lips, Inner ring up to wheel spindle 60mm in Corrotect design |
| Sealing diameter | 72.3 mm |
| Sealing width | 26.4 mm |
| Unit | Each |
| Weight | 0.64 kg |
Logistics
| EAN | 40128027995524064327885517 |
|---|---|
| Unit of measure | EA |
| Weight | 662 g |
| Dimensions | 90 × 88 × 52 mm |
| Dangerous goods | No |
You might also like
BPA000286461
INA Cupped needle roller bearing HK22202RS
£14.24 excl.
£17.09 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000342735

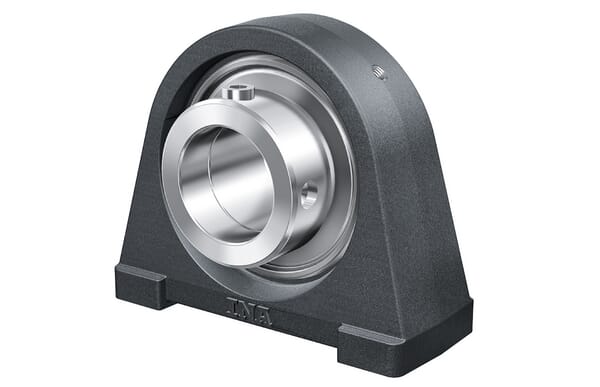

INA Housing unit PSHEY17XL
£52.39 excl.
£62.87 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340823

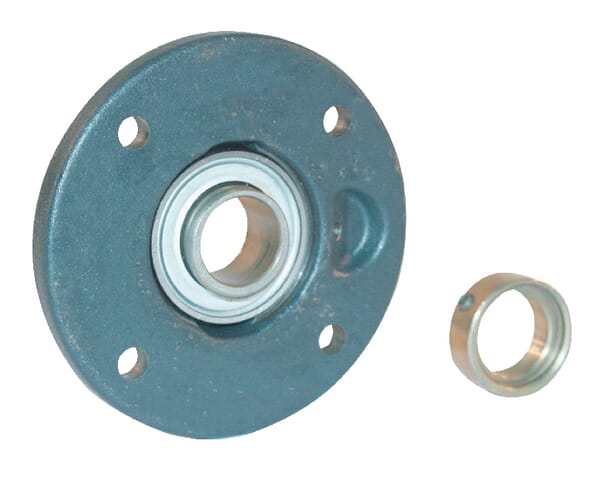

INA Housing unit PME PME20
£56.21 excl.
£67.45 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000349640
INA Track roller bearing RNA22082RSR
£146.46 excl.
£175.75 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000324594

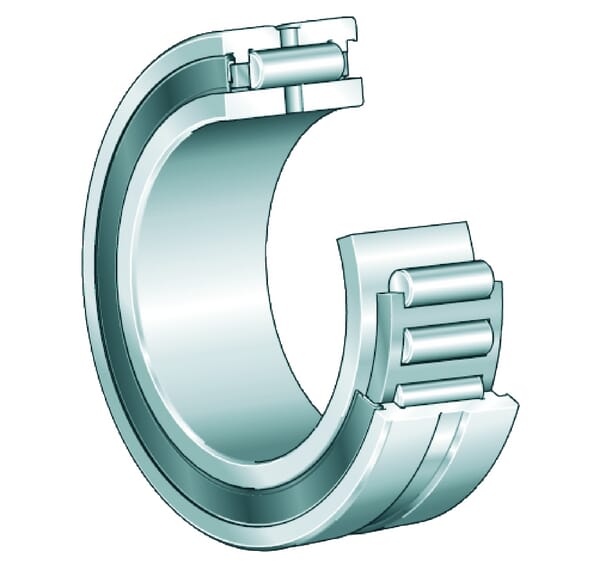

INA Needle roller bearing NA4904RSRXL
£56.16 excl.
£67.39 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000252092

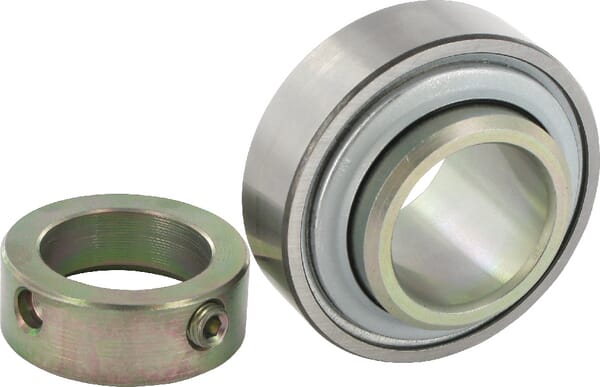

INA Bearing insert 30x62x36.51mm INA/FAG E30KRR
