Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| B1Locking collar and inner ring width | 43.8 mm |
| Ball centre to end distance | 11 mm |
| Ball centre to grease hole distance | 6.4 mm |
| Basic radial load dynamic | 32500 N |
| Basic radial load static | 20400 N |
| Consists of | Clamp bearing, Clamp ring |
| dInside diameter | 45 mm |
| DspOutside diameter | 85 mm |
| Inner ring width | 30.2 mm |
| Locking collar outside diameter | 63 mm |

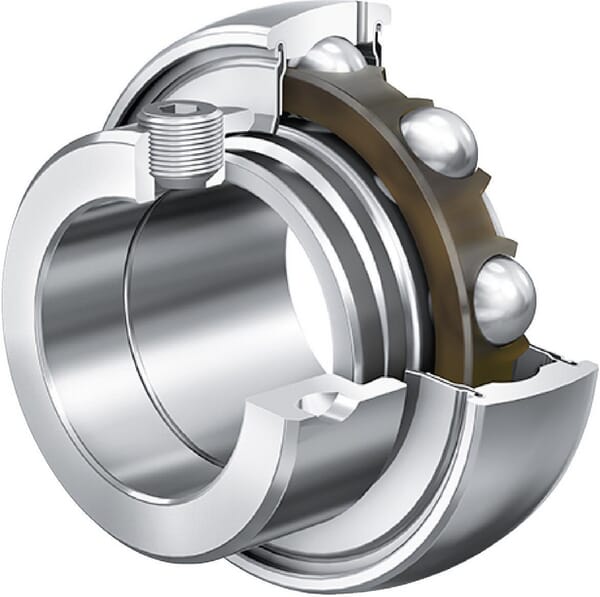

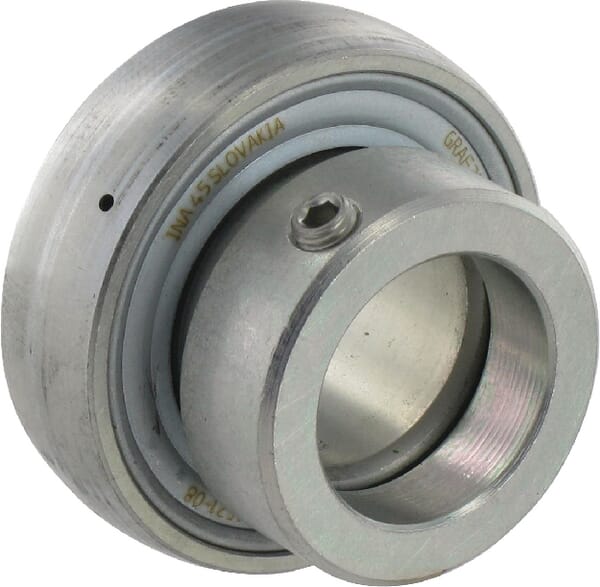

| Long description | Ball bearing inserts INA/FAG, series GRAE..NPPB |
| Manufacturer | Schaeffler |
| Original number equivalent | GRAE45-NPP-B-FA125.5 |
| Outer ring width | 22 mm |
| Outside diameter of inner ring | 54.3 mm |
| Properties | One-sided extended inner ring with clamp ring, Convex outer ring with lubricating holes, P seal, Polyamide housing |
| Unit | Each |
| Weight | 0.69 kg |
| Wrench/spanner size | 5.0 mm |
Logistics
| EAN | 40128028129544064327886927 |
|---|---|
| Unit of measure | EA |
| Weight | 676 g |
| Dimensions | 90 × 90 × 50 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000338036

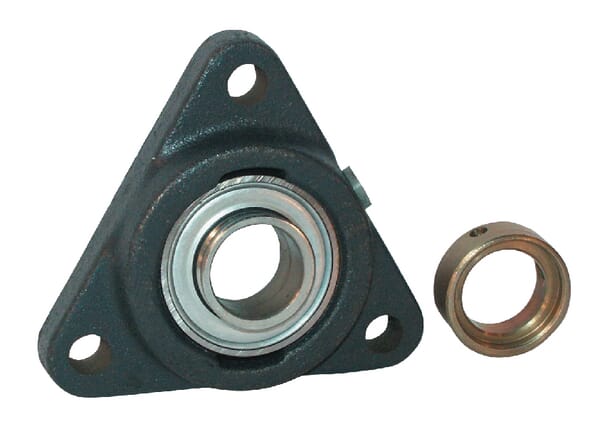

INA Housing unit PCFTR PCFTR45
£122.86 excl.
£147.43 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000325458

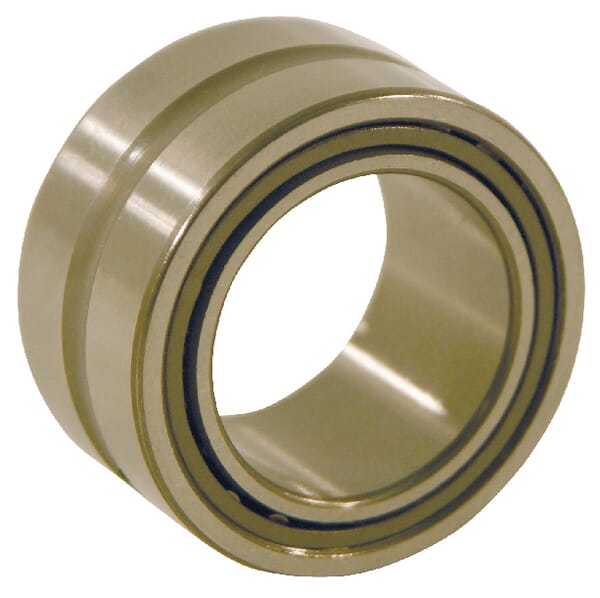

INA Needle roller with inner ring NKI5035
£100.46 excl.
£120.55 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000286398
INA Cup needle roller bearing HK1312AS1B
£11.04 excl.
£13.25 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000281013

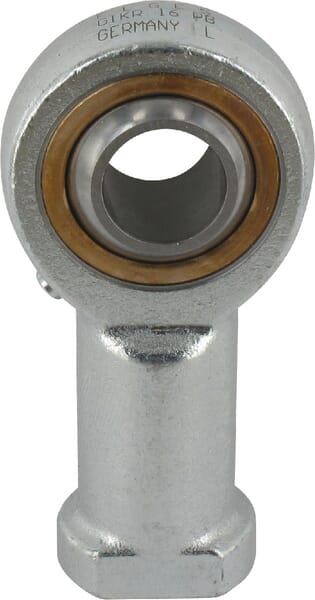

INA Rod head GIKR8PBAINA
