Product details
| Ball centre to end distance | 19 mm |
|---|---|
| Ball centre to grease hole distance | 6.9 mm |
| Basic radial load dynamic | 37500 N |
| Basic radial load static | 23200 N |
| Inner ring width | 51.6 mm |
| Inside diameter | 45 mm |
| Locking screw centre to end distance | 8.5 mm |
| Manufacturer | Schaeffler |
| Outer ring width | 22 mm |
| Outside diameter | 90 mm |
| Outside diameter of inner ring | 62.9 mm |

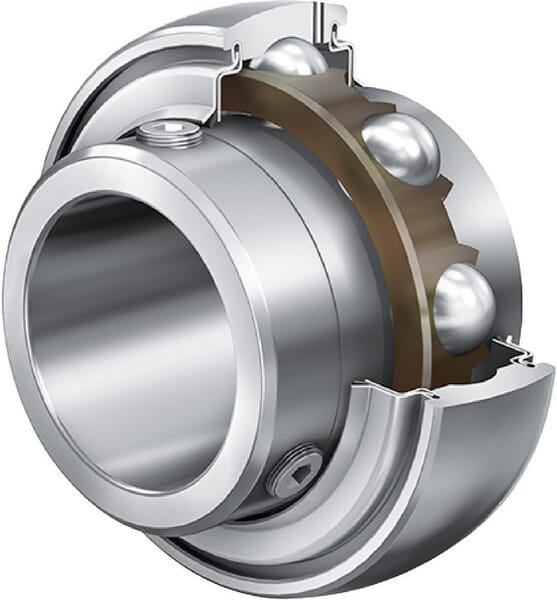

| Product details | Both sides: extended inner ring with adjusting screws, Convex outer ring with lubricating holes, R seal, Polyamide housing |
| Sealing diameter | 77.3 mm |
| Sealing width | 26.4 mm |
| Unit | Each |
| Weight | 0.9 kg |
| Wrench/spanner size | 4.0 mm |
Logistics
| EAN | 40128028162424064327886842 |
|---|---|
| Unit of measure | EA |
| Weight | 938 g |
| Dimensions | 100 × 100 × 55 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000325394
INA Needle roller bearing NK9536XL
£218.24 excl.
£261.89 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000281016

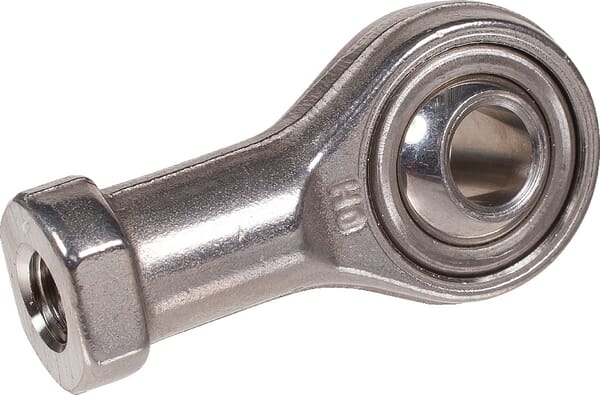

INA Rod end GIKSR10PSINA
£108.67 excl.
£130.40 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000280649

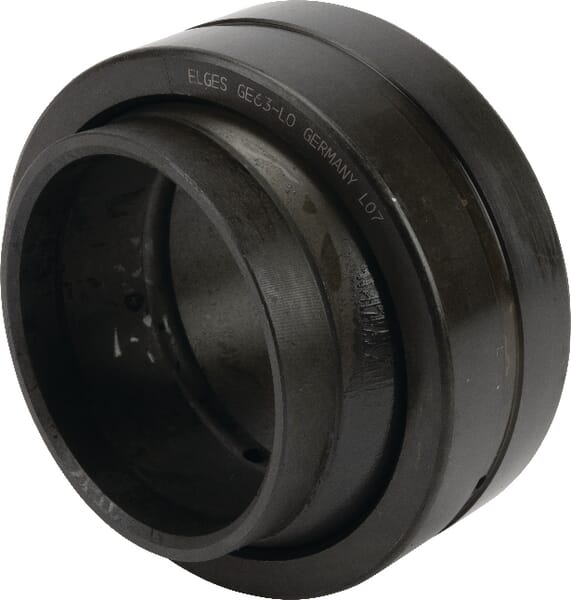

INA Radial spherical plain bearing 63x95x63/36mm GE63LOINA
£161.54 excl.
£193.85 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000346287

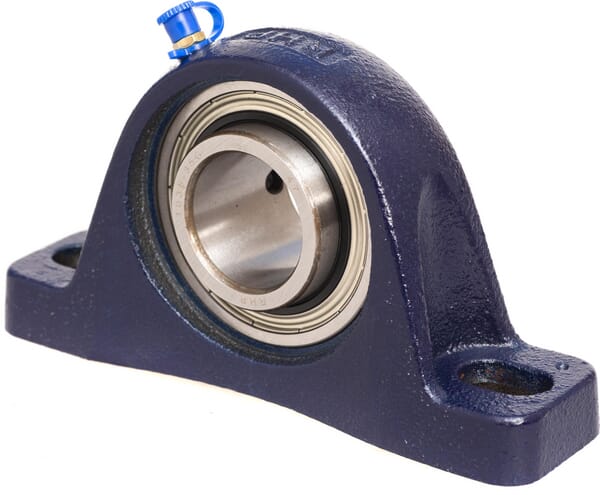

INA Housing unit RASEY RASEY70
£264.00 excl.
£316.80 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000287113

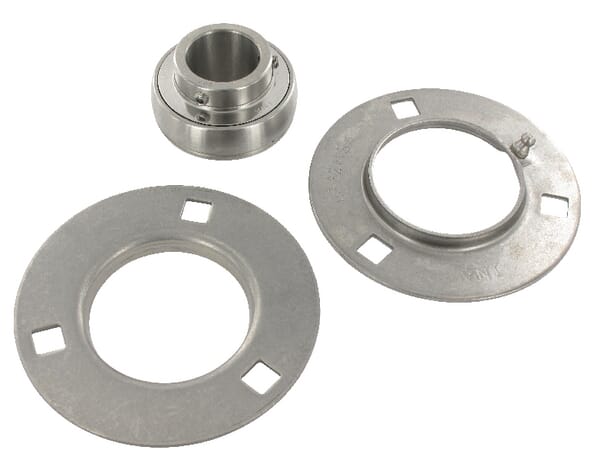

INA Housing unit GRRY stainless steel GRRY30VA
