£181.52
excl. VAT
£217.82 incl. VAT
£217.82
incl. VAT
£181.52 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

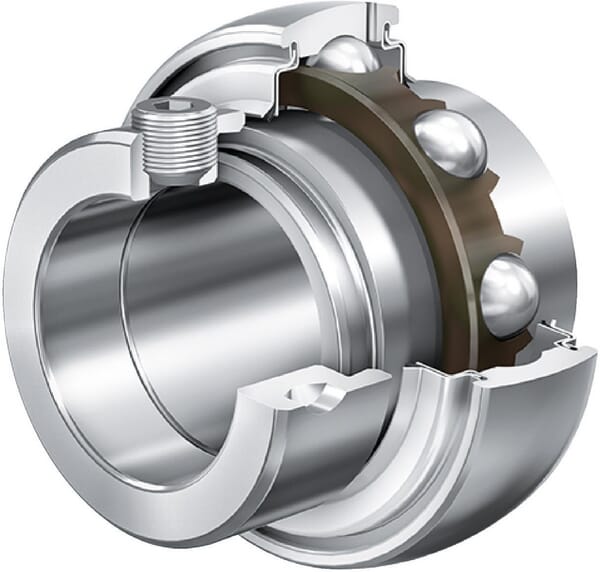

Product details
| Ball centre to end distance | 24.6 mm |
|---|---|
| Ball centre to grease hole distance | 9.1 mm |
| Basic radial load dynamic | 62000 N |
| Basic radial load static | 38000 N |
| Includes | Clamp bearing, Clamp ring |
| Inner ring width | 49.2 mm |
| Inside diameter | 50 mm |
| Locking collar and inner ring width | 66.7 mm |
| Locking collar outside diameter | 75.8 mm |
| Manufacturer | Schaeffler |
| Original number equivalent | GNE50-KRR-B |
| Outer ring width | 29 mm |
| Outside diameter | 110 mm |
| Outside diameter of inner ring | 68.8 mm |
| Product details | Extended inner ring with clamp ring on both sides, Convex outer ring with lubricating holes, R seal, Polyamide housing |
| Sealing diameter | 92.7 mm |
| Sealing width | 31 mm |
| Unit | Each |
| Weight | 1.82 kg |
| Wrench/spanner size | 5.0 mm |
Logistics
| EAN | 40128028036484064327795168 |
|---|---|
| Unit of measure | EA |
| Weight | 1872 g |
| Dimensions | 185 × 140 × 90 mm |
| Dangerous goods | No |
You might also like
BPA000280851

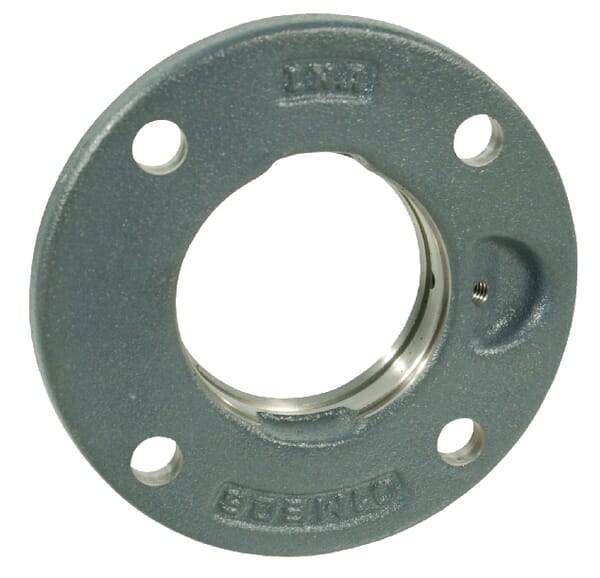

INA Bearing cover for Type PME/RME 25 GGME05INA
£28.77 excl.
£34.52 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000399945

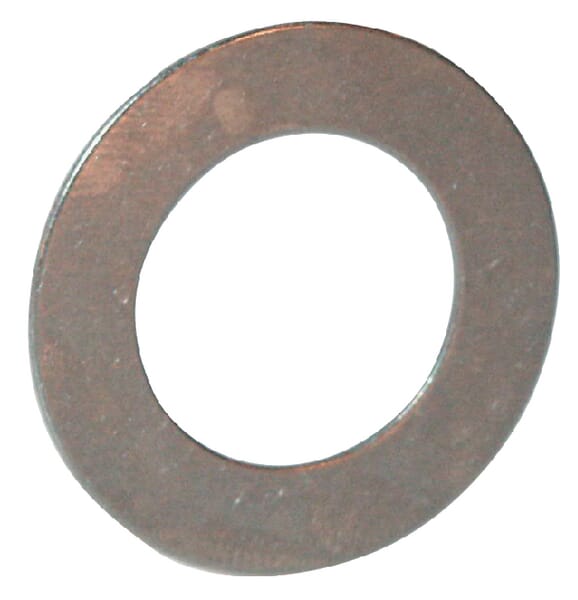

INA Axial washer WS81108INA
£22.44 excl.
£26.93 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000273629

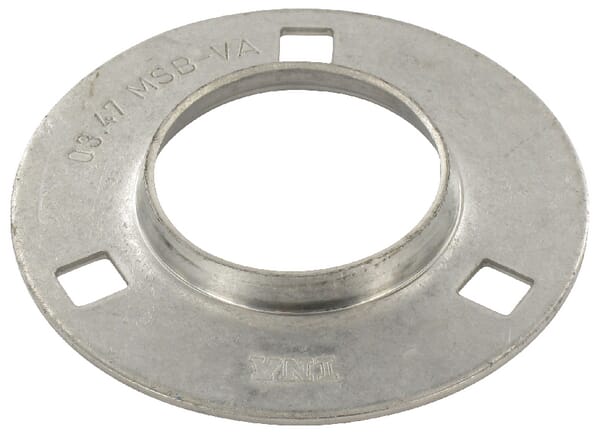

INA Plate steel bearing half MSB FLAN47MSBVA
£17.37 excl.
£20.84 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000279754
INA Rod head GAKR8PBAINA
£30.91 excl.
£37.09 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000325380
INA Needle roller bearing NK8035XL
£151.17 excl.
£181.40 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000343244

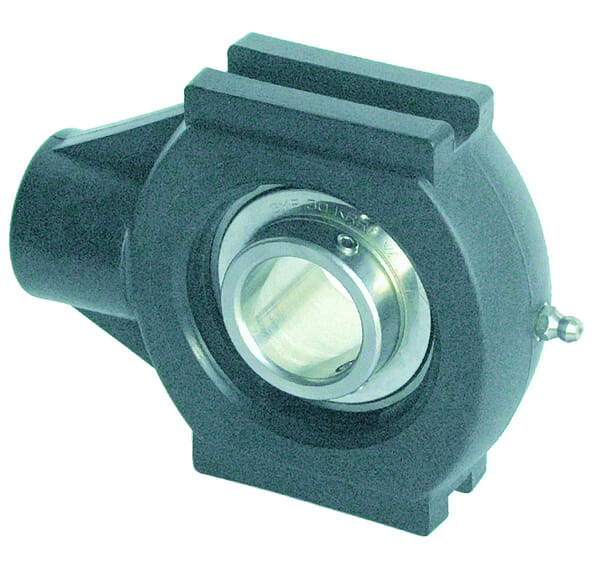

INA Housing unit PTUE40TVFA1255
