£114.60
excl. VAT
£137.52 incl. VAT
£137.52
incl. VAT
£114.60 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| Ball centre to end distance | 31 mm |
| Basic radial load dynamic | 52000 N |
| Basic radial load static | 36000 N |
| Consists of | Clamp bearing, Clamp ring |
| Inner ring width | 77.9 mm |
| Inside diameter | 60 mm |
| Locking collar and inner ring width | 77.9 mm |
| Locking collar outside diameter | 84 mm |
| Locking collar width | 77.9 mm |

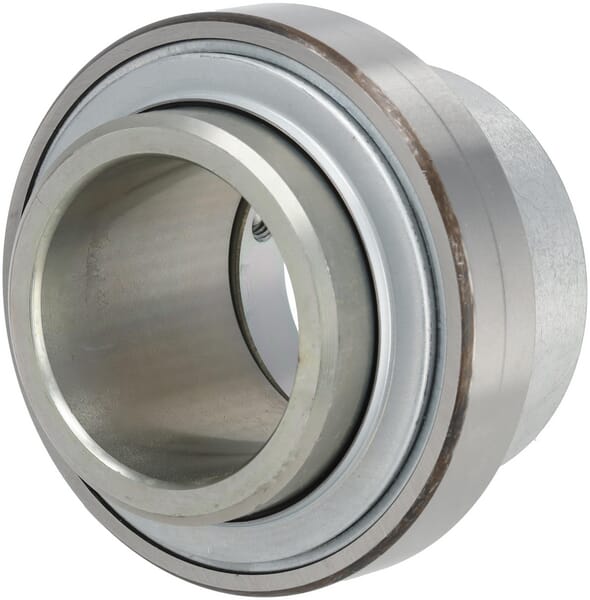

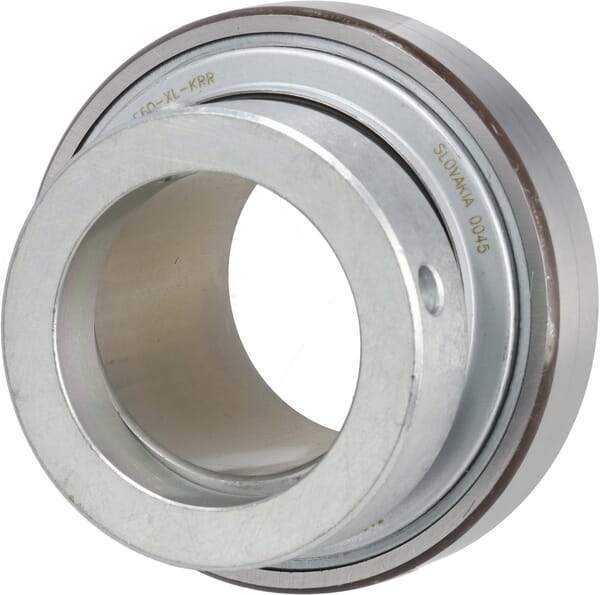

| Long description | Ball bearing inserts INA/FAG, series E..KRR |
| Manufacturer | Schaeffler |
| Original number equivalent | E60-XL-KRR |
| Outer ring width | 24 mm |
| Outside diameter | 110 mm |
| Outside diameter of inner ring | 76.5 mm |
| Properties | Cylindrical outer ring with no lubrication holes, Inner ring extended on both sides with clamping ring, Sealed on both sides, Polyamide housing |
| Sealing diameter | 94.5 mm |
| Sealing width | 29 mm |
| Unit | Each |
| Weight | 1.82 kg |
| Wrench/spanner size | 5.0 mm |
Logistics
| EAN | 40128027840844064327884794 |
|---|---|
| Unit of measure | EA |
| Weight | 1827 g |
| Dimensions | 155 × 155 × 80 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000281220
INA Bearing insert 70x125x28mm INA/FAG GLE70KRRB
£316.62 excl.
£379.94 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000325483
INA Needle roller with inner ring NKI912XL
£23.95 excl.
£28.74 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000355039

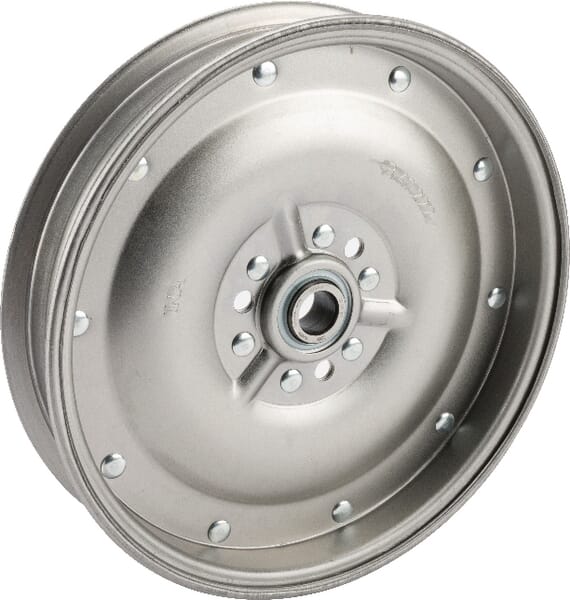

INA Tensioner pulley RSRB16222L0
£92.92 excl.
£111.50 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000349662
INA Needle bearing without inner ring RNA4904
£31.63 excl.
£37.96 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000297067

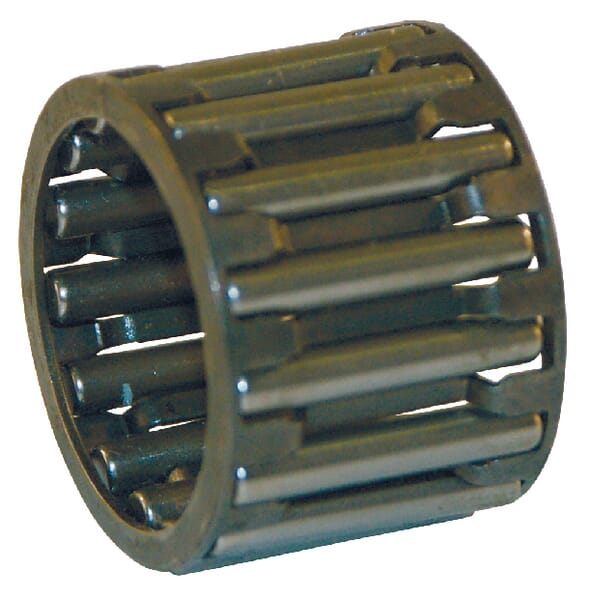

INA Thrust needle roller K223015TN
£14.72 excl.
£17.66 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000325349

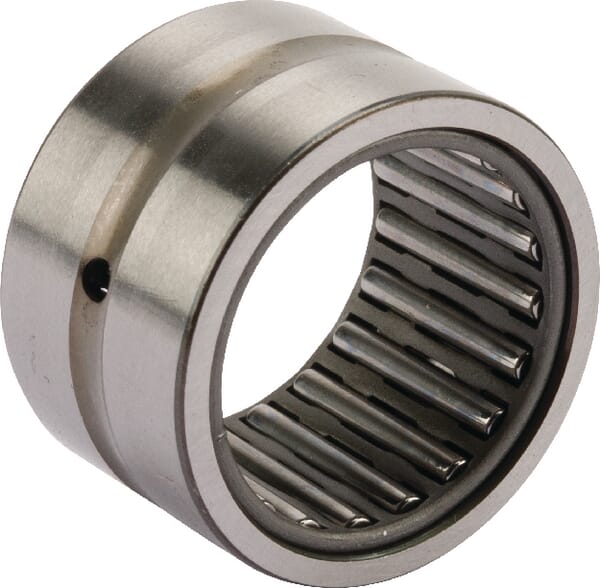

INA Needle roller massif type NK5025
