£382.52
excl. VAT
£459.02 incl. VAT
£459.02
incl. VAT
£382.52 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

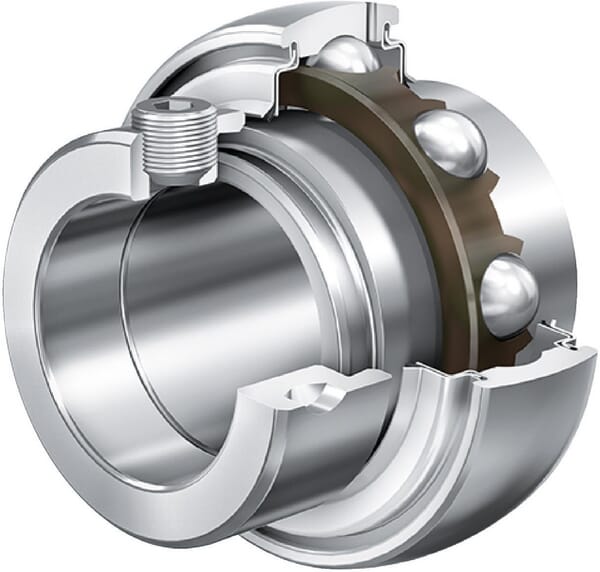

| Ball centre to end distance | 26 mm |
|---|---|
| Ball centre to grease hole distance | 12 mm |
| Basic radial load dynamic | 104000 N |
| Basic radial load static | 68000 N |
| Includes | Clamp bearing, Clamp ring |
| Inner ring width | 58 mm |
| Inside diameter | 70 mm |
| Locking collar and inner ring width | 75.5 mm |
| Locking collar outside diameter | 102 mm |
| Manufacturer | Schaeffler |
| Original number equivalent | GNE70-KRR-B |
| Outer ring width | 37 mm |
| Outside diameter | 150 mm |
| Outside diameter of inner ring | 92.2 mm |
| Product details | Extended inner ring with clamp ring on both sides, Convex outer ring with lubricating holes, R seal, Polyamide housing |
| Sealing diameter | 127 mm |
| Sealing width | 41 mm |
| Unit | Each |
| Weight | 3.81 kg |
| Wrench/spanner size | 6.0 mm |
Logistics
| EAN | 40128028035634064327886217 |
|---|---|
| Unit of measure | EA |
| Weight | 3706 g |
| Dimensions | 179 × 175 × 88 mm |
| Dangerous goods | No |
You might also like
BPA000338019

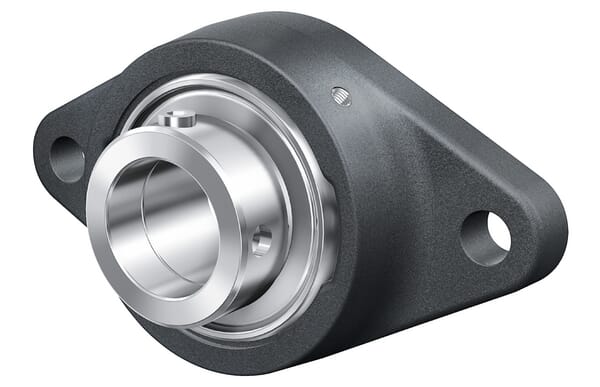

INA Housing unit PCFT12XL
£44.64 excl.
£53.57 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000286505

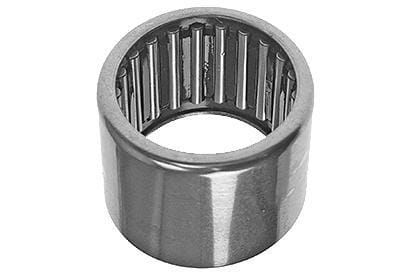

INA Cup needle roller bearing HK3026AS1
£16.33 excl.
£19.60 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000280550

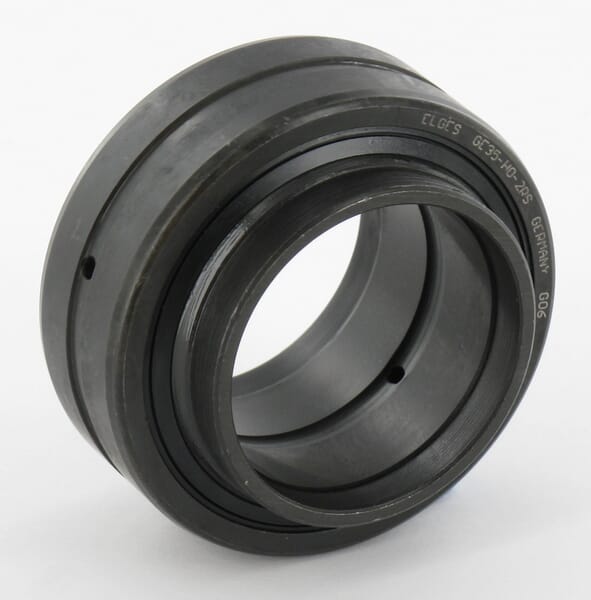

INA Radial spherical plain bearing 35x55x35/20mm GE35HO2RSINA
£50.40 excl.
£60.48 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000310645

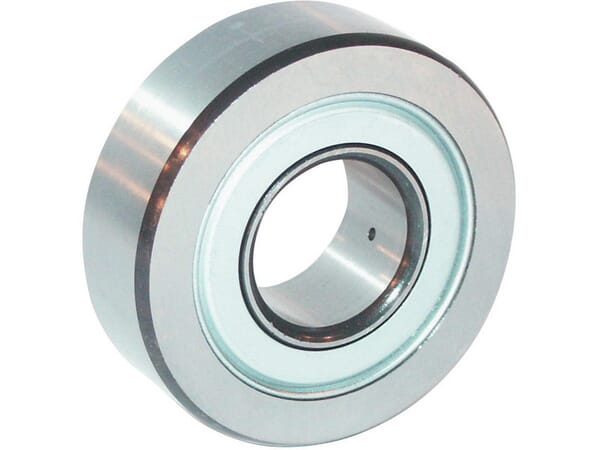

INA Track roller bearing LR5202X2Z
£56.03 excl.
£67.24 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000324689

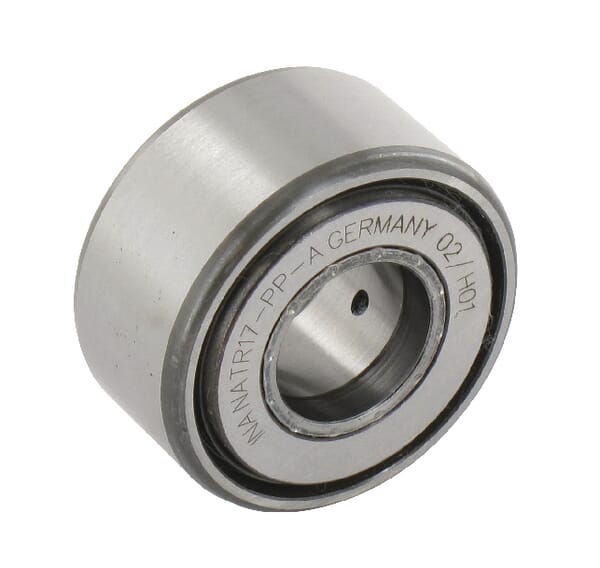

INA Track roller bearing NATR17PPA
£92.49 excl.
£110.99 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000324584
INA Needle roller bearing NK9526XL
£185.75 excl.
£222.90 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000403634

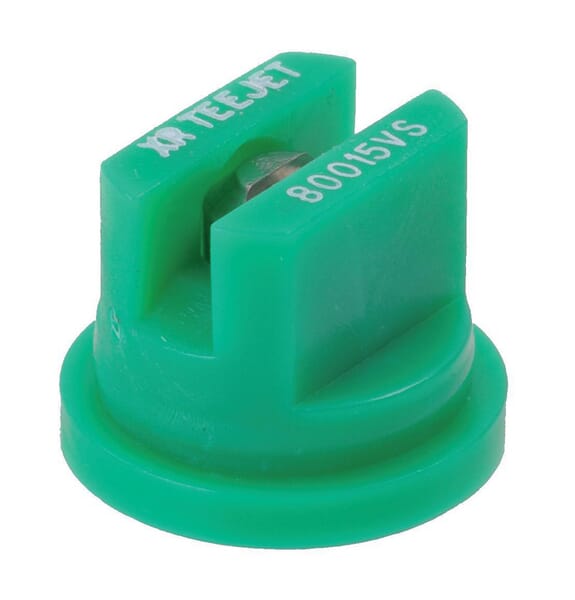

TeeJet Flat fan nozzle XR 80° 015 green stainless steel XR80015VS
£13.60 excl.
£16.32 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000375669

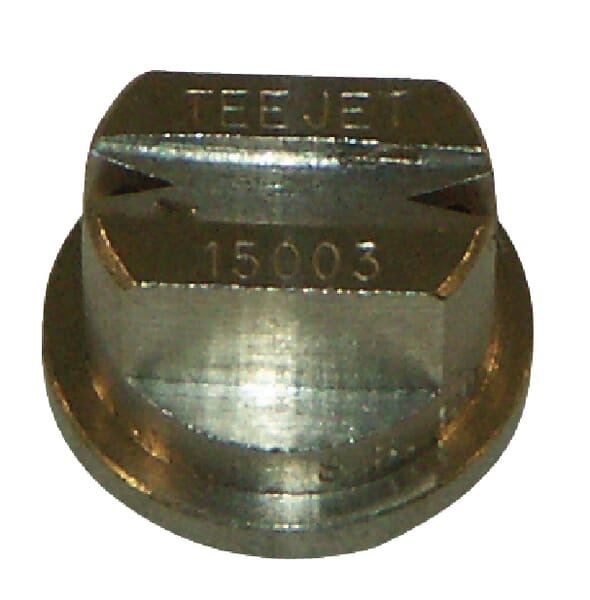

TeeJet Double outlet nozzle TQ 150° 03 stainless steel TQ15003SS
