£81.59
excl. VAT
£97.91 incl. VAT
£97.91
incl. VAT
£81.59 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| Basic radial load dynamic | 13600 N |
| Basic radial load static | 6600 N |
| Bearing inside diameter | 20 mm |
| Benefits | Very good protection against contamination |
| Consists of | Bearing block, Clamp ring |
| Details | Triple seal on two sides |
| Flange thickness | 8 mm |
| Grease nipple thread diameter | M6 |
| Housing height | 17 mm |
| Long description | Ball bearing units INA/FAG, series TME |
| Manufacturer | Schaeffler |
| Mounting holes/bolts circle diameter | 78 mm |
| Mounting holes diameter | 9 mm |
| Number of mounting holes | 4 |
| Original number equivalent | TME20-XL-N |
| Outside diameter | 100 mm |
| Properties | Inner bearing has extended inner ring with clamp ring on both sides, Subsequent lubrication possible |
| Total height | 100 mm |
| Unit | Each |
Logistics
| EAN | 4012802817515 |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
You might also like
Free shipping

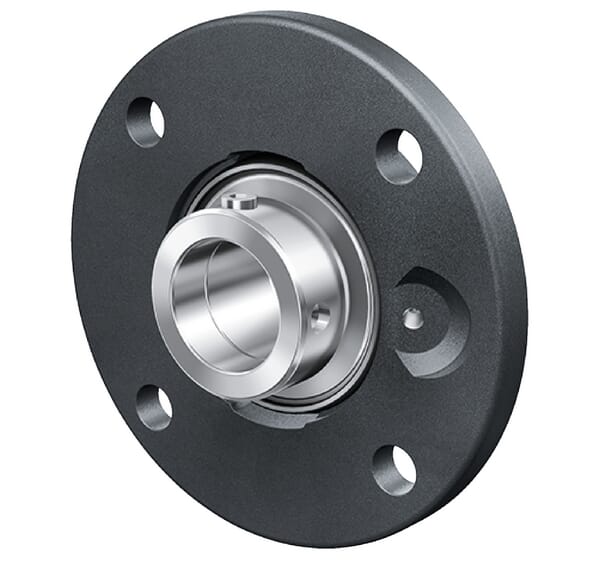

BPA000372284
INA Housing unit TME75
£592.17 excl.
£710.60 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

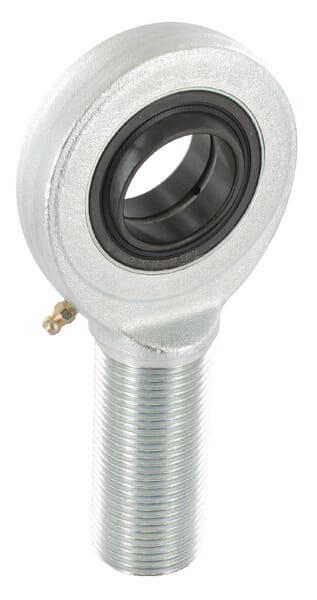

BPA000279832
INA Rod head GAR35DO2RSINA
£139.47 excl.
£167.36 incl.
In stock
Expected to ship on Friday 18 September
BPA000286387
INA Cupped needle roller bearing HK1015
£7.03 excl.
£8.44 incl.
In stock
Expected to ship on Monday 21 September

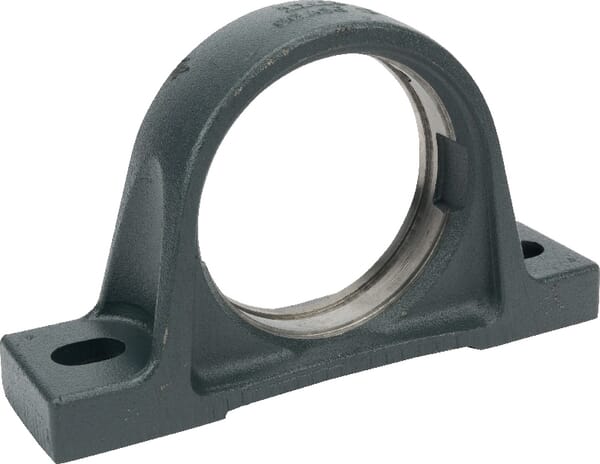

BPA000280786
INA Bearing housing GGASE12N
£52.11 excl.
£62.53 incl.
Backorder available
Usually ships within 3–8 weeks

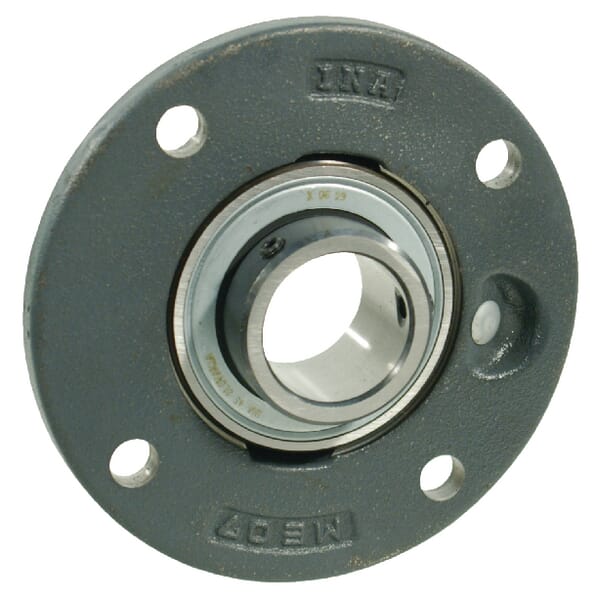

BPA000340834
INA Housing unit PMEY PMEY30N
£65.71 excl.
£78.85 incl.
In stock
Expected to ship on Monday 21 September

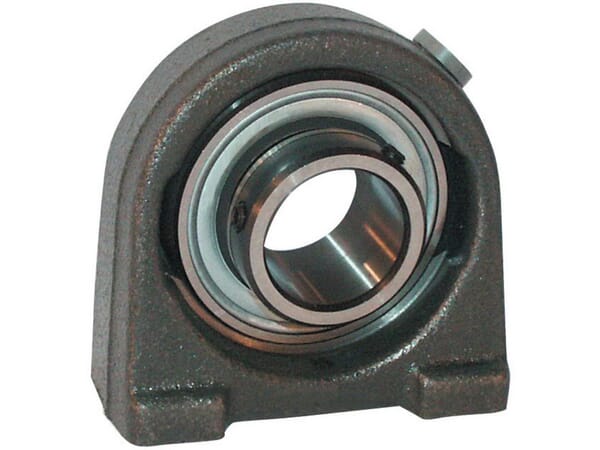

BPA000342736
