£262.43
excl. VAT
£314.92 incl. VAT
£314.92
incl. VAT
£262.43 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

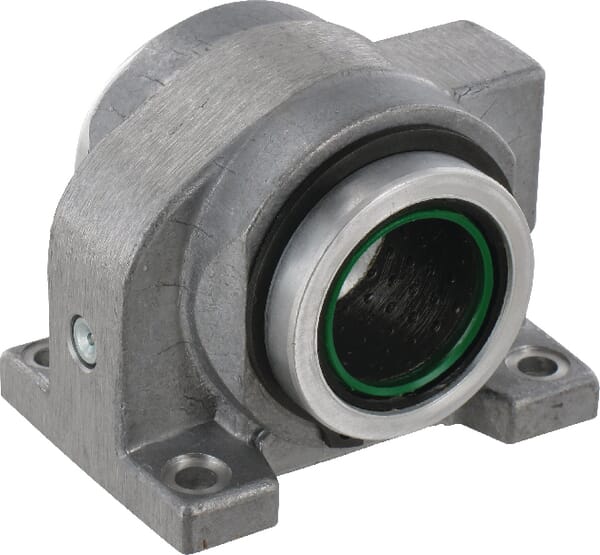

Product details
| Application range | Stationary mechanical engineering, Pick-and-place installations, Transport systems, Packaging machines |
|---|---|
| BHousing width | 84 mm |
| Center grease hole to bottom distance | 25 mm |
| Consists of | Bearing housing, 2 linear slip bearings |
| Details | Version with slip bearing |
| Flange thickness | 8.7 mm |
| FwInside diameter | 30 mm |
| HHousing height | 67 mm |
| LHousing length | 68 mm |
| Manufacturer | Schaeffler |
| Mounting foot width | 60 mm |
| Mounting holes diameter | 6.8 mm |
| Mounting holes distance | 68 mm |
| Original number equivalent | PAGBA30-PP-AS |
| Properties | Suitable for rapid acceleration and high speeds, Low tare weight, Compact design |
| Shaft centre to bottom distance | 35 mm |
| Technical info | Two-sided double seal, Aluminium housing, Operating temperature -30°C to +80°C |
| Tolerance | H12 |
| Total length | 68 mm |
| Unit | Each |
| Weight | 0.48 kg |
| Width | 84 mm |
Logistics
| EAN | 4012802061932 |
|---|---|
| Unit of measure | EA |
| Weight | 555 g |
| Dimensions | 180 × 70 × 70 mm |
| Dangerous goods | No |
You might also like
BPA000237388
INA Complete bearing block BE35
£71.46 excl.
£85.75 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000349587

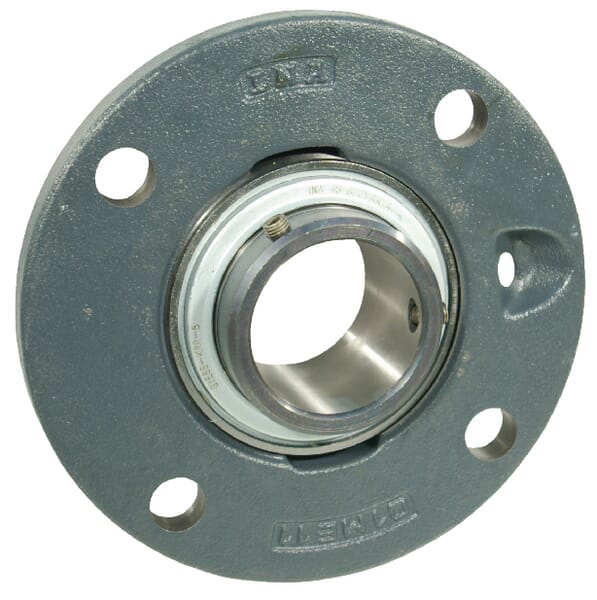

INA Housing unit RMEY RMEY55
£126.26 excl.
£151.51 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000349724
INA Needle roller bearing RNA6922XL
£52.54 excl.
£63.05 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000312566

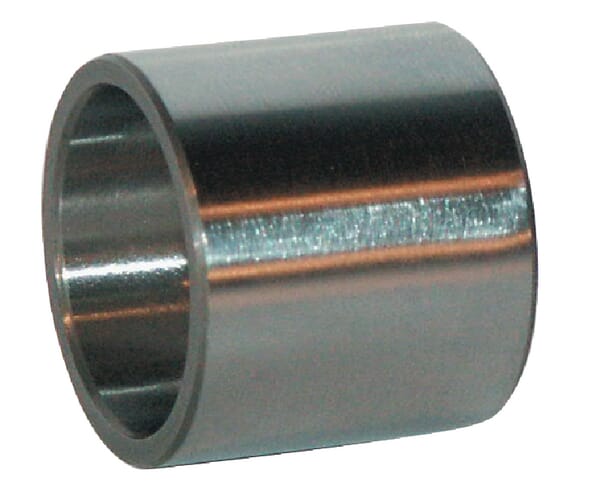

INA Inner ring LR LR4045205
