£93.08
excl. VAT
£111.70 incl. VAT
£111.70
incl. VAT
£93.08 excl. VAT
In stock
Expected to ship on Tuesday 22 September
About this product

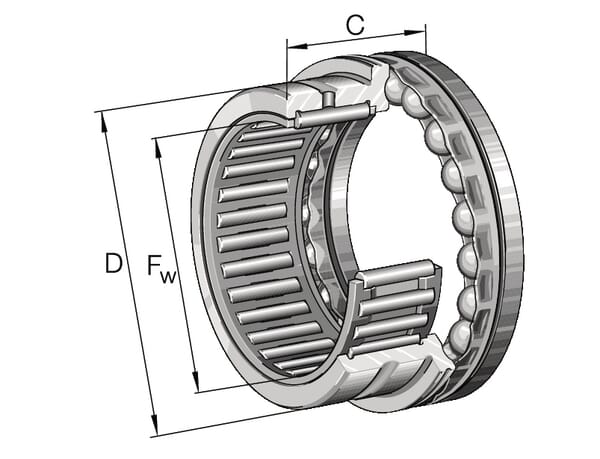

A combined needle roller and axial ball bearing (NKX20ZXL) with a 20 mm inside diameter, 30 mm outside diameter, and 30 mm width. The bearing combines radial load capacity (18.6 kN dynamic, 23.8 kN static) with axial load capacity (14.2 kN dynamic, 24.7 kN static), and features a cover cap around the thrust bearing (Z designation). The needle bearing requires hardened and ground bearing surfaces for proper operation. The bearing is regreasable and rated for a maximum rotation speed of 7500 r/min with a working temperature range from −20 °C to 120 °C. Sealing is open-type. The bearing weighs 94 g and carries EAN 4012802733181. It is manufactured by Schaeffler.
Product details
| Axial bearing width | 11 mm |
|---|---|
| Basic axial load dynamic | 14200 N |
| Basic axial load static | 24700 N |
| Basic radial load dynamic | 18600 N |
| Basic radial load static | 23800 N |
| CWidth | 30 mm |
| DOutside diameter | 30 mm |
| FwInside diameter | 20 mm |
| Long description | Needle-axial ball bearings |
| Manufacturer | Schaeffler |
| Max rotation speed | 7500 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -20 °C |
| Original number equivalent | NKX20-Z-XL |
| Product details | Needle roller bearing combined with axial ball bearing, Needle bearing requires hardened and ground bearing surfaces, Addition Z: features cover cap around thrust bearing |
| Pros | Can handle heavy axial and radial loads |
| Regreasable | Yes |
| Sealing | Open |
| Unit | Each |
Logistics
| EAN | 4012802733181 |
|---|---|
| Unit of measure | EA |
| Weight | 94 g |
| Dimensions | 50 × 42 × 36 mm |
| Dangerous goods | No |
You might also like
BPA000280375

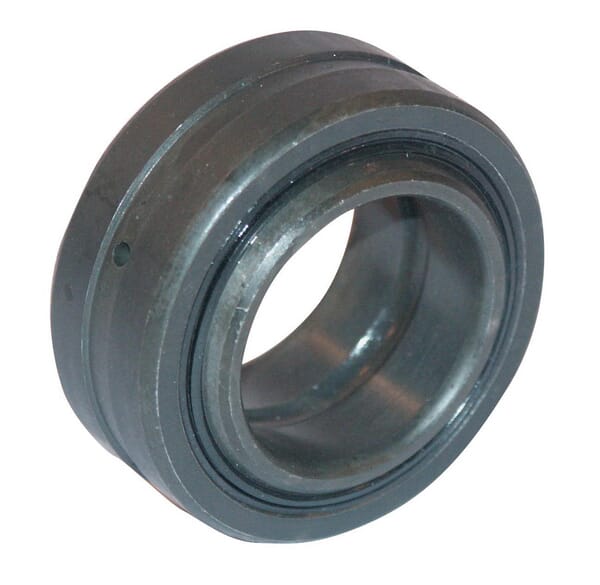

INA Radial spherical plain bearing 10x19x9/6mm GE10DOINA
£13.04 excl.
£15.65 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000286888

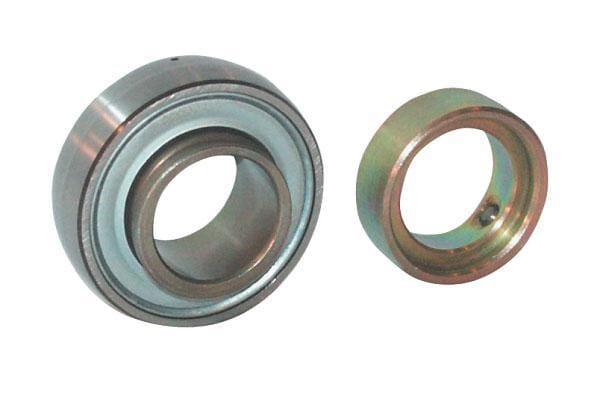

INA Bearing insert 12x40x21mm INA/FAG GRAE12XLNPPB
£20.17 excl.
£24.20 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000279845

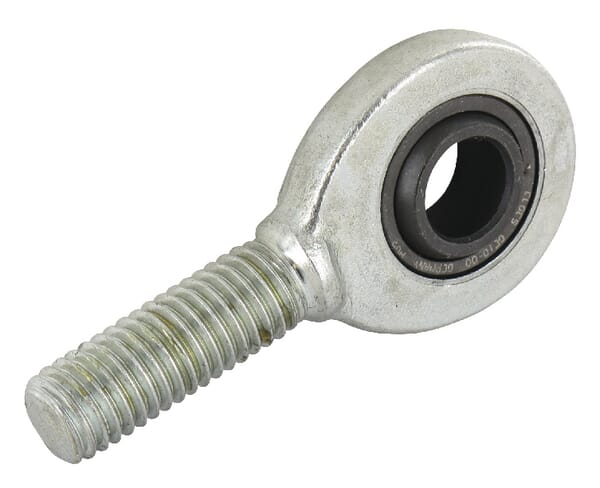

INA Rod head GAR8DOINA
£24.42 excl.
£29.30 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000354967
INA Housing unit RSHE17XL
£62.31 excl.
£74.77 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000286367
INA Cupped needle roller bearing HK0609
£5.32 excl.
£6.38 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000298369

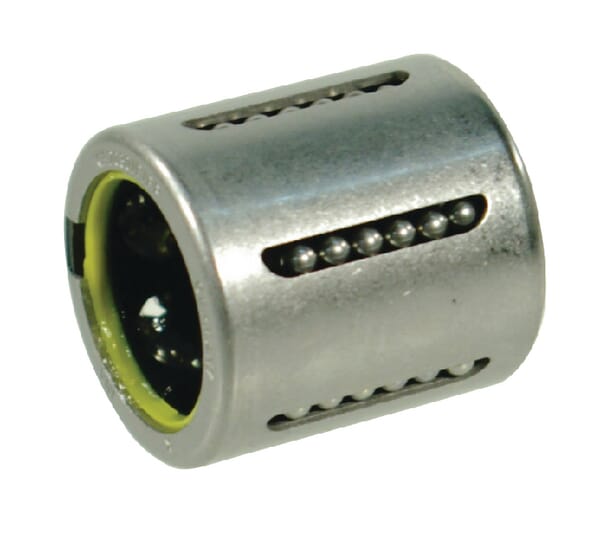

INA Linear ball bearing KH2540
