About this product

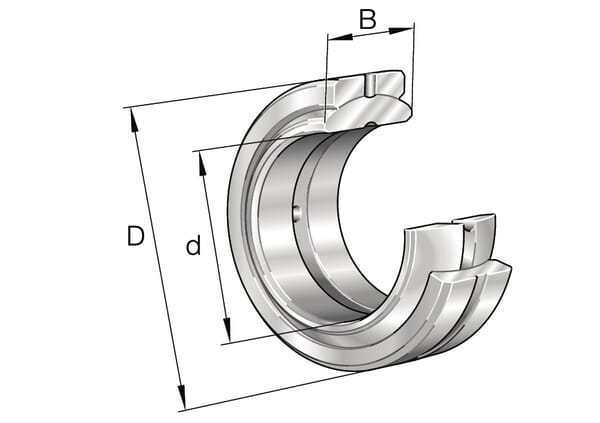

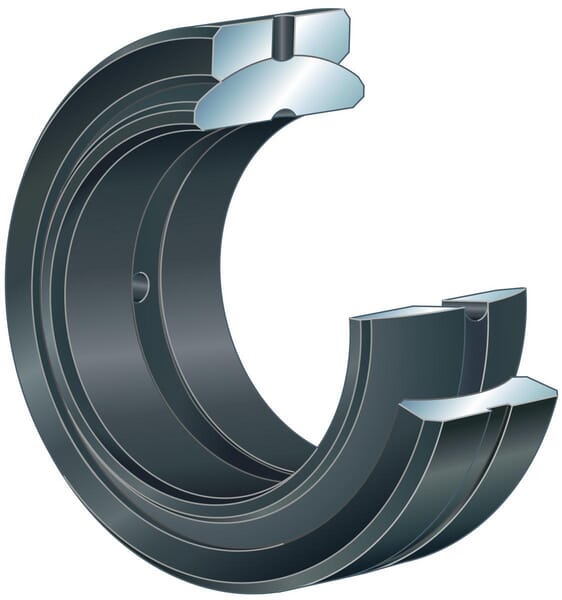

An INA radial spherical plain bearing (GE100-DO series) with an inner bore of 100 mm, outer diameter of 150 mm, inner ring width of 70 mm, and outer ring width of 55 mm. The bearing is rated for a dynamic radial load of 608 kN and a static radial load of 3040 kN, with a tilt angle of 7°. It is manufactured by Schaeffler and features a manganese-phosphated surface treatment. The bearing is unsealed and is supplied lubricated with a steel-on-steel contact design; subsequent lubrication is possible and recommended for continued operation. Operating temperature range is −60 °C to +200 °C. The product is sold as a single bearing unit and weighs approximately 4.5 kg. EAN 4012802529623. This bearing requires regular maintenance as part of normal operation.
Product details

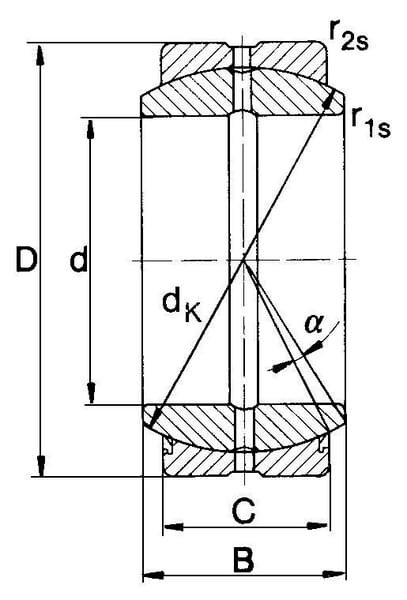

| Basic radial load dynamic | 608000 N |
|---|---|
| Basic radial load static | 3040000 N |
| Bearing model type | Spherical plain bearings |
| BInner ring width | 70 mm |
| COuter ring width | 55 mm |
| dInside diameter | 100 mm |
| dkBall diameter | 130 mm |
| DOutside diameter | 150 mm |
| Manufacturer | Schaeffler |
| Max working temperature | 200 °C |
| Min working temperature | -60 °C |
| Original number equivalent | GE100-DO |
| Product details | Requires maintenance, Lubricated connection steel/steel, Subsequent lubrication possible |
| Sealing | Open |
| Surface treatment | Manganese phosphated |
| Unit | Each |
| αTilt angle | 7 ° |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 4012802529623 |
|---|---|
| Unit of measure | EA |
| Weight | 4454 g |
| Dimensions | 158 × 156 × 73 mm |
| Dangerous goods | No |
