£124.50
excl. VAT
£149.40 incl. VAT
£149.40
incl. VAT
£124.50 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Packaging machines, Transport systems, Roll-up doors, Roller tensioners |
|---|---|
| Basic radial load dynamic | 9900 N |
| Basic radial load static | 6400 N |
| Bearing model type | Track rollers |
| Benefits | Maintenance-free, Can absorb high radial loads, No forces on edges with uneven standing |
| BTotal length | 53.2 mm |
| d1Shaft diameter | 20 mm |
| Details | Abrasive rubber gasket on both sides, Thick-walled outer ring, Track is slightly ball-shaped |
| DOutside diameter | 40 mm |
| Inside diameter | 16 mm |
| Long description | Track rollers single and double-row INA/FAG, series KR .. 2RS |
| Manufacturer | Schaeffler |
| Max working temperature | 120 °C |
| Min working temperature | -20 °C |
| Mounting thread diameter | M16 |
| Mounting thread length | 19 mm |
| Mounting thread pitch | 1.50 mm |
| Original number equivalent | KR5202-2RS |
| Outer ring width | 15.9 mm |
| Properties | Two-row layout, Polyamide housing, No subsequent lubrication possible |
| Regreasable | No |
| Rows number | 2 |
| Sealing | 2RS |
| Shaft length | 36.5 mm |
| Unit | Each |
| Weight | 0.19 kg |
| Width | 15.9 mm |
| Wrench/spanner size | 8.0 mm |
Logistics
| EAN | 4012802795486 |
|---|---|
| Unit of measure | EA |
| Weight | 169 g |
| Dimensions | 65 × 45 × 45 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000323690

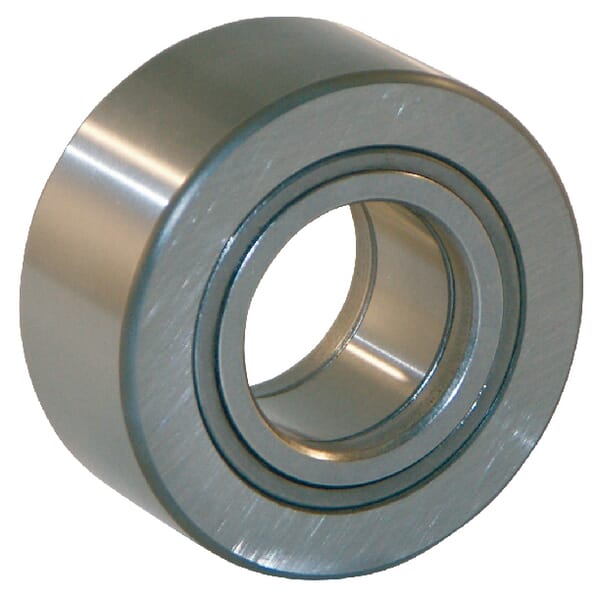

INA Track roller bearing NUTR40A
£191.27 excl.
£229.52 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000286374

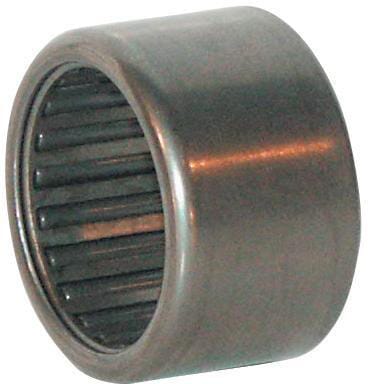

INA Cup needle HK0810RSFPMB
£9.63 excl.
£11.56 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000294129

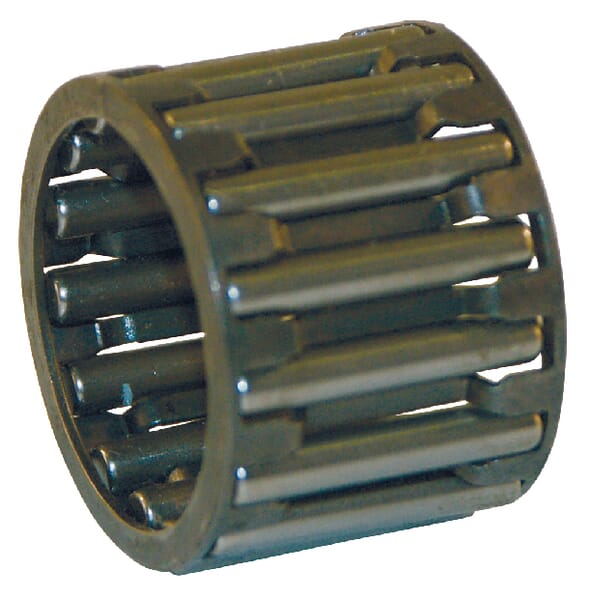

INA Needle cage K475217
£20.36 excl.
£24.43 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000068052

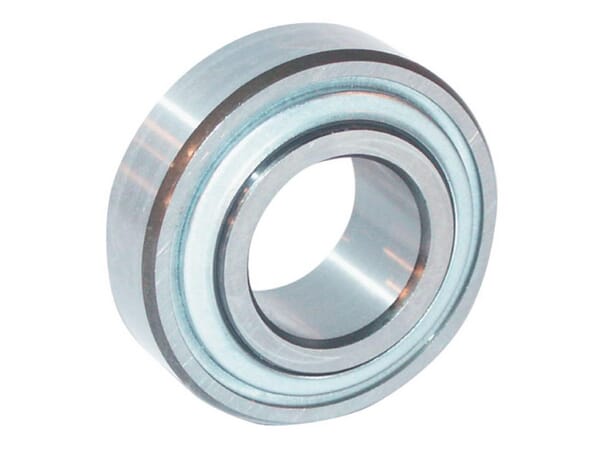

INA Deep groove ball bearing 20x47x17.7mm INA/FAG 204KRR
£22.01 excl.
£26.41 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000280852

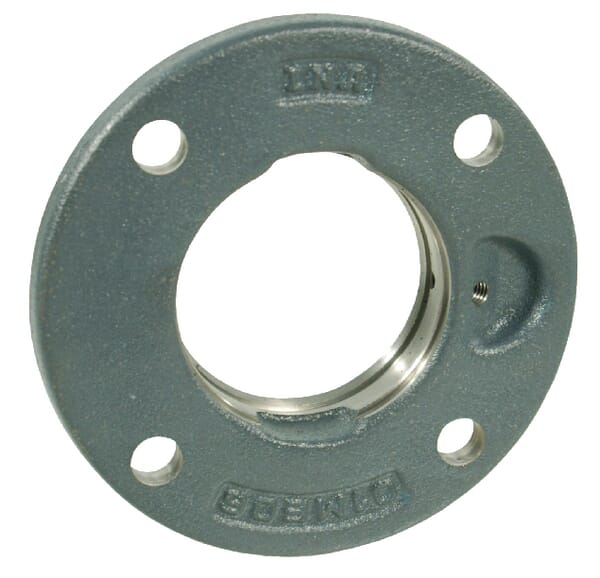

INA Bearing cover for Type PME/RME 30 GGME06INA
£35.91 excl.
£43.09 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000286410

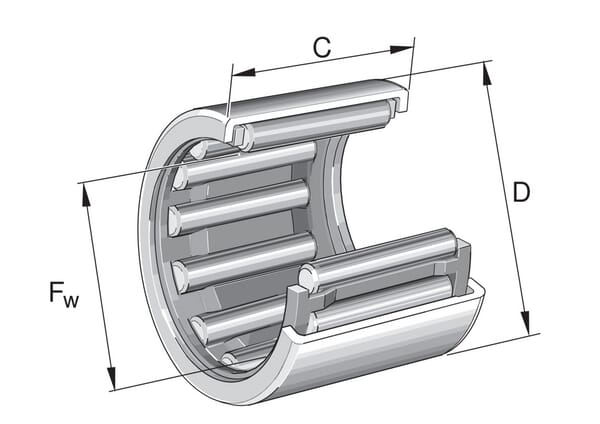

INA Cup needle roller bearing HK1516AS1B
