Product details

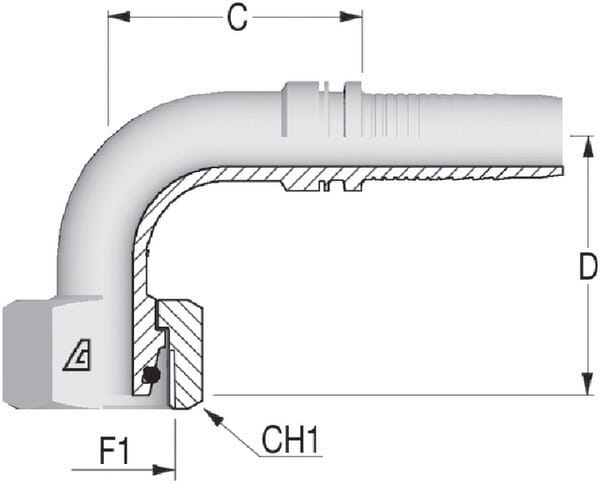

| CConnection centre to insert distance | 22 mm |
|---|---|
| Cone angle | 24 ° |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | M12 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Hose end |
| Connection 2, type code | DKOL |
| Connection 2, type - male/female | Male |
| Connection no 2 wrench size | 19 mm |
| DConnection 2, centre to end distance | 23 mm |
| F1Connection no 1 diameter | 3/16 Inch |
| Includes | Insert, O-ring |
| Material | Steel |

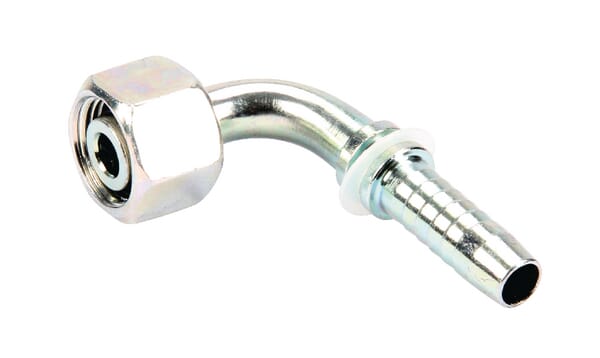

| Product details | Insert PGLO/DKOL-90°, metric swivel nut, Cone with O-ring seal, Cutting ring adaptors L series |
| Series | 6L |
| Shape | Elbow 90° |
| Surface treatment | White passivated, Zinc-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 25 g |
| Dimensions | 56 × 30 × 14 mm |
| Dangerous goods | No |
