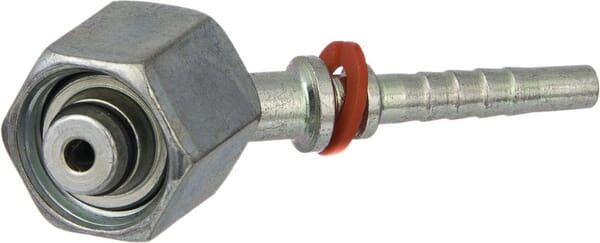

Insert DN05-M16x1,5-8S-45° PGSO51645

Name: Insert DN05-M16x1,5-8S-45°
SKU: BPA000344227
Price: 40.04 GBP
Availability: BackOrder

£33.37 excl. VAT

£40.04 incl. VAT

£33.37 excl. VAT

Out of stock — Backorder available

Usually ships within 3–8 weeks.

Product details

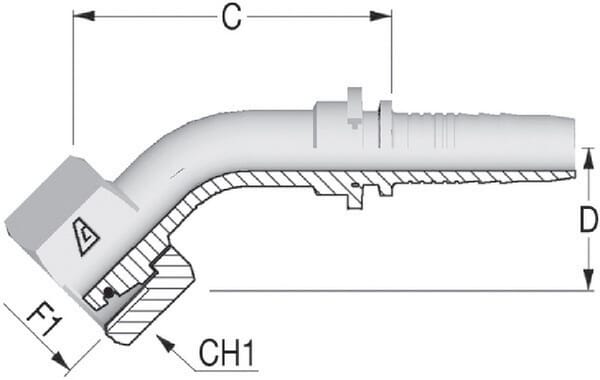

CConnection centre to insert distance	46 mm
Cone angle	24 °
Connection 1, type	Hose end
Connection 1, type - male/female	Male
Connection 2, thread diameter	M16
Connection 2, thread pitch	1.50 mm
Connection 2, thread type	Metric
Connection 2, type	Swivel nut
Connection 2, type code	DKOS
Connection 2, type - male/female	Female
Connection no 1 center to end distance	16 mm
Connection no 2 wrench size	19 mm
DConnection 2, centre to end distance	16 mm
F1Connection no 1 diameter	3/16 Inch
Includes	Insert, O-ring
Material	Steel
Product details	Cone, sealing cone with O-ring seal, Cutting ring adaptors S series
Series	8S
Shape	Elbow 45°
Surface treatment	White passivated, Zinc-plated
Unit	Each
