Product details

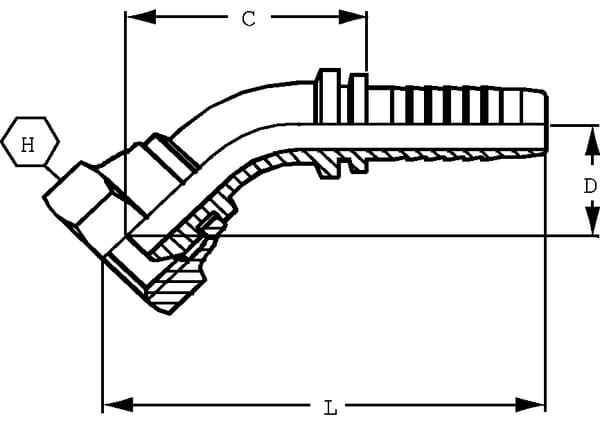

| CConnection centre to insert distance | 35 mm |
|---|---|
| Cone angle | 60 ° |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | M16 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Hose end |
| Connection 2, type code | DKM |
| Connection no 1 diameter | 1/4 Inch |
| Connection no 1 length | 35 mm |
| Connection no 2 wrench size | 19 mm |
| DConnection 2, centre to end distance | 14 mm |
| Material | Steel |
| Product details | Cone, metal on metal seal, Cutting ring adaptors L series 24° cone, Adaptors with 60° cone, Do not use for 4-layer hose ABT (4SP) |
| Series | 10L |

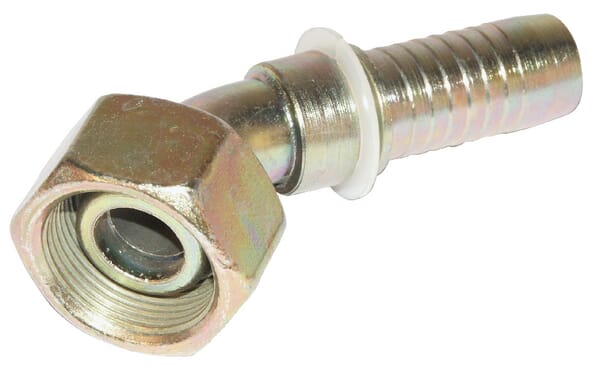

| Shape | Elbow 45° |
| Surface treatment | White passivated, Zinc-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 43 g |
| Dimensions | 75 × 21 × 20 mm |
| Dangerous goods | No |
