Product details
| Cone angle | 60 ° |
|---|---|
| Connection 1, type | Hose end |
| Connection 1, type - male/female | Male |
| Connection 2, centre to end distance | 31 mm |
| Connection 2, thread diameter | 1/4 Inch |
| Connection 2, threads per inch | 19 |
| Connection 2, thread type | BSP |
| Connection 2, type | Swivel nut |
| Connection 2, type code | DKOR |
| Connection 2, type - male/female | Female |
| Connection centre to insert distance | 25 mm |
| Connection no 1 center to end distance | 27 mm |
| Connection no 1 diameter | 3/8 Inch |
| Connection no 2 wrench size | 19 mm |
| Includes | Insert, O-ring |
| ISO standard | 228 |
| Material | Steel |

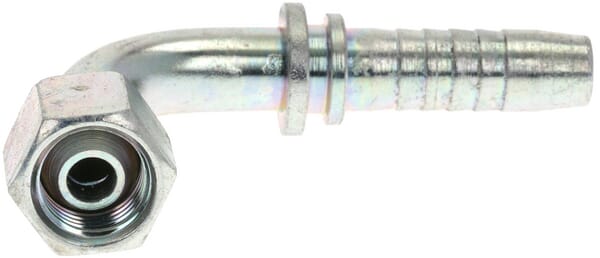

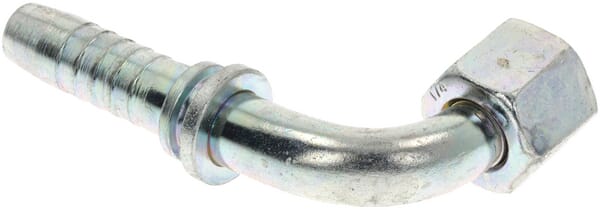

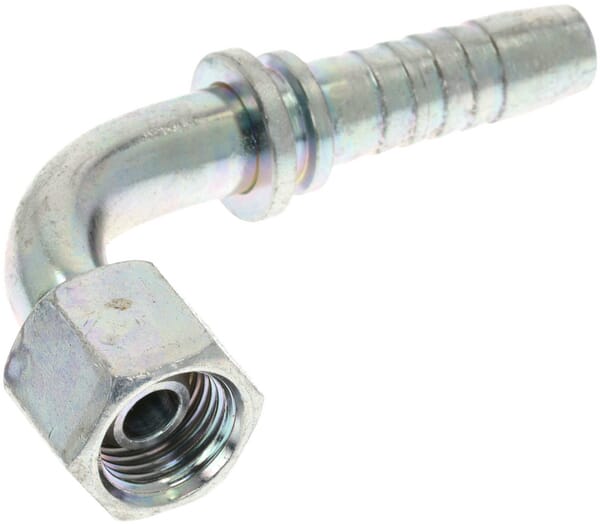

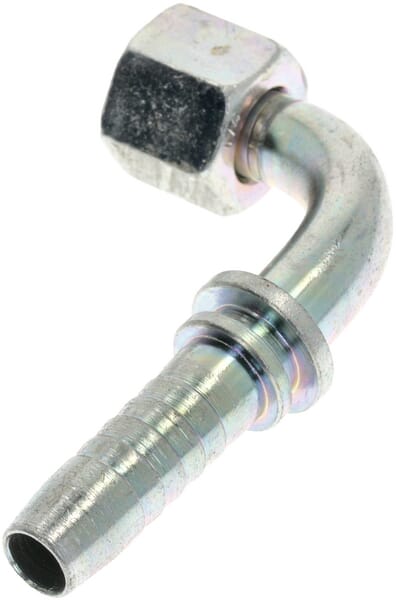

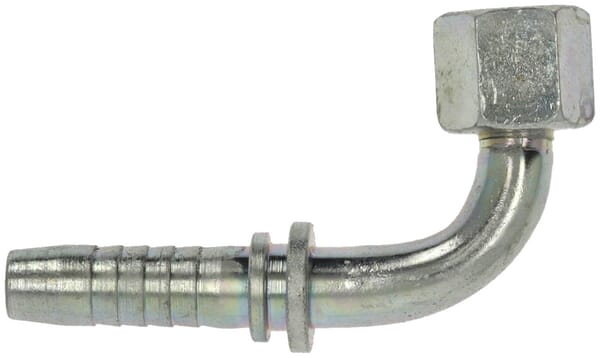

| Product details | DKOR 90, 90° BSPP, Female 60° Cone with O-Ring |
| Shape | Elbow 90° |
| Surface treatment | White passivated, Zinc-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 47 g |
| Dimensions | 75 × 45 × 19 mm |
| Dangerous goods | No |
