Product details
| Cone angle | 24 ° |
|---|---|
| Connection 1, type | Hose end |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M22 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type code | CEL |
| Connection 2, type - male/female | Male |
| Connection no 1 diameter | 5/8 Inch |
| Connection no 1 length | 26.5 mm |
| Connection no 2 wrench size | 24 mm |
| F1Connection no 1 diameter | 16 mm |
| Long description | Application range:, L-series cutting ring adapter, Properties:, Cone, metal on metal seal, Technical information:, Available in stainless steel on request |
| Material | Steel |

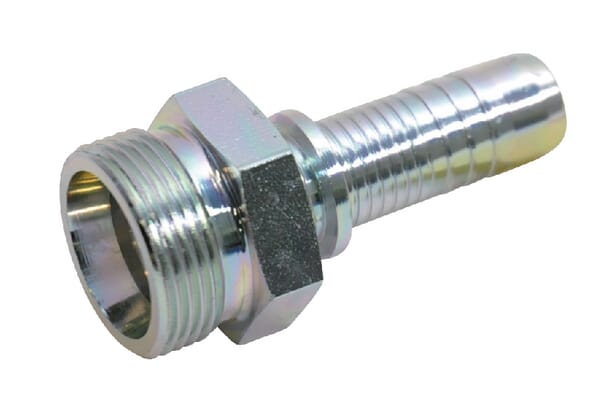

| Product details | Cone, metal on metal seal, Cutting ring adaptors L series |
| Series | 15L |
| Shape | Straight |
| Surface treatment | White passivated, Zinc-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 73 g |
| Dimensions | 60 × 25 × 22 mm |
| Dangerous goods | No |
