Product details

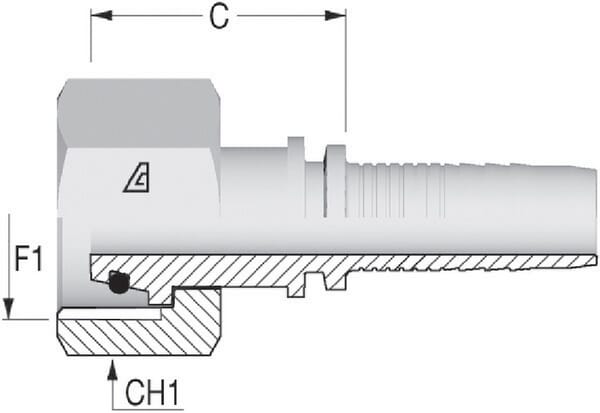

| CConnection centre to insert distance | 33 mm |
|---|---|
| Cone angle | 24 ° |
| Connection 1, type | Hose end |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M24 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Swivel nut |
| Connection 2, type code | DKOS |
| Connection 2, type - male/female | Female |
| Connection no 2 wrench size | 30 mm |
| F1Connection no 1 diameter | 5/8 Inch |
| Includes | Insert, O-ring |
| Long description | Application range:, S-series cutting ring adapter, Consists of:, Swage coupling, O-ring, Properties:, Cone, sealing cone with O-ring seal, Technical information:, Available in s |
| Material | Steel |

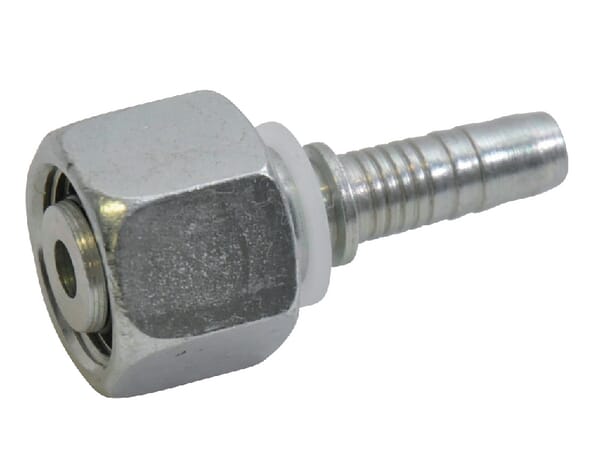

| Product details | Cone, sealing cone with O-ring seal, Cutting ring adaptors S series |
| Series | 16S |
| Shape | Straight |
| Surface treatment | White passivated, Zinc-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 121 g |
| Dimensions | 70 × 35 × 35 mm |
| Dangerous goods | No |
