Product details

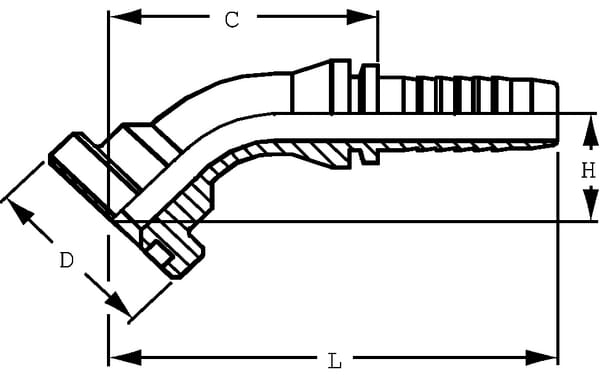

| CConnection centre to insert distance | 64 mm |
|---|---|
| Connection 1, type | Hose end |
| Connection 2, diameter | 1/2 Inch |
| Connection 2, type | Flange |
| DConnection no 1 diameter | 5/8 Inch |
| DFlange outside diameter | 30.2 mm |
| Flange standard pressure series | 3000 |
| Flange thickness | 6.73 mm |
| HConnection 2, centre to end distance | 23 mm |
| Includes | Insert, Without OVP-ring or O-ring |
| ISO standard | 6162 |
| Material | Steel |
| Product details | OVP-ring or O-ring seal - 4 SP hose, Excavation machines, Heavy-duty industry |
| Series | PFL |

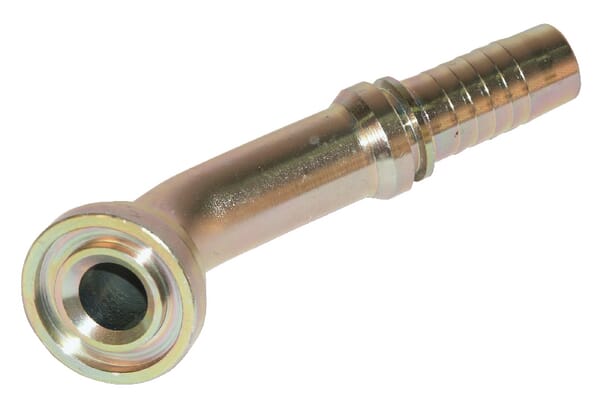

| Shape | Elbow 45° |
| Surface treatment | White passivated, Zinc-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 112 g |
| Dimensions | 109 × 45 × 30 mm |
| Dangerous goods | No |
