Product details

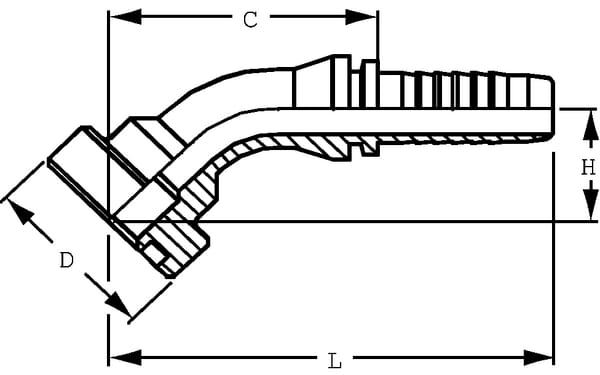

| CConnection centre to insert distance | 72 mm |
|---|---|
| Connection 1, type | Hose end |
| Connection 1, type code | SFS |
| Connection 2, diameter | 3/4 Inch |
| Connection 2, type | Flange |
| Connection no 1 diameter | 5/8 Inch |
| DConnection no 1 diameter | 16 mm |
| DFlange outside diameter | 41.3 mm |
| Flange standard pressure series | 6000 |
| Flange thickness | 8.76 mm |
| HConnection 2, centre to end distance | 30 mm |
| Includes | Insert, Without OVP-ring or O-ring |
| ISO standard | 6162 |
| Long description | Application range:, 4SP hose, Earth-moving machinery, Heavy industry, Consists of:, Swage coupling, Without OVP ring or O-ring, Properties:, Seal with OVP ring or O ring |
| Material | Steel |

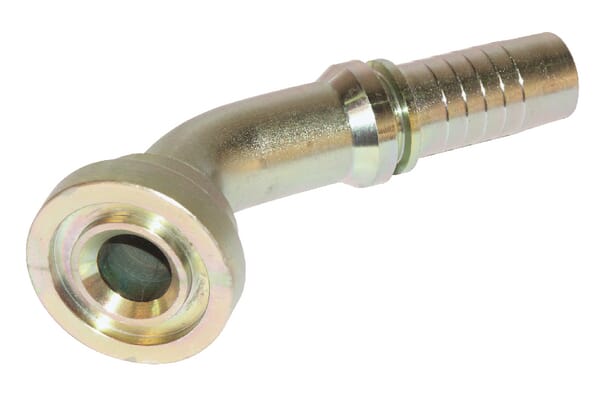

| Product details | OVP-ring or O-ring seal - 4 SP hose, Excavation machines, Heavy-duty industry |
| Series | PFS |
| Shape | Elbow 45° |
| Surface treatment | White passivated, Zinc-plated |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 282 g |
| Dimensions | 170 × 62 × 45 mm |
| Dangerous goods | No |
