£106.87
excl. VAT
£128.24 incl. VAT
£128.24
incl. VAT
£106.87 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September

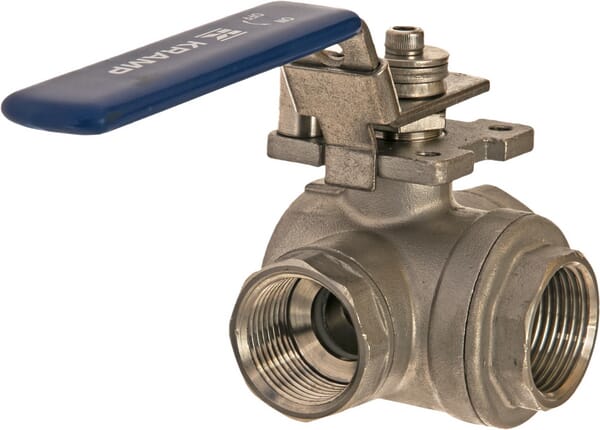

Product details
| Center bore to top distance | 80 mm |
|---|---|
| Connection 2, thread diameter | 1 Inch |
| Connection 2, thread type | BSPT |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Female |
| Connection thread diameter | 1 Inch |
| Connection thread type | BSPT |
| Connection type | Thread |
| Connection type - male/female | Female |
| Housing material | Stainless steel |
| LHousing length | 93 mm |
| Max working pressure | 63 BAR |
| Max working temperature | 132 °C |
| Min working temperature | -20 °C |
| Nominal inner diameter | 20 mm |
| Number of ports | 3 |
| Number of positions | 3 |
| Product details | L-bore - Mounting plate for ISO5211 - Conical thread in accordance with ISO-7-1 and DIN2999-1 - With blocking - PTFE seals |
| Sealing material | Teflon (PTFE) |
| Total length | 93 mm |
| Type | Manual valve |
| Unit | Each |
| WHandle length | 155 mm |
Logistics
| EAN | 8719607321389 |
|---|---|
| Unit of measure | EA |
| Weight | 1110 g |
| Dimensions | 220 × 115 × 75 mm |
| Dangerous goods | No |
You might also like
BPA000370390
Kramp Bolt pack 2x M12x45 CO+Nuts TB40241
£3.40 excl.
£4.08 incl.
In stock
Expected to ship on Friday 18 September
BPA000287298
Kramp Rod clevis M16x150 GSM1615
£44.94 excl.
£53.93 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000240518
Kramp Full door window CCGHIT003
£153.99 excl.
£184.79 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000278914
Kramp Feeder wagon knife FM19117
£12.68 excl.
£15.22 incl.
In stock
Expected to ship on Friday 18 September
BPA000004054

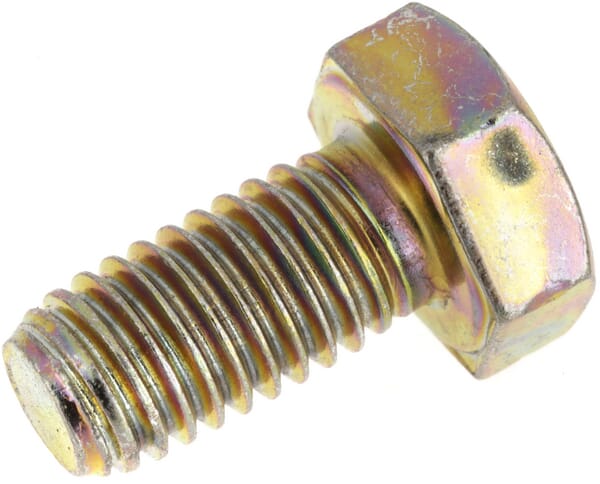

Kramp Screw hex. 0002113800N
