£237.10
excl. VAT
£284.52 incl. VAT
£284.52
incl. VAT
£237.10 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Center bore to top distance | 103 mm |
|---|---|
| Connection 2, thread diameter | 1-1/2 Inch |
| Connection 2, thread type | BSPT |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Female |
| Connection thread diameter | 1-1/2 Inch |
| Connection thread type | BSPT |
| Connection type | Thread |
| Connection type - male/female | Female |
| Housing material | Stainless steel |
| LHousing length | 124 mm |
| Max working pressure | 63 BAR |
| Max working temperature | 132 °C |
| Min working temperature | -20 °C |
| Nominal inner diameter | 32 mm |
| Number of ports | 3 |
| Number of positions | 3 |
| Product details | T-bore - Mounting plate for ISO5211 - Conical thread in accordance with ISO-7-1 and DIN2999-1 - With blocking - PTFE seals |
| Sealing material | Teflon (PTFE) |
| Total length | 124 mm |

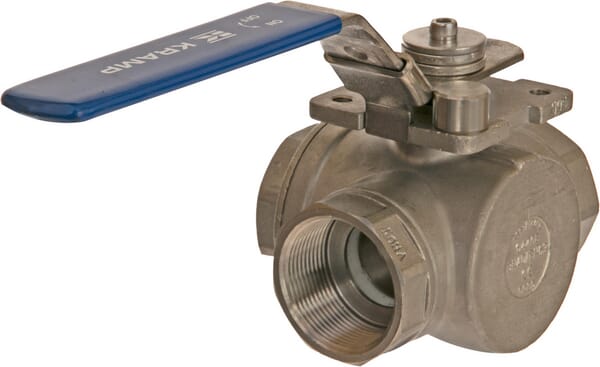

| Type | Manual valve |
| Unit | Each |
| WHandle length | 210 mm |
Logistics
| EAN | 8719774896345 |
|---|---|
| Unit of measure | EA |
| Weight | 2562 g |
| Dimensions | 285 × 150 × 100 mm |
| Dangerous goods | No |
You might also like
BPA000157441
Kramp Reducer 6710122KR
£28.69 excl.
£34.43 incl.
In stock
Expected to ship on Friday 18 September
BPA000187580
Kramp Roll pin, heavy duty 5x45mm ISO8752 8752545
£0.18 excl.
£0.22 incl.
In stock
Expected to ship on Friday 18 September
BPA000031160
Kramp Plough bolt and nut M10x80, round countersunk square neck 1080VK
£1.73 excl.
£2.08 incl.
In stock
Expected to ship on Friday 18 September
BPA000308814

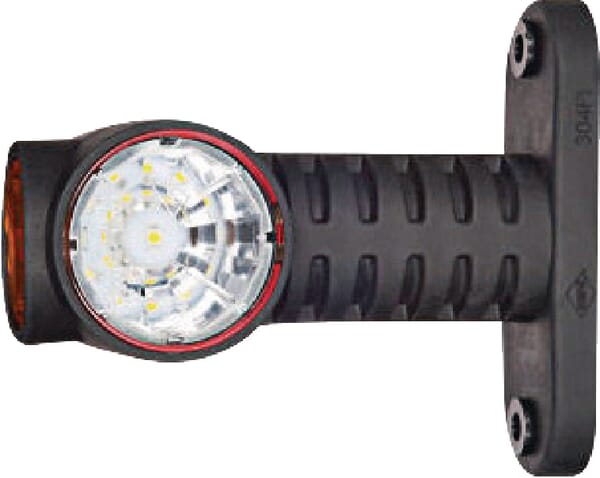

Kramp Marker light LED, 0.7/1.4W, 12/24V, white/orange/red, 100x55x118mm, 3 LED's, LA30015
