£104.04
excl. VAT
£124.85 incl. VAT
£124.85
incl. VAT
£104.04 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details

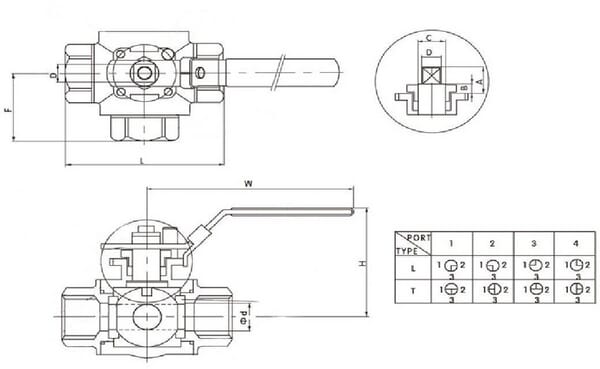

| Center bore to top distance | 80 mm |
|---|---|
| Connection 2, thread diameter | 1 Inch |
| Connection 2, thread type | BSPT |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Female |
| Connection thread diameter | 1 Inch |
| Connection thread type | BSPT |
| Connection type | Thread |
| Connection type - male/female | Female |
| Housing material | Stainless steel |
| LHousing length | 93 mm |
| Max working pressure | 63 BAR |
| Max working temperature | 132 °C |
| Min working temperature | -20 °C |
| Nominal inner diameter | 20 mm |
| Number of ports | 3 |
| Number of positions | 3 |

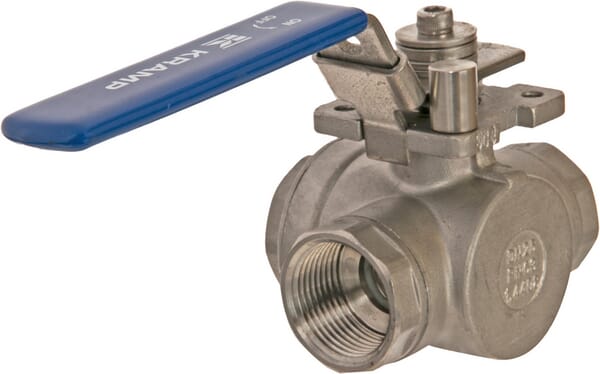

| Product details | T-bore - Mounting plate for ISO5211 - Conical thread in accordance with ISO-7-1 and DIN2999-1 - With blocking - PTFE seals |
| Sealing material | Teflon (PTFE) |
| Total length | 93 mm |
| Type | Manual valve |
| Unit | Each |
| WHandle length | 155 mm |
Logistics
| EAN | 8719607321327 |
|---|---|
| Unit of measure | EA |
| Weight | 1073 g |
| Dimensions | 205 × 125 × 75 mm |
| Dangerous goods | No |
You might also like
BPA000395949
Kramp V-seal diameter 7mm 10pcs VR7AP010
£2.84 excl.
£3.41 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000305769

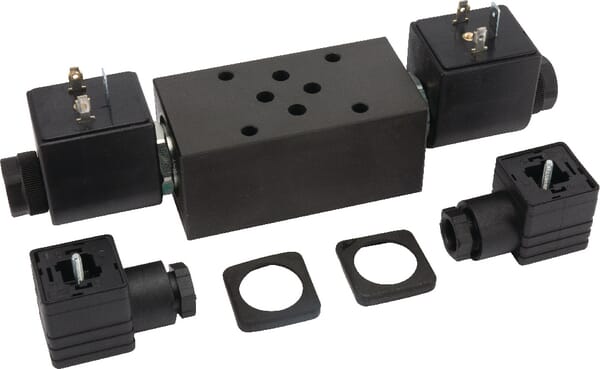

Kramp Electric check valve KRMSC-03W- KRMSC03W024C
