£4,727.82
excl. VAT
£5,673.38 incl. VAT
£5,673.38
incl. VAT
£4,727.82 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Unit assembly, Combination with worm gear reducer |
|---|---|
| BBDiameter fan cover | 399 mm |
| Benefits | High operational reliability, Energy-saving, Simple assembly |
| cos φ | 0.88 |
| Details | The motor has an A-mark bearing, High performance, Base mounting possible |
| Frequency | 50 Hz |
| GHeight shaft with key | 59.0 mm |
| In | 52.57 A |
| Key width | 16 mm |
| Length of centring | 5 mm |
| LTotal length | 768 mm |
| Material housing | Cast iron |
| M (Nm) | 196.22 N·m |
| Moments of inertia (kgm²) | 0.2944 kg·m² |
| MPitch circle diameter | 350 mm |
| N1 | 1460 r/min |
| NDiameter of centring | 300 mm |
| Noise level | 79 dB(A) |
| Phase ~ | 3 |
| PN | 30 kW |
| POutside diameter flange | 400 mm |
| Power factor cos phi 100% | 0.81 |
| Properties | Up to and including size 132: aluminium housing, From size 160: cast iron housing |
| RDistance center shaft to end terminal box | 297 mm |
| Shaft length | 110 mm |
| Swivel | M40 x 1,5 |
| Technical info | Equipped with PTC, At 230/400 V: Y-configuration (300), At 400/690 V: Delta configuration (500) |
| TLength of centring | 5 mm |
| Torque | 194.90 N·m |
| Unit | Each |
| Voltage | 400/690V 50Hz V |
| Weight | 252.0 kg |
| XDiameter mounting holes | 19 mm |
Logistics
| EAN | 8716106887590 |
|---|---|
| Unit of measure | EA |
| Weight | 265000 g |
| Dimensions | 820 × 500 × 460 mm |
| Dangerous goods | No |
You might also like
BPA000382564

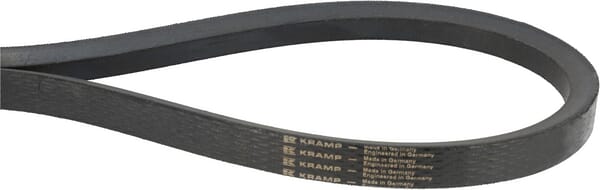

Kramp V-belt 10x1050 Li VB101050KR
£4.90 excl.
£5.88 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000337947

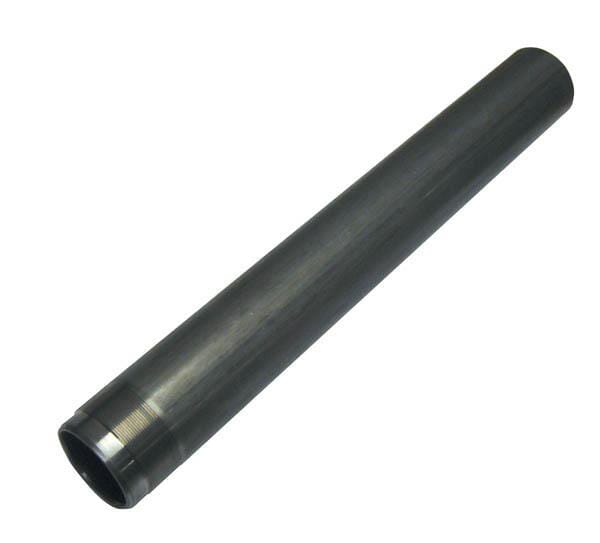

Kramp PB bore PC50 stroke 600 L=642 PC29050050600
£77.65 excl.
£93.18 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000319407

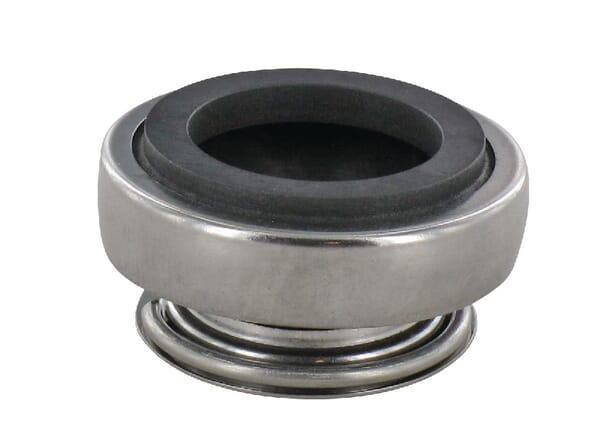

Kramp Water pump gasket rotor MS10033177
£107.21 excl.
£128.65 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000301368
Kramp Starter cord 3.0mm x 10m white KR0300100W
£3.50 excl.
£4.20 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000286758

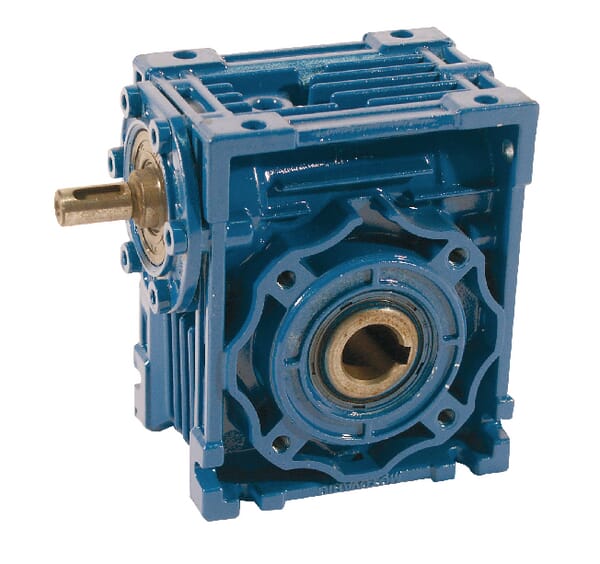

Kramp Worm gear reducer I = 50 GR07550
£303.98 excl.
£364.78 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000202094

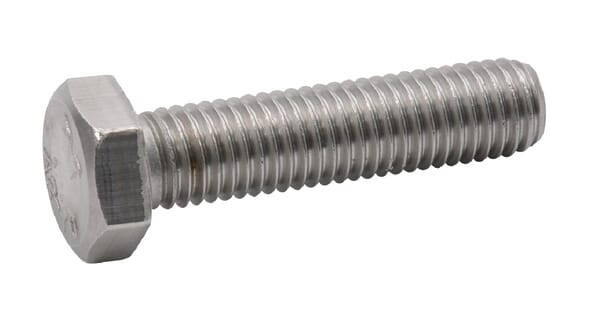

Kramp Hexagon head bolt DIN933 UNC 7/16"x1 1/2" steel zinc-plated 8.8 933716112UNC
