£31.02
excl. VAT
£37.22 incl. VAT
£37.22
incl. VAT
£31.02 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

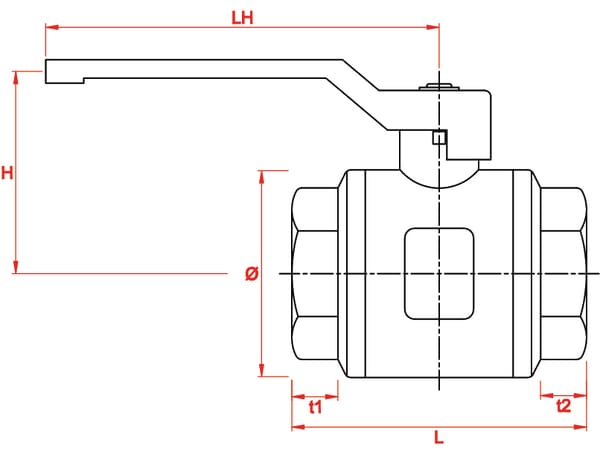

| Center bore to top distance | 79 mm |
|---|---|
| Connection 2, thread diameter | 1-1/2 Inch |
| Connection 2, thread type | BSPT |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Female |
| Connection thread diameter | 1-1/2 Inch |
| Connection thread type | BSPT |
| Connection type | Thread |
| Connection type - male/female | Female |
| Housing material | Brass CW617N, Nickel |
| LHHandle length | 135 mm |
| Max working pressure | 25 BAR |
| Max working temperature | 150 °C |
| Min working temperature | -20 °C |
| Nominal inner diameter | 38 mm |
| Number of ports | 2 |
| Number of positions | 2 |
| Outside diameter | 65.5 mm |

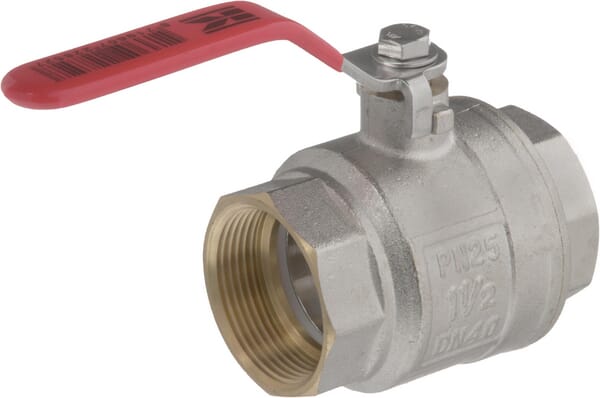

| Product details | 2-way ball valve with full bore, Nickel-plated brass enclosure (CW617N, DIN 50930-6), Ball made from hard chrome-plated brass (CW614N), Stainless steel lever and bolt (AISI304), PTFE ball seals, EPDM lever seals, Conical thread according to ISO 7-1 and DIN 2999-1 |
| Sealing material | Teflon (PTFE) |
| t1Connection thread length | 15 mm |
| t2Connection 2, thread length | 15 mm |
| Total length | 86 mm |
| Type | Manual valve |
| Unit | Each |
Logistics
| EAN | 8719607228527 |
|---|---|
| Unit of measure | EA |
| Weight | 887 g |
| Dimensions | 160 × 105 × 78 mm |
| Dangerous goods | No |
You might also like
BPA000198145
Kramp Hexagon head bolt DIN931 M22x130 steel zinc-plated 10.9 93122130109
£4.19 excl.
£5.03 incl.
In stock
Expected to ship on Friday 18 September
BPA000375706
Kramp Cable tie 2.5x100mm, violet, 100pcs TR0125100VIO
£0.78 excl.
£0.94 incl.
In stock
Expected to ship on Friday 18 September
BPA000320488
Kramp Bearing NWB07679
£14.21 excl.
£17.05 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000289462
Kramp Perforated panel SV 100x200 HS47624409
£4.12 excl.
£4.94 incl.
In stock
Expected to ship on Monday 21 September
BPA000328871

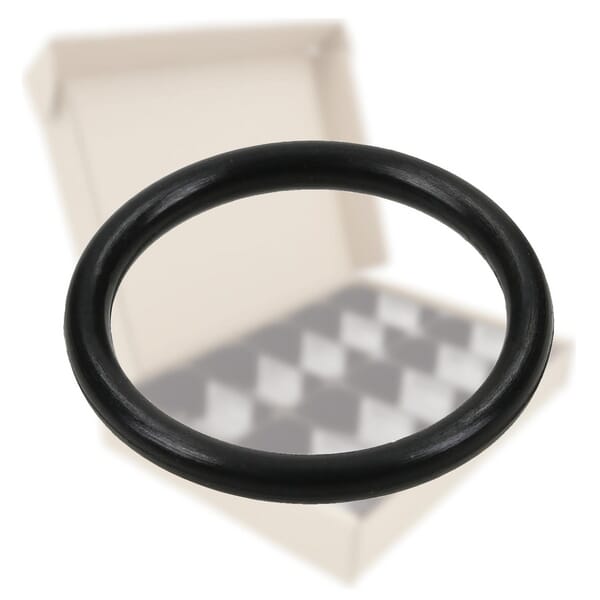

Kramp O-ring 152x3mm 70 shore OR1523P001
£1.92 excl.
£2.30 incl.
In stock
Expected to ship on Monday 21 September
BPA000053955
Kramp Flanged set screw galv M16x70 1670VR
£9.11 excl.
£10.93 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
Free shipping
BPA000136829

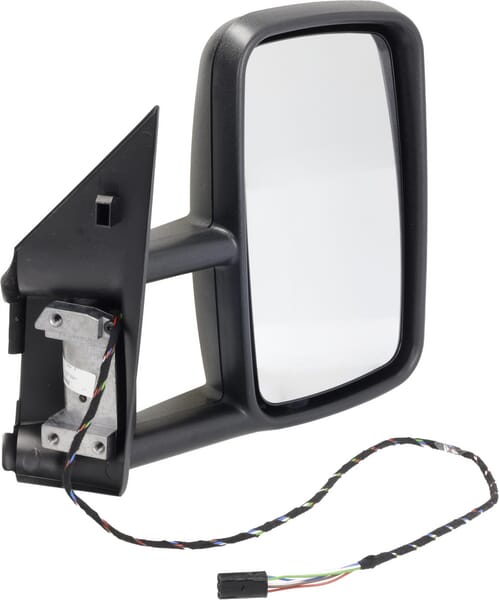

MEKRA-LANG Mirror 349 right, LHD 12V triangle cover 513490122H
