£55.55
excl. VAT
£66.66 incl. VAT
£66.66
incl. VAT
£55.55 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details

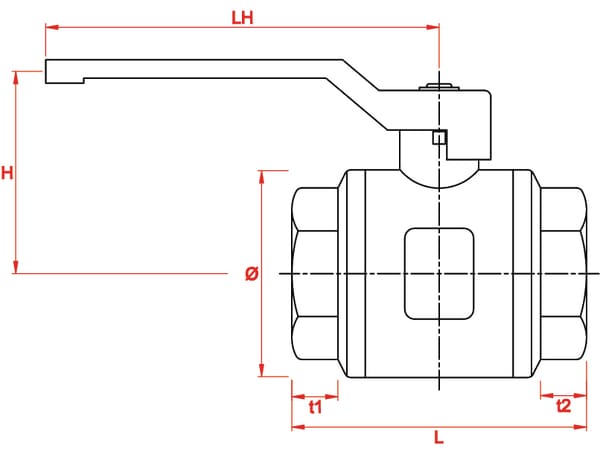

| Center bore to top distance | 79 mm |
|---|---|
| Connection 2, thread diameter | 1-1/2 Inch |
| Connection 2, thread type | BSPT |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection thread diameter | 1-1/2 Inch |
| Connection thread type | BSPT |
| Connection type | Thread |
| Connection type - male/female | Female |
| Housing material | Brass CW617N, Nickel |
| Housing width | 69 mm |
| LHHandle length | 115 mm |
| Max working pressure | 25 BAR |
| Max working temperature | 150 °C |
| Min working temperature | -20 °C |
| Nominal inner diameter | 38 mm |
| Number of ports | 2 |
| Number of positions | 2 |
| Outside diameter | 69 mm |

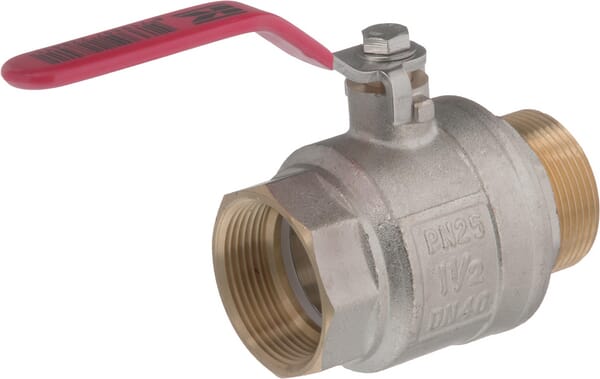

| Product details | 2-way ball valve with full bore, Nickel-plated brass enclosure (CW617N, DIN 50930-6), Ball made from hard chrome-plated brass (CW614N), Stainless steel lever and bolt, PTFE ball seals, EPDM lever seals, Conical thread according to ISO 7-1 and DIN 2999-1 |
| Sealing material | Teflon (PTFE) |
| t1Connection thread length | 17.5 mm |
| t2Connection 2, thread length | 19 mm |
| Total length | 97.5 mm |
| Type | Manual valve |
| Unit | Each |
Logistics
| EAN | 8719607228411 |
|---|---|
| Unit of measure | EA |
| Weight | 960 g |
| Dimensions | 181 × 105 × 65 mm |
| Dangerous goods | No |
You might also like
BPA000249999

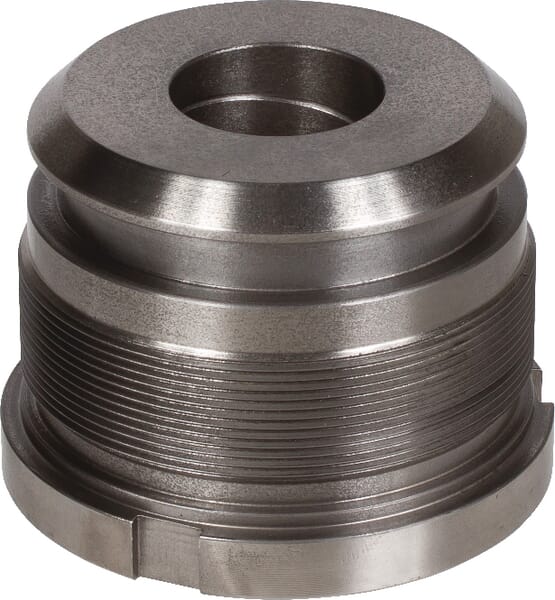

Kramp Cylinder head C25 bore 70 - 30 DS2907013030
£21.11 excl.
£25.33 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000317892
Kramp Bearing NWB06015
£98.00 excl.
£117.60 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000131657

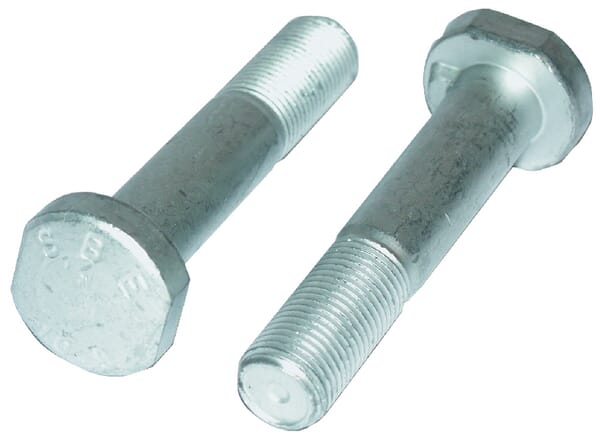

Kramp Wheel rim bolt New Holland 5112385N
£1.73 excl.
£2.08 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000138486

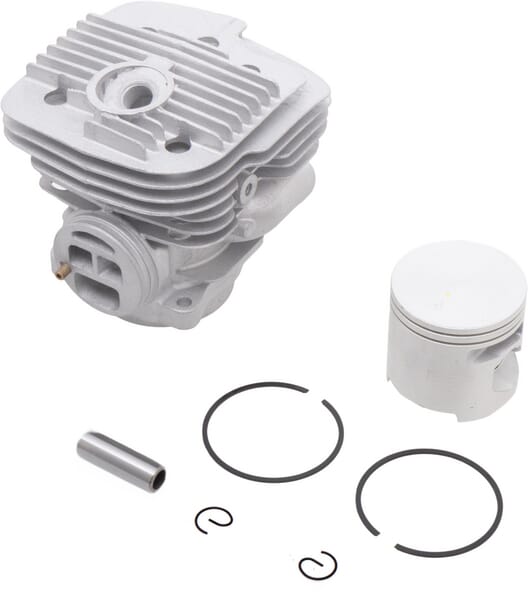

Kramp Cylinder and piston kit (complete), suitable for Husqvarna K960 / K970 544935603KR
£106.06 excl.
£127.27 incl.
In stock
Expected to ship on Monday 21 September
BPA000301851
Kramp Toggle switch MOM/Off/MOM (1) KR637H2P01B
£10.51 excl.
£12.61 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000269525

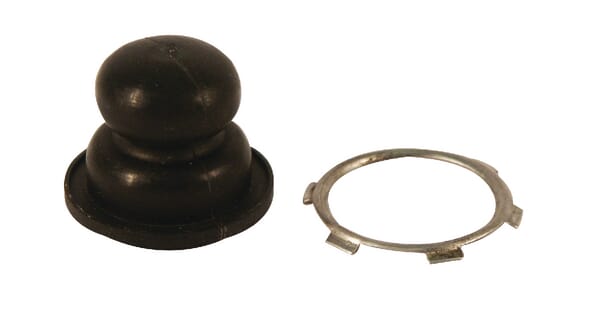

Kramp Primer Tecumseh 36045A FGP001325
