£9.28
excl. VAT
£11.14 incl. VAT
£11.14
incl. VAT
£9.28 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details

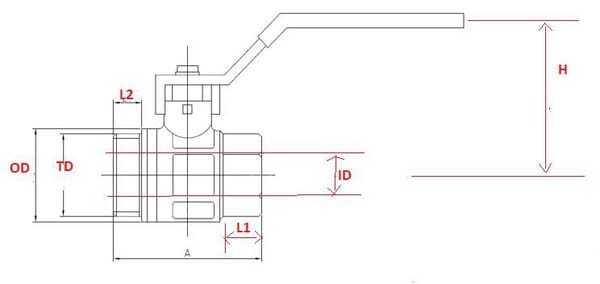

| ATotal length | 54.5 mm |
|---|---|
| Connection 2, thread diameter | 1/2 Inch |
| Connection 2, thread type | BSPT |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection thread diameter | 1/2 Inch |
| Connection thread type | BSPT |
| Connection type | Thread |
| Connection type - male/female | Female |
| HCenter bore to top distance | 46.9 mm |
| Housing material | Brass CW617N, Nickel |
| Housing width | 29 mm |
| IDNominal inner diameter | 13.5 mm |
| L1Connection thread length | 10.5 mm |
| L2Connection 2, thread length | 13 mm |
| LHHandle length | 93 mm |
| Max working pressure | 25 BAR |
| Max working temperature | 150 °C |
| Min working temperature | -20 °C |
| Number of ports | 2 |
| Number of positions | 2 |
| ODOutside diameter | 29 mm |

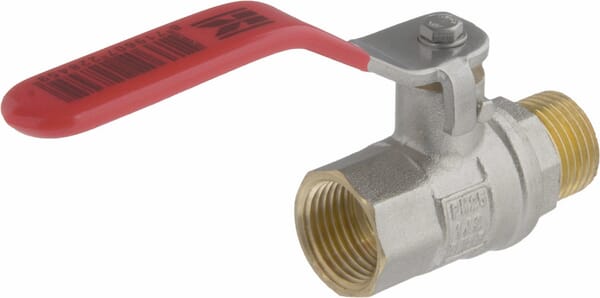

| Product details | 2-way ball valve with full bore, Nickel-plated brass enclosure (CW617N, DIN 50930-6), Ball made from hard chrome-plated brass (CW614N), Stainless steel lever and bolt, PTFE ball seals, EPDM lever seals, Conical thread according to ISO 7-1 and DIN 2999-1 |
| Sealing material | Teflon (PTFE) |
| Type | Manual valve |
| Unit | Each |
Logistics
| EAN | 8719607228459 |
|---|---|
| Unit of measure | EA |
| Weight | 184 g |
| Dimensions | 130 × 45 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000327820
Kramp O-ring 249.3x5.7mm 70 shore OR24930570P001
£3.11 excl.
£3.73 incl.
In stock
Expected to ship on Monday 21 September
BPA000299046
Kramp Flat round hex screw M3x16 10.9 ZP ISO7380316109
£0.12 excl.
£0.14 incl.
In stock
Expected to ship on Monday 21 September
BPA000302619

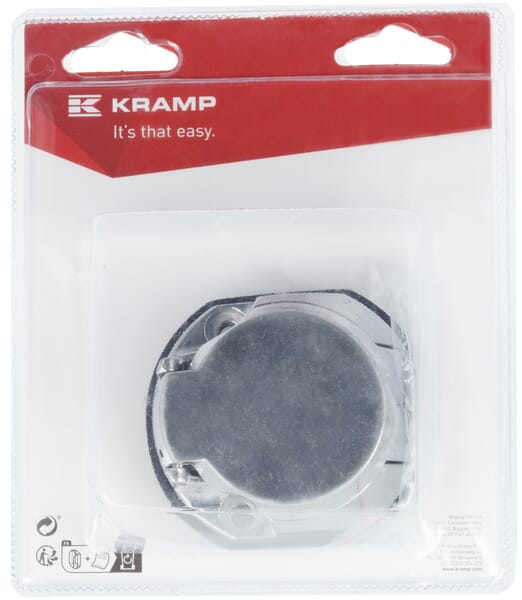

Kramp Socket 7-pin metal with rubber seal Kramp blister KRLA403092P001B
