£9.35
excl. VAT
£11.22 incl. VAT
£11.22
incl. VAT
£9.35 excl. VAT
In stock
Expected to ship on Tuesday 22 September
About this product

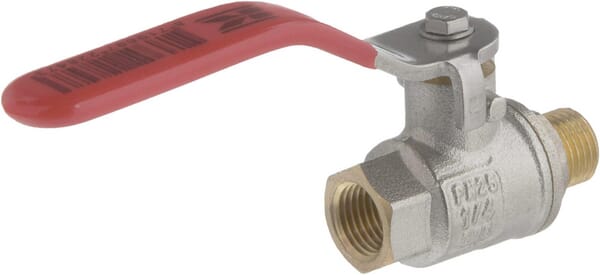

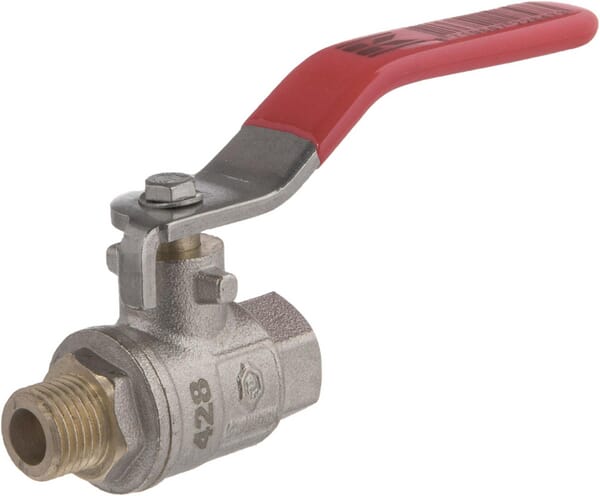

A 2-way manual ball valve with 1/4 inch BSPT female connection and 1/4 inch BSPT male connection, supplied as a single piece. The valve features a full bore design with a hard chrome-plated brass ball (CW614N) and is housed in nickel-plated brass (CW617N) compliant with DIN 50930-6. Sealing is achieved using PTFE (Teflon) ball seals and EPDM lever seals. The stainless steel lever handle measures 82 mm in length, with the valve body 46.7 mm long overall and 23.5 mm in housing width. The nominal inner bore diameter is 8 mm. Operating parameters include a maximum working pressure of 25 bar, maximum temperature of 150 °C, and minimum temperature of −20 °C. The valve weighs 130 g and carries EAN 8719607228473.
Product details

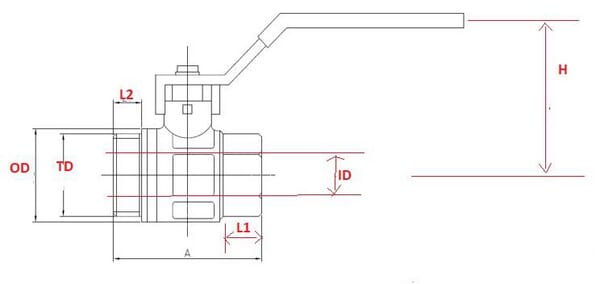

| ATotal length | 46.7 mm |
|---|---|
| Connection 2, thread diameter | 1/4 Inch |
| Connection 2, thread type | BSPT |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection thread diameter | 1/4 Inch |
| Connection thread type | BSPT |
| Connection type | Thread |
| Connection type - male/female | Female |
| HCenter bore to top distance | 38 mm |
| Housing material | Brass CW617N, Nickel |
| Housing width | 23.5 mm |
| IDNominal inner diameter | 8 mm |
| L1Connection thread length | 9 mm |
| L2Connection 2, thread length | 9 mm |
| LHHandle length | 82 mm |
| Max working pressure | 25 BAR |
| Max working temperature | 150 °C |
| Min working temperature | -20 °C |
| Number of ports | 2 |
| Number of positions | 2 |
| ODOutside diameter | 23.5 mm |
| Product details | 2-way ball valve with full bore, Nickel-plated brass enclosure (CW617N, DIN 50930-6), Ball made from hard chrome-plated brass (CW614N), Stainless steel lever and bolt, PTFE ball seals, EPDM lever seals, Conical thread according to ISO 7-1 and DIN 2999-1 |
| Sealing material | Teflon (PTFE) |
| Type | Manual valve |
| Unit | Each |
Logistics
| EAN | 8719607228473 |
|---|---|
| Unit of measure | EA |
| Weight | 130 g |
| Dimensions | 67 × 58 × 29 mm |
| Dangerous goods | No |
You might also like
BPA000073954

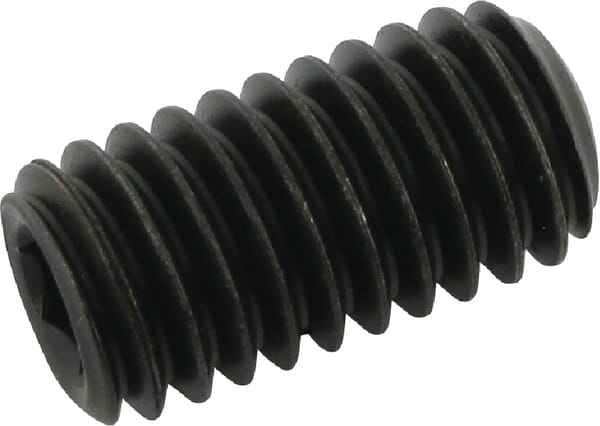

Kramp H.sock.bolt 1/2x1 BSW 2517INB12
£0.88 excl.
£1.06 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000195689
Kramp Hexagon socket head cap screw DIN912 M12x75 steel zinc-plated 8.8 9121275
£0.98 excl.
£1.18 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000305795
Kramp Hose ear clamp 11 - 13mm (2) KROOR1113P02B
£1.34 excl.
£1.61 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000316523

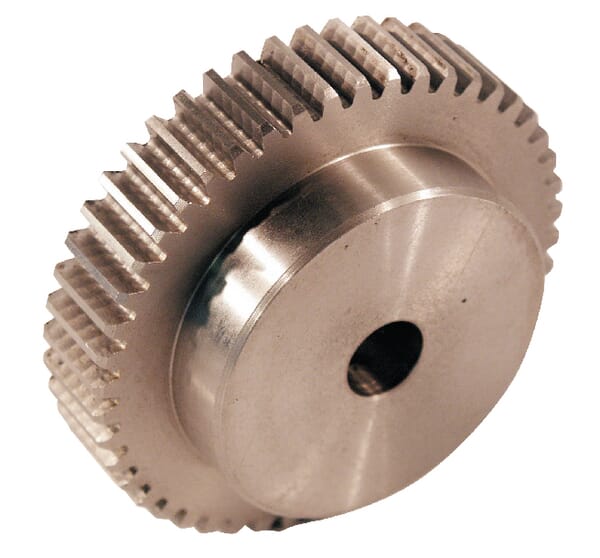

Kramp Spur gear module 2 - Z=35 MOD235
