£18.81
excl. VAT
£22.57 incl. VAT
£22.57
incl. VAT
£18.81 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

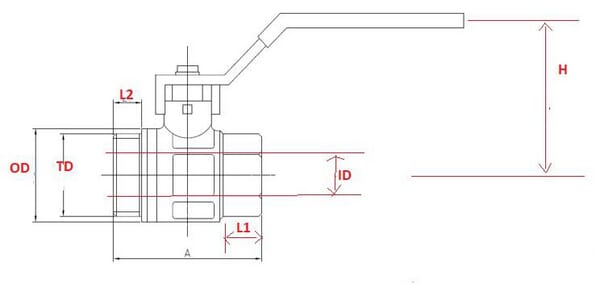

| ATotal length | 70.5 mm |
|---|---|
| Connection 2, thread diameter | 1 Inch |
| Connection 2, thread type | BSPT |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection thread diameter | 1 Inch |
| Connection thread type | BSPT |
| Connection type | Thread |
| Connection type - male/female | Female |
| HCenter bore to top distance | 58.3 mm |
| Housing material | Brass CW617N, Nickel |
| Housing width | 42.5 mm |
| IDNominal inner diameter | 23 mm |
| L1Connection thread length | 14.5 mm |
| L2Connection 2, thread length | 17 mm |
| LHHandle length | 110 mm |
| Max working pressure | 25 BAR |
| Max working temperature | 150 °C |
| Min working temperature | -20 °C |
| Number of ports | 2 |
| Number of positions | 2 |
| ODOutside diameter | 42.5 mm |

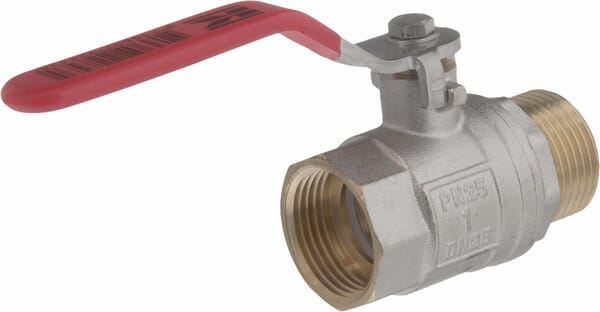

| Product details | 2-way ball valve with full bore, Nickel-plated brass enclosure (CW617N, DIN 50930-6), Ball made from hard chrome-plated brass (CW614N), Stainless steel lever and bolt, PTFE ball seals, EPDM lever seals, Conical thread according to ISO 7-1 and DIN 2999-1 |
| Sealing material | Teflon (PTFE) |
| Type | Manual valve |
| Unit | Each |
Logistics
| EAN | 8719607228435 |
|---|---|
| Unit of measure | EA |
| Weight | 407 g |
| Dimensions | 155 × 80 × 45 mm |
| Dangerous goods | No |
You might also like
BPA000179488
Kramp Countersunk head screw DIN7991 M5x12 stainless steel A2 7991512RVSP025
£0.15 excl.
£0.18 incl.
In stock
Expected to ship on Friday 18 September
BPA000290785
Kramp Flat round hex screw M8x45 10.9 ZP ISO7380ULF845109
£0.67 excl.
£0.80 incl.
In stock
Expected to ship on Monday 21 September
BPA000198404
Kramp Hexagon head bolt DIN931 M36x120 steel zinc-plated 8.8 93136120
£9.53 excl.
£11.44 incl.
In stock
Expected to ship on Friday 18 September
BPA000334066
Kramp O-ring 106x2mm 70 shore OR1062P001
£1.39 excl.
£1.67 incl.
In stock
Expected to ship on Monday 21 September
BPA000329581
Kramp O-ring 39.35x2.62mm 70 shore 10x OR3935262P010
£2.37 excl.
£2.84 incl.
In stock
Expected to ship on Monday 21 September
BPA000087977

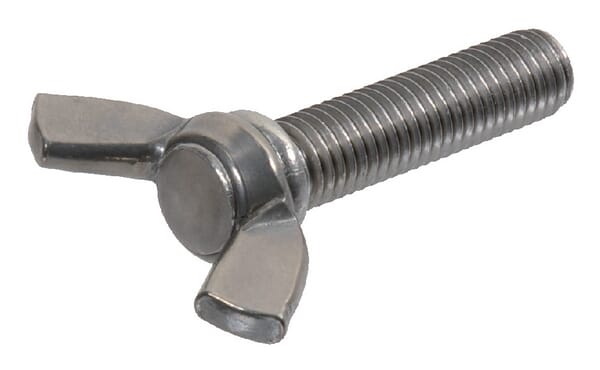

Kramp Wing screw DIN316 M 6x10 stainless steel 316610RVSAMP001
