£10.07
excl. VAT
£12.08 incl. VAT
£12.08
incl. VAT
£10.07 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details

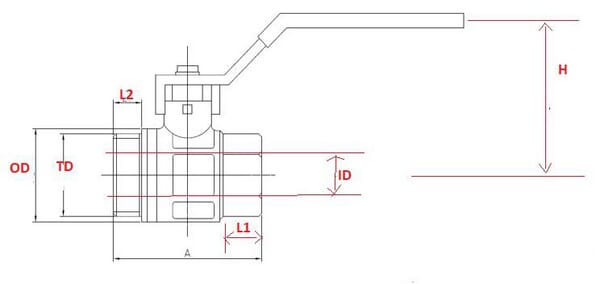

| ATotal length | 44.5 mm |
|---|---|
| Connection 2, thread diameter | 3/8 Inch |
| Connection 2, thread type | BSPT |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection thread diameter | 3/8 Inch |
| Connection thread type | BSPT |
| Connection type | Thread |
| Connection type - male/female | Female |
| HCenter bore to top distance | 38 mm |
| Housing material | Brass CW617N, Nickel |
| Housing width | 23.5 mm |
| IDNominal inner diameter | 9 mm |
| L1Connection thread length | 9 mm |
| L2Connection 2, thread length | 9 mm |
| LHHandle length | 83 mm |
| Max working pressure | 25 BAR |
| Max working temperature | 150 °C |
| Min working temperature | -20 °C |
| Number of ports | 2 |
| Number of positions | 2 |
| ODOutside diameter | 23.5 mm |

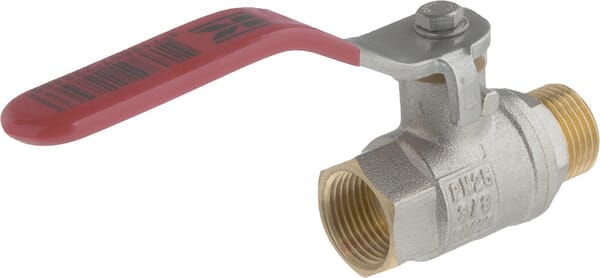

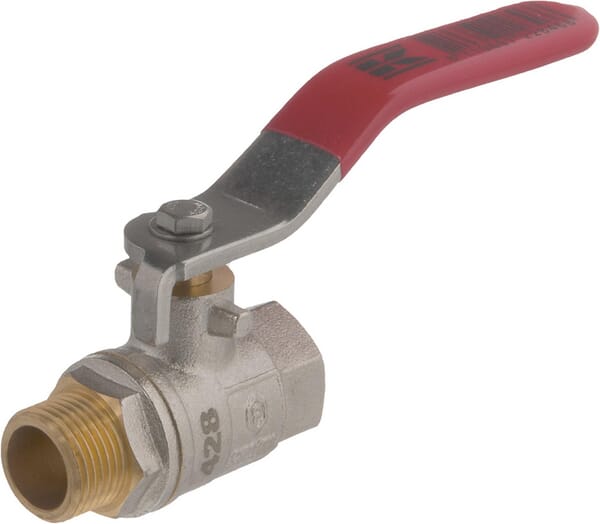

| Product details | 2-way ball valve with full bore, Nickel-plated brass enclosure (CW617N, DIN 50930-6), Ball made from hard chrome-plated brass (CW614N), Stainless steel lever and bolt, PTFE ball seals, EPDM lever seals, Conical thread according to ISO 7-1 and DIN 2999-1 |
| Sealing material | Teflon (PTFE) |
| Type | Manual valve |
| Unit | Each |
Logistics
| EAN | 8719607228466 |
|---|---|
| Unit of measure | EA |
| Weight | 114 g |
| Dimensions | 111 × 50 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000151337
Kramp Connection nut DIN6334 M6x1.00 steel zinc-plated Class 6 6334630
£0.16 excl.
£0.19 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000304841
Kramp Softshell Jacket Quilted black 3XL KW201601701062
£54.84 excl.
£65.81 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000283803

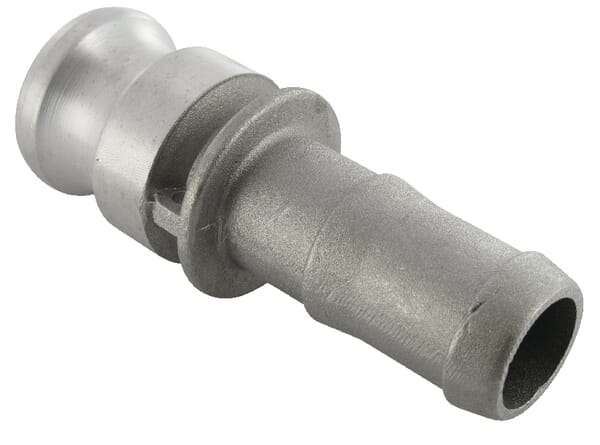

Kramp Camlock Type E 3/4" hose end Stainless steel HCN100ESS019
