£211.71
excl. VAT
£254.05 incl. VAT
£254.05
incl. VAT
£211.71 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September

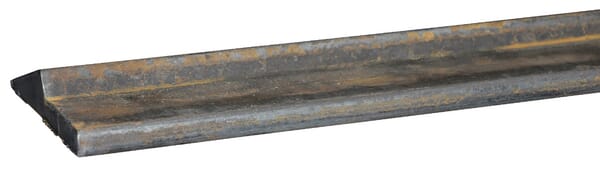

Product details
| Application range | Grip, excavator and crane shovels |
|---|---|

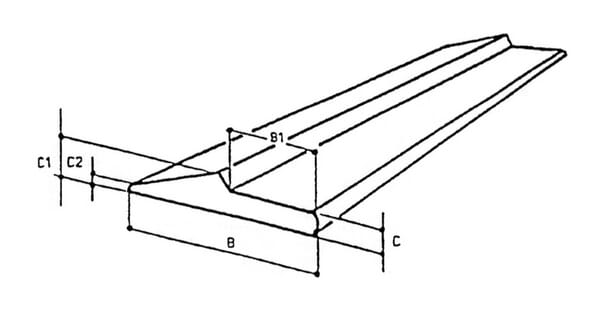

| B1Welded part width | 46 mm |
| BEdge strip total width | 100 mm |
| Benefits | Long service life, Easy to replace |
| C1Thickness | 21 mm |
| C2Min. working thickness | 3.5 mm |
| CMounting height | 13 mm |
| Details | Wear resistant, Full welding on front, "chain welding" on reverse |
| Edge strip total length | 3000 mm |
| Hardness HB | 500 |
| Long description | Application:, Grip, excavator and crane shovels, Benefits:, Long service life, Easy to replace, Details:, Wear resistant, Full welding on front, "chain welding" on reverse, Technical information:, 500 HB steel can be welded either electrically or using the MIG/MAG process. It is extremely important that the material to be welded is pre-heated to between 50 and 75°C and that the welded material is cooled in a controlled manner, For electric welding: an alkaline welding rod is recommended, but a standard welding rod can also be used, MIG/MAG: SG3 wire is recommended, but a standard SG2 wire can also be used |
| Technical info | 500 HB steel can be welded either electrically or using the MIG/MAG process. It is extremely important that the material to be welded is pre-heated to between 50 and 75°C and that the welded material is cooled in a controlled manner, For electric welding: an alkaline welding rod is recommended, but a standard welding rod can also be used, MIG/MAG: SG3 wire is recommended, but a standard SG2 wire can also be used |
| Unit | Each |
| Weight | 30 kg |
Logistics
| EAN | 5700036774375 |
|---|---|
| Unit of measure | EA |
| Weight | 29500 g |
| Dimensions | 3001 × 102 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000361126

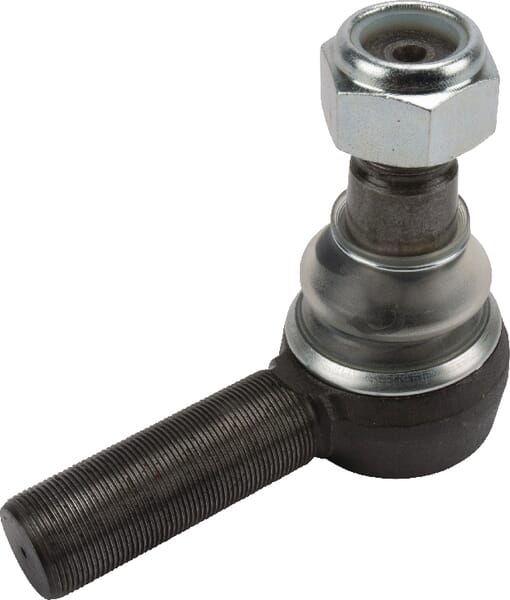

Kramp Tie rod end SHP436KR
£64.80 excl.
£77.76 incl.
In stock
Expected to ship on Friday 18 September
BPA000230295

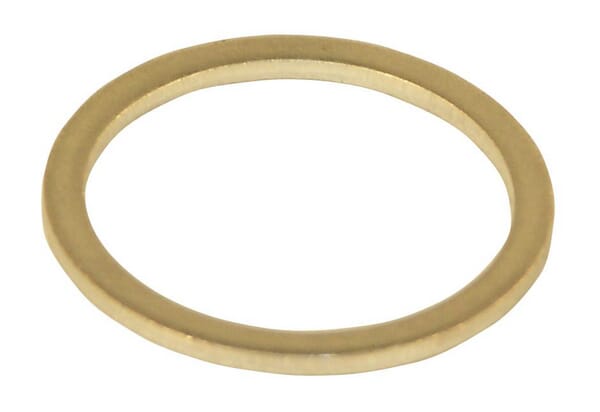

Kramp Aluminium washer 28x34x2,0mm ALU283420
£0.77 excl.
£0.92 incl.
In stock
Expected to ship on Friday 18 September
BPA000088525

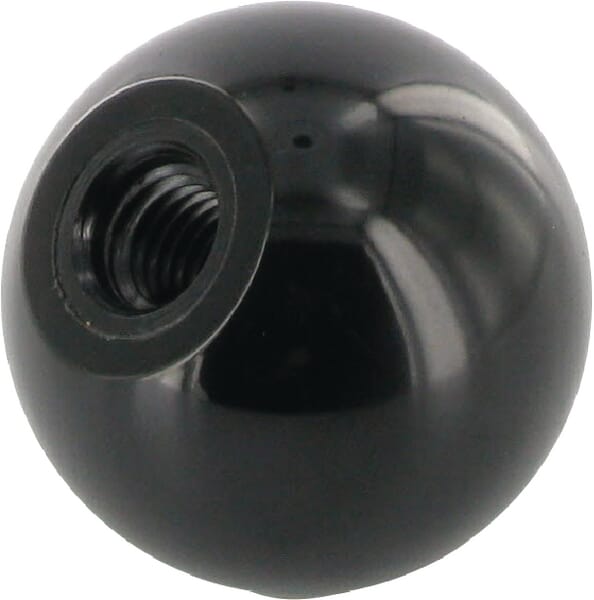

Kramp Ball head M6x25mm 319C0625
£1.94 excl.
£2.33 incl.
In stock
Expected to ship on Friday 18 September
BPA000198770
Kramp Hexagon head bolt DIN931 M8x50 steel zinc-plated 8.8 931850
£0.16 excl.
£0.19 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000189963

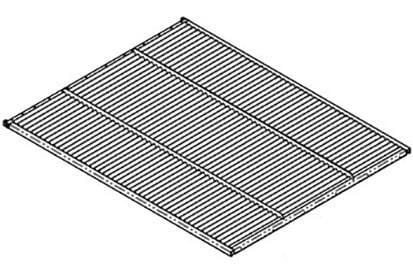

Kramp Sieve 84460101N
