£98.97
excl. VAT
£118.76 incl. VAT
£118.76
incl. VAT
£98.97 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application | Universal |
|---|---|

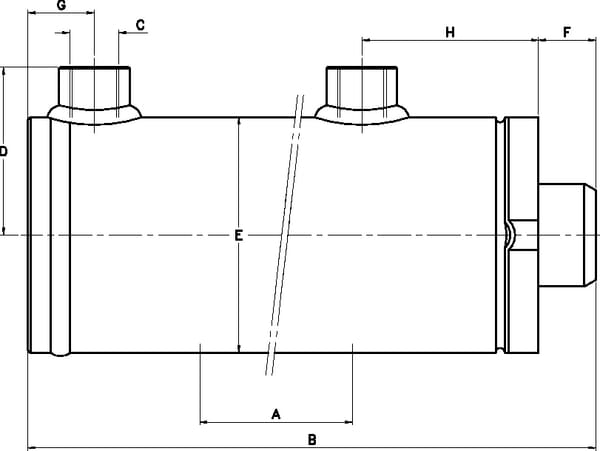

| AStroke | 600 mm |
| BMin. length | 746 mm |
| CMounting thread diameter - cylinder connection | 3/8 Inch |
| Cylinder material | Steel ST52 |
| Cylinder material tolerance class code | H10 |
| DCylinder center to oil connection end distance | 42 mm |
| EOutside diameter | 50 mm |
| FCylinder end to rod end distance | 45 mm |
| GOil connection centre to cylinder end distance - cylinder side | 16.5 mm |
| Head nut material | Cast iron |
| HOil connection centre to cylinder end distance - rod side | 47 mm |
| Inside diameter | 40 mm |
| Max. length | 1346 mm |
| Max. piston speed | 0.1 m/s |
| Max. working pressure | 250 BAR |
| Max. working temperature | 85 °C |
| Min. working temperature | -25 °C |
| Mounting thread diameter - rod connection | 3/8 Inch |
| Mounting thread type - rod connection | G |
| Mounting type - cylinder side connection | No mounting |
| Mounting type - rod side connection | No mounting |
| Nominal pressure | 200 BAR |
| Oil connection material | Steel |
| Piston diameter | 40 mm |
| Product details | Assembled double-acting KRAMP cylinder, without mounts, 250 bar series, Spraypainted with primer, Reusable mechanical cylinder head lock, Maximum radial load: 10% of the axial force, Maximum operating pressure depends on the maximum buckling load, The maximum buckling load can be found using the cylinder software, Interchangeable with other brands, Medium: mineral oil, HLP ISO VG 32 to ISO VG 46, Purity of the medium : ISO 4406 22/20/17 or NAS 9 |
| Pros | Unique innovative construction with special piston locking, Simple assembly and disassembly |
| Rod diameter | 25 mm |
| Rod material | Steel 20MnV6 |
| Rod surface roughness | 0.2 µm |
| Rod surface treatment | Chromated |
| Series | D-C |
| Type | Double acting |
| Unit | Each |
| Weight | 7.4 kg |
Logistics
| EAN | 5700038821954 |
|---|---|
| Unit of measure | EA |
| Weight | 7500 g |
| Dimensions | 751 × 76 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000083964
Kramp Share RH 309898N
£38.91 excl.
£46.69 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000304648
Kramp Polo Sweatshirt black 5XL KW106930501068
£43.74 excl.
£52.49 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000360488

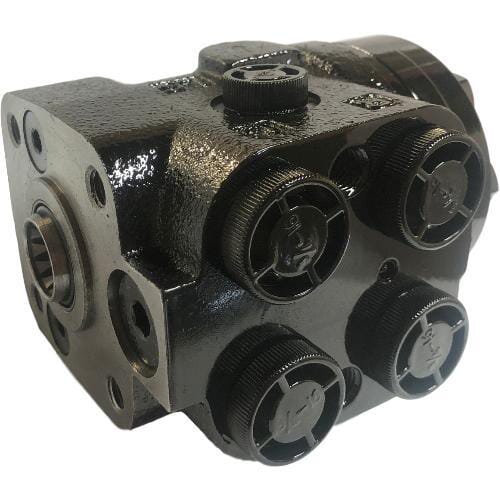

Kramp Orbital steering unit 200cc SOSPC200LSTKR
