£170.69
excl. VAT
£204.83 incl. VAT
£204.83
incl. VAT
£170.69 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details

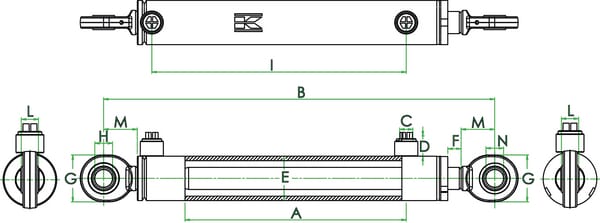

| Application | Universal |
|---|---|
| AStroke | 350 mm |
| BMin. mounting holes distance | 564 mm |
| COil connection inside diameter | 20 mm |
| Cylinder material | Steel ST52 |
| Cylinder material tolerance class code | H10 |
| DOil connection length | 17 mm |
| FCylinder end to mounting bush distance | 15 mm |
| GMounting bush outside diameter | 64 mm |
| Head nut material | Cast iron |
| HMounting hole diameter - cylinder connection | 25 mm |
| Inside diameter | 50 mm |
| IOil connections distance | 387.5 mm |
| Max. piston speed | 0.1 m/s |
| Max. working pressure | 250 BAR |
| Max. working temperature | 85 °C |
| Min. length | 564 mm |
| Min. working temperature | -25 °C |
| MMounting hole center to head end distance | 45 mm |
| Mounting diameter (width) - cylinder connection | 25 mm |
| Mounting diameter (width) - rod connection | 25 mm |
| Mounting thread diameter - rod connection | 3/8 Inch |
| Mounting thread type - rod connection | BSP |
| Mounting type - cylinder side connection | Bearing |
| Mounting type - rod side connection | Bearing |
| NMounting hole diameter - rod connection | 25 mm |
| Nominal pressure | 200 BAR |
| Oil connection material | Steel |
| Piston diameter | 50 mm |

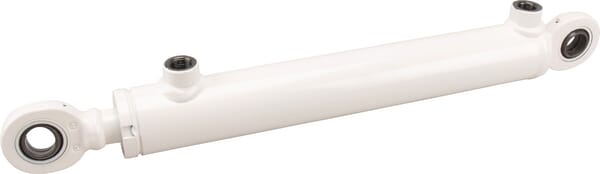

| Product details | Assembled double-acting KRAMP cylinder, with mounts, 250 bar series, Rod side: Weld-on rod end with spherical bearing, Base side: Weld-on base end with spherical bearing, Spraypainted with primer, Reusable mechanical cylinder head lock, Maximum radial load: 10% of the axial force, Maximum operating pressure depends on the maximum buckling load, The maximum buckling load can be found using the cylinder software, Interchangeable with other brands, Medium: mineral oil, HLP ISO VG 32 to ISO VG 46, Purity of the medium : ISO 4406 22/20/17 or NAS 9 |
| Pros | Fully assembled, ready to use, With mounts, Unique innovative construction with special piston locking, Simple assembly and disassembly |
| Rod diameter | 30 mm |
| Rod material | Steel 20MnV6 |
| Rod surface roughness | 0.2 µm |
| Rod surface treatment | Chromated |
| Type | Double acting |
| Unit | Each |
Logistics
| EAN | 8719493725032 |
|---|---|
| Unit of measure | EA |
| Weight | 7480 g |
| Dimensions | 630 × 100 × 60 mm |
| Dangerous goods | No |
You might also like
BPA000240903
Kramp Front window lower CCGTAK053
£67.37 excl.
£80.85 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000054374

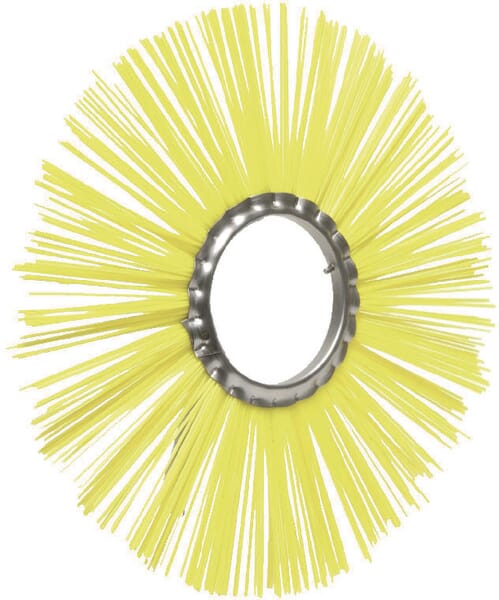

Kramp Rotary brush 400x5" full cup: 20 degrees 1715125400
£13.63 excl.
£16.36 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000322740
Kramp Bearing NWB07966
£12.44 excl.
£14.93 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000320410
Kramp Bearing NWB07599
£24.13 excl.
£28.96 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000079368

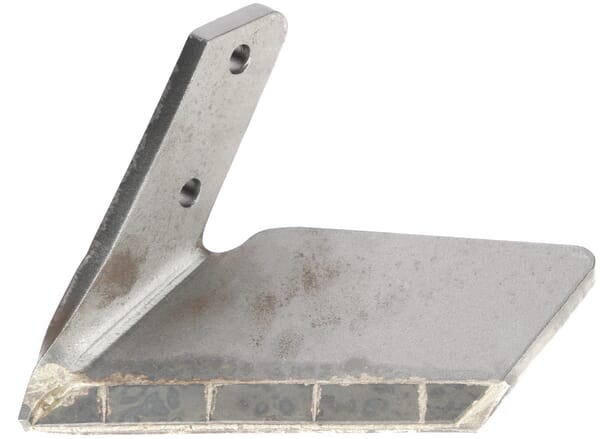

Kramp Wing share LH carbide 3002403CN
