£440.43
excl. VAT
£528.52 incl. VAT
£528.52
incl. VAT
£440.43 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

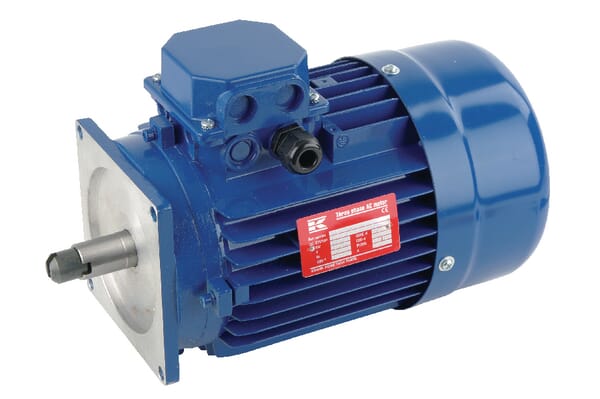

Product details
| Application range | Kramp Hydraulic powerpacks MPP |
|---|---|
| Benefits | High level of operational reliability |
| Colour | RAL 5000 Violet blue |
| cos «M,1 | 0.75 |
| Details | The motor has an A-mark bearing |
| Height shaft with key | 19 mm |
| In | 1.73 A |
| Isolation class | F |
| Key width | 8 mm |
| Moments of inertia (kgm²) | 0.0018 kg·m² |
| N1 | 1390 r/min |
| Noise level | 58 dB(A) |
| Norm | IEC/DIN - VDE 0530. |
| Phase ~ | 3 |
| PN | 0.75 kW |
| Power factor cos phi 100% | 0.79 |
| Power nominal | 0.75 kW |
| Properties | Aluminium housing |
| Protection class | IP 55 |
| Revolutions max. | 1500 rpm r/min |
| Rotations per minute | 1420 r/min |
| Shaft diameter | 19 mm |
| Shaft length | 29.6 mm |
| Swivel | M20 x 1.5 |
| Technical info | At 230/400 V: Y-configuration (300), At 400/690 V: Delta configuration (500) |
| Total length | 281 mm |
| Unit | Each |
| Voltage | 230/400V 50Hz V |
| Weight | 9.1 kg |
Logistics
| EAN | 8716106939855 |
|---|---|
| Unit of measure | EA |
| Weight | 12289 g |
| Dimensions | 315 × 260 × 180 mm |
| Dangerous goods | No |
You might also like
BPA000181995
Kramp Water pump suitable for New Holland 81718104KR
£66.03 excl.
£79.24 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000357858
Kramp Sprocket Simplex 76 teeth 1/2" chain 08 B-1 SE1276
£75.39 excl.
£90.47 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000243750

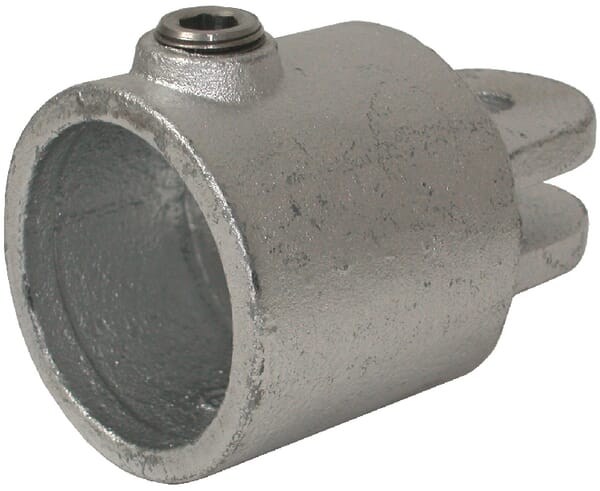

Kramp Hinge part female 173F-D 48,3mm C36G40
£8.86 excl.
£10.63 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000361815
Kramp Hose PU DUCT-1.4 127mm SL114127
£60.69 excl.
£72.83 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000003122

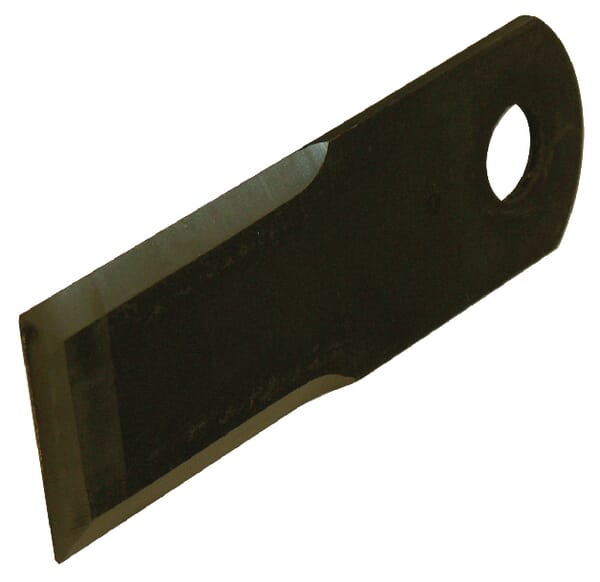

Kramp Rotary straw chopper knife 0007557860KR
£27.69 excl.
£33.23 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000362190
Kramp Hose Trico Pro II 1 1/2" SL51638
£6.83 excl.
£8.20 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000203216

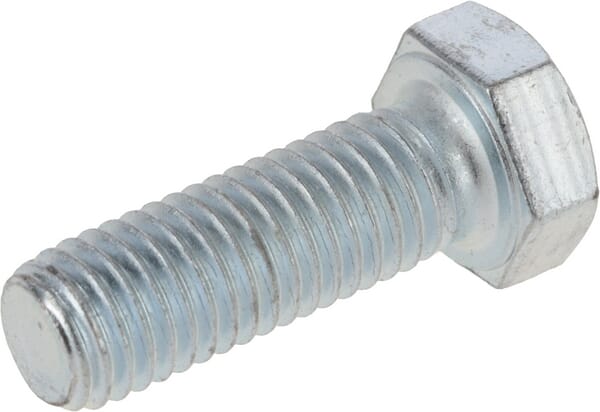

Kramp Hexagon head bolt DIN933 M12x35 steel zinc-plated 10.9 9331235109
