£94.72
excl. VAT
£113.66 incl. VAT
£113.66
incl. VAT
£94.72 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Application range | Unit assembly, Combination with worm gear reducer |
|---|---|

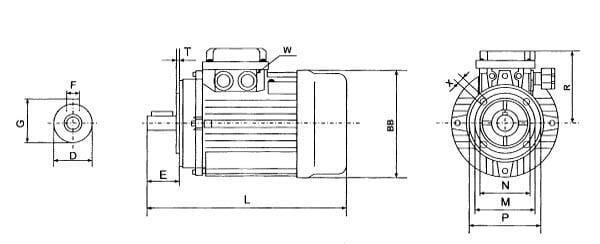

| BB | 117 mm |
| Benefits | High level of operational reliability |
| Colour | RAL 5000 Violet blue |
| Construction | IM 3601 (B14) |
| Cooling system | Air |
| cos φ | 0.56 |
| Details | The motor has an A-mark bearing |
| Efficiency | IE2 |
| Frame size | 56.0 mm |
| In | 0.35 A |
| Insulation class | 55 |
| Isolation class | F |
| Key width | 3 mm |
| Length of centring | 2.5 mm |
| LTotal length | 196 mm |
| Moments of inertia (kgm²) | 0.0002 kg·m² |
| MPitch circle diameter | 65 mm |
| N1 | 1360 r/min |
| NDiameter of centring | 50 mm |
| Noise level | 50 dB(A) |
| Nominal torque | 3.1 nm |
| Norm | IEC/DIN - VDE 0530 |
| Number of phases | 3 |
| PDiameter lead in edge | 80 mm |
| Phase ~ | 3 |
| PN | 0.06 kW |
| Power factor | 0.55 |
| Power factor cos phi 100% | 0.55 |
| Properties | Up to and including size 90: aluminium housing, From size 100: cast iron housing |
| Protection class | IP 55 |
| Rated current | 0.29 A |
| Rated frequency | 50-50 Hz |
| Rated voltage | 400 V |
| RDistance center shaft to end terminal box | 100 mm |
| Revolutions max. | 1500 r/min |
| Shaft diameter | 9 mm |
| Shaft length | 20 mm |
| Size | 56 Inch |
| Swivel | M16x1,5 |

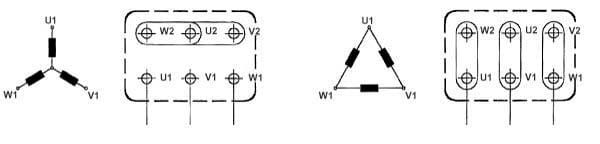

| Technical info | At 230/400 V: Y-configuration (300), At 400/690 V: Delta configuration (500) |

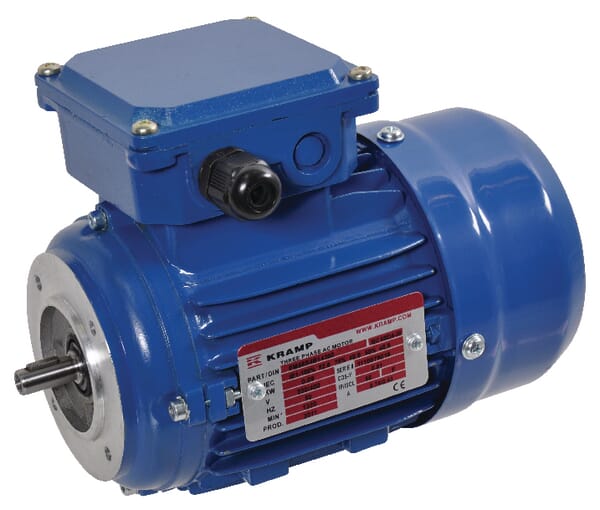

| Type | Rotary current asynchronous motor |
| Unit | Each |
| Voltage | 230 V, 400 V |
| Voltage type | AC |
| Weight | 2.9 kg |
| XDiameter mounting holes | M5 mm |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8716106887347 |
|---|---|
| Unit of measure | EA |
| Weight | 3109 g |
| Dimensions | 220 × 200 × 228 mm |
| Dangerous goods | No |
You might also like
BPA000322799
Kramp Bearing NWB08029
£47.72 excl.
£57.26 incl.
In stock
Expected to ship on Monday 21 September
BPA000372465
Kramp Hose toplink L=900+SKPM12C08 TOP9H0900
£30.72 excl.
£36.87 incl.
In stock
Expected to ship on Monday 21 September
BPA000331401
Kramp O-ring 9.5x1.5 75 shore Viton 10x OR950150VP010
£2.52 excl.
£3.02 incl.
In stock
Expected to ship on Monday 21 September
BPA000337929

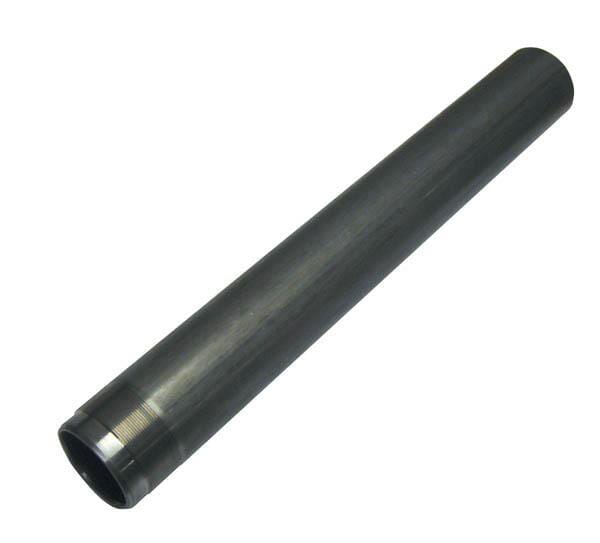

Kramp PB bore PC30 stroke 300 L=331.5 PC29030050300
