£103.82
excl. VAT
£124.58 incl. VAT
£124.58
incl. VAT
£103.82 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Unit assembly, Combination with worm gear reducer |
|---|---|

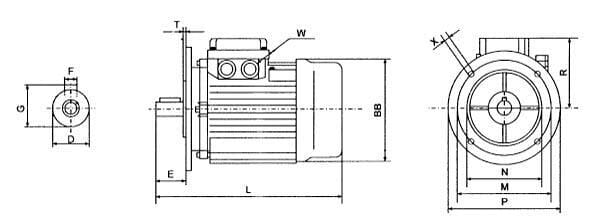

| BBDiameter fan cover | 117 mm |
| Benefits | High level of operational reliability |
| Colour | RAL 5000 Violet blue |
| Cooling system | Air |
| Details | The motor has an A-mark bearing |
| Efficiency | IE1 |
| Frame size | 56.0 mm |
| Insulation class | 55 |
| Insulation class according to IEC | F |
| Key width | 3 mm |
| Length of centring | 2.5 mm |
| LTotal length | 196 mm |
| Moments of inertia (kgm²) | 0.0001900199 kg·m² |
| MPitch circle diameter | 100 mm |
| N1 | 1360 r/min |
| NDiameter of centring | 80 mm |
| Noise level | 50 dB(A) |
| Nominal torque | 3.2 nm |
| Norm | IEC/DIN - VDE 0530. |
| Number of phases | 3 |
| PN | 0.06 kW |
| POutside diameter flange | 120 mm |
| Power factor | 0.55 |
| Properties | Up to and including size 90: aluminium housing, From size 100: cast iron housing |
| Rated current | 0.35 A |
| Rated frequency | 50-50 Hz |
| Rated voltage | 400 V |
| RDistance center shaft to end terminal box | 100 mm |
| Revolutions max. | 1 500 ot./min. r/min |
| Shaft diameter | 9 mm |
| Shaft length | 20 mm |
| Swivel | M16x1,5 |

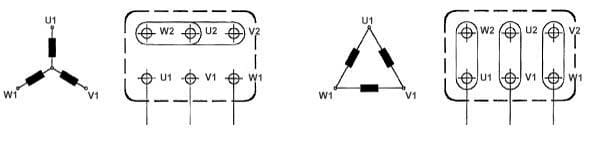

| Technical info | At 230/400 V: Y-configuration (300), At 400/690 V: Delta configuration (500) |
| Unit | Each |
| Voltage type | AC |
| Weight | 2.9 kg |
| XDiameter mounting holes | 7 mm |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8716106887323 |
|---|---|
| Unit of measure | EA |
| Weight | 3226 g |
| Dimensions | 226 × 180 × 144 mm |
| Dangerous goods | No |
You might also like
BPA000337887

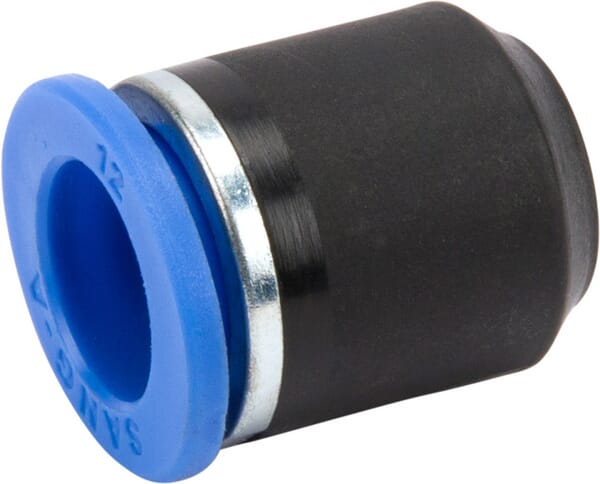

Kramp Push-in fitting PC12P
£4.65 excl.
£5.58 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000198407
Kramp Hexagon head bolt DIN931 M36x140 steel 10.9 93136140109B
£18.53 excl.
£22.24 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000203983

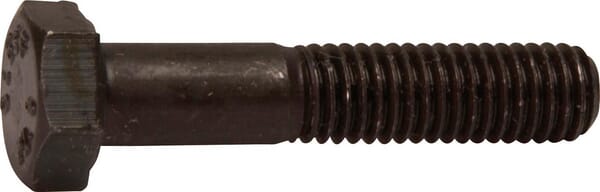

Kramp Hexagon head bolt DIN960 M10x1.00x70 10.9 960101070109B
£0.63 excl.
£0.76 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000360756

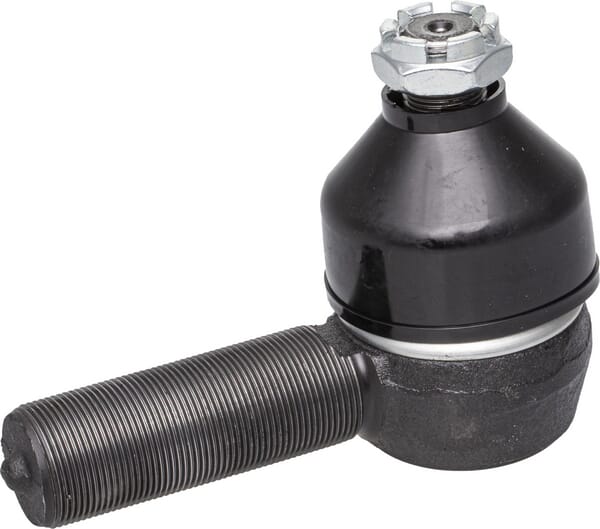

Kramp Inner tie rod 3141529R93 SHP019KR
£33.79 excl.
£40.55 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000187603

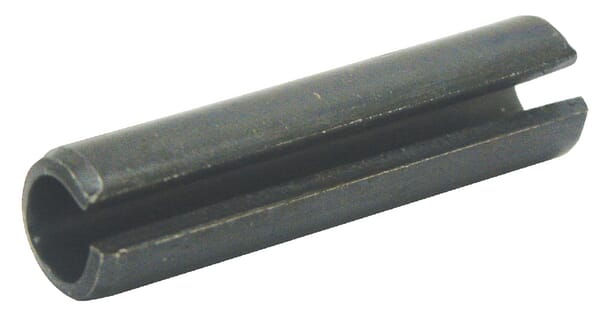

Kramp Roll pin, heavy duty 6x60mm ISO8752 8752660
