£84.45
excl. VAT
£101.34 incl. VAT
£101.34
incl. VAT
£84.45 excl. VAT
In stock
Expected to ship on Tuesday 22 September

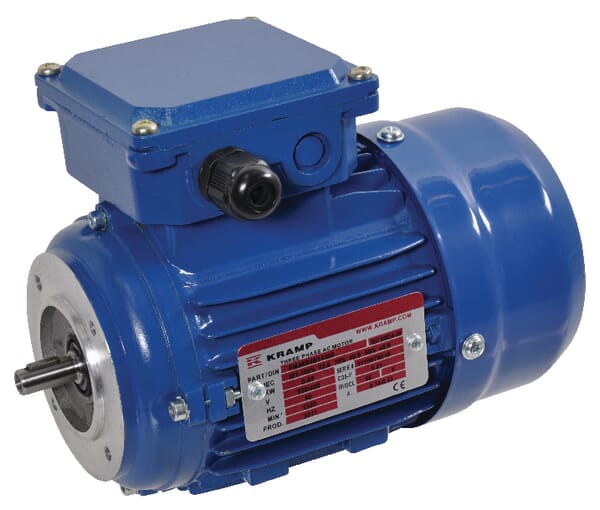

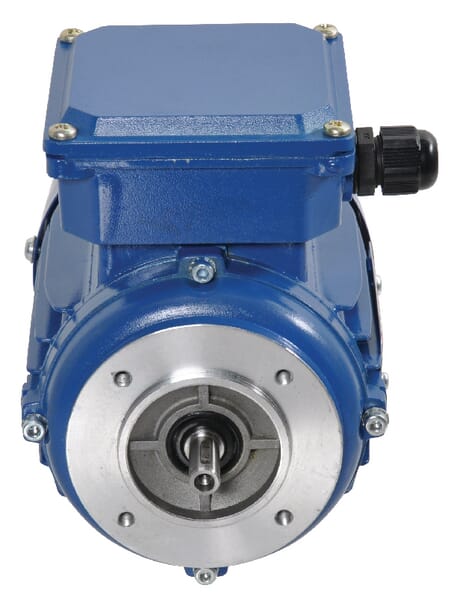

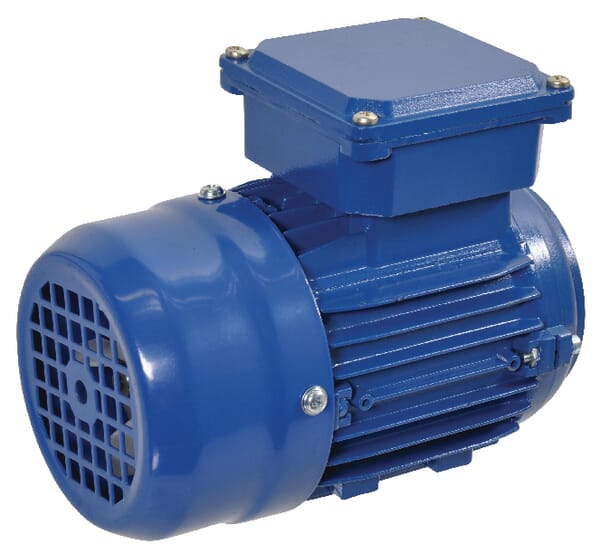

Product details
| Application range | Unit assembly, Combination with worm gear reducer |
|---|---|

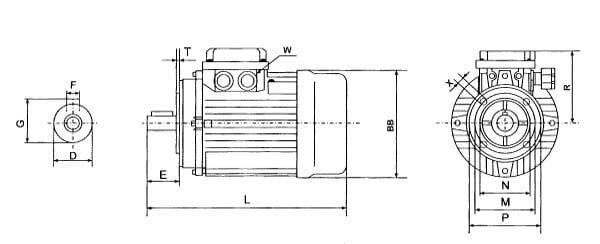

| BB | 117 mm |
| Benefits | High level of operational reliability |
| Colour | RAL 5000 Violet blue |
| cos φ | 0.72 |
| Details | The motor has an A-mark bearing |
| eta % | 53 % |
| Frame size | 56.0 mm |
| In | 0.36 A |
| Insulation class | 55 |
| Isolation class | F |
| Key width | 3 mm |
| Length of centring | 2.5 mm |
| LTotal length | 196 mm |
| Moments of inertia (kgm²) | 0.0001 kg·m² |
| MPitch circle diameter | 65 mm |
| N1 | 2800 r/min |
| NDiameter of centring | 50 mm |
| Noise level | 58 dB(A) |
| Nominal torque | 2.3 N·m |
| Norm | IEC/DIN - VDE 0530 |
| Number of phases | 3 |
| PDiameter lead in edge | 80 mm |
| PN | 0.09 kW |
| Power factor | 0.67 |
| Power factor cos phi 100% | 0.67 |
| Properties | Up to and including size 90: aluminium housing, From size 100: cast iron housing |
| Rated frequency | 50-50 Hz |
| Rated voltage | 400 V |
| RDistance center shaft to end terminal box | 100 mm |
| Shaft diameter | 9 mm |
| Shaft length | 20 mm |
| Swivel | M16x1,5 |

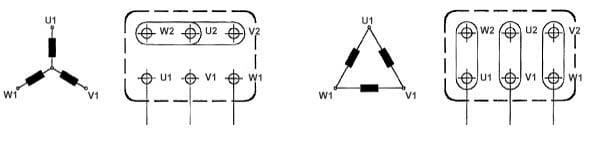

| Technical info | At 230/400 V: Y-configuration (300), At 400/690 V: Delta configuration (500) |
| TLength of centring | 2.5 mm |
| Torque Tmax/Tn | 2.6 N·m |
| Unit | Each |
| Weight | 2.6 kg |
| XDiameter mounting holes | M5 mm |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8716106887378 |
|---|---|
| Unit of measure | EA |
| Weight | 2913 g |
| Dimensions | 225 × 215 × 232 mm |
| Dangerous goods | No |
You might also like
BPA000271442

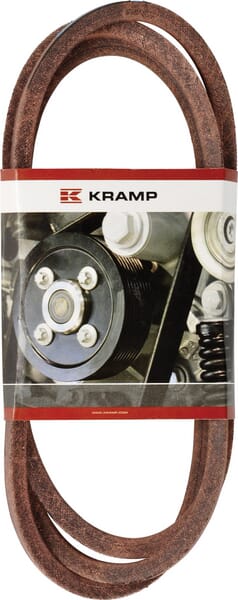

Kramp V-belt 5/8" x 59" Kevlar® cord FGP013525
£16.98 excl.
£20.38 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000154563
Kramp N/T Hayter green 5L 645212KR
£60.08 excl.
£72.10 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000203299
Kramp Hexagon head bolt DIN933 M14x120 steel zinc-plated 8.8 93314120
£2.34 excl.
£2.81 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000271178
Kramp Pulley Scag 5"x3/8" flat FGP012613
£58.76 excl.
£70.51 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000240932
Kramp Roof window CCGVOL006
£96.24 excl.
£115.49 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000252671

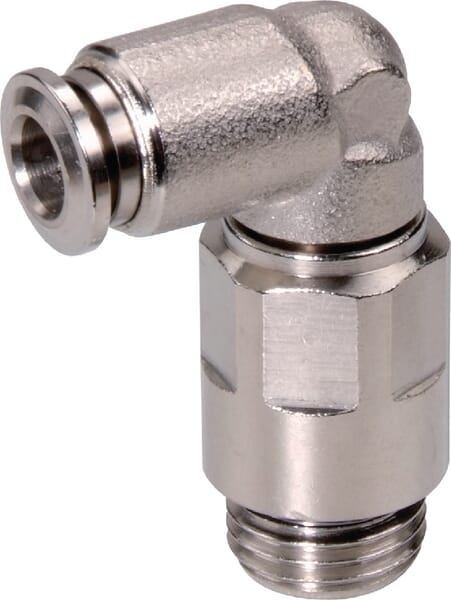

Kramp Elbow push-in fitting 6x1/8" ECSSL618B
£6.12 excl.
£7.34 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
Free shipping
BPA000224078
Kverneland Square tube msh 90x90x5x2990 AC87694277
£570.75 excl.
£684.90 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000396117

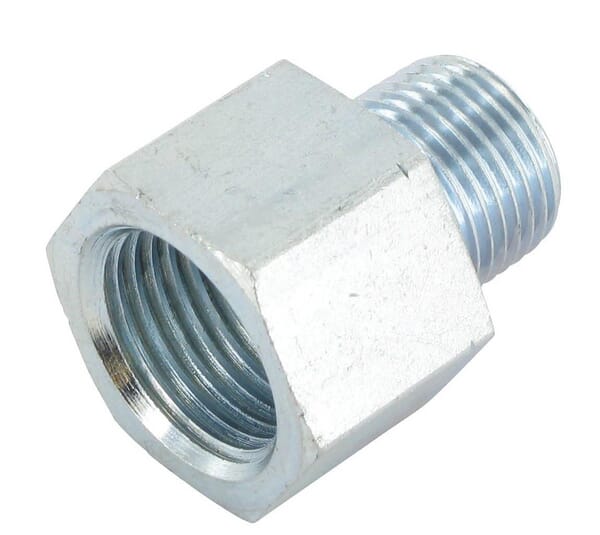

Non Original Adaptor M/F FBSP 1/2-M 16X150 VRMB1608
