£113.29
excl. VAT
£135.95 incl. VAT
£135.95
incl. VAT
£113.29 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Unit assembly, Combination with worm gear reducer |
|---|---|

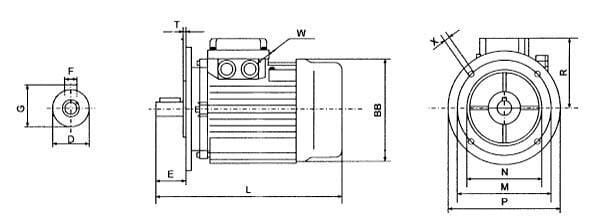

| BBDiameter fan cover | 117 mm |
| Benefits | High level of operational reliability |
| Colour | RAL 5000 Violet blue |
| Cooling system | Air |
| Details | The motor has an A-mark bearing |
| Efficiency | IE1 |
| Frame size | 56.0 mm |
| Insulation class | 55 |
| Insulation class according to IEC | F |
| Key width | 3 mm |
| Length of centring | 2.5 mm |
| LTotal length | 196 mm |
| Moments of inertia (kgm²) | 0.0002 kg·m² |
| MPitch circle diameter | 100 mm |
| N1 | 1360 r/min |
| NDiameter of centring | 80 mm |
| Noise level | 50 dB(A) |
| Norm | IEC/DIN - VDE 0530. |
| Number of phases | 3 |
| PN | 0.09 kW |
| POutside diameter flange | 120 mm |
| Power factor | 0.59 |
| Properties | Up to and including size 90: aluminium housing, From size 100: cast iron housing |
| Rated current | 0.45 A |
| Rated frequency | 50-50 Hz |
| Rated voltage | 400 V |
| RDistance center shaft to end terminal box | 100 mm |
| Revolutions max. | 1 500 ot./min. r/min |
| Shaft diameter | 9 mm |
| Shaft length | 20 mm |
| Swivel | M16x1,5 |

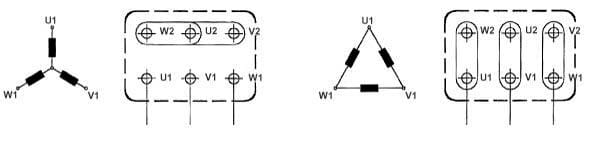

| Technical info | At 230/400 V: Y-configuration (300), At 400/690 V: Delta configuration (500) |
| Unit | Each |
| Voltage type | AC |
| Weight | 3.2 kg |
| XDiameter mounting holes | 7 mm |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8716106887262 |
|---|---|
| Unit of measure | EA |
| Weight | 3578 g |
| Dimensions | 231 × 213 × 157 mm |
| Dangerous goods | No |
You might also like
BPA000024072
Kramp Fertiliser adjustment chart 10226121N
£49.56 excl.
£59.47 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000202642
Kramp Castle nut DIN935 M39x4.00 steel Class 8 93539B
£14.92 excl.
£17.90 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000000610

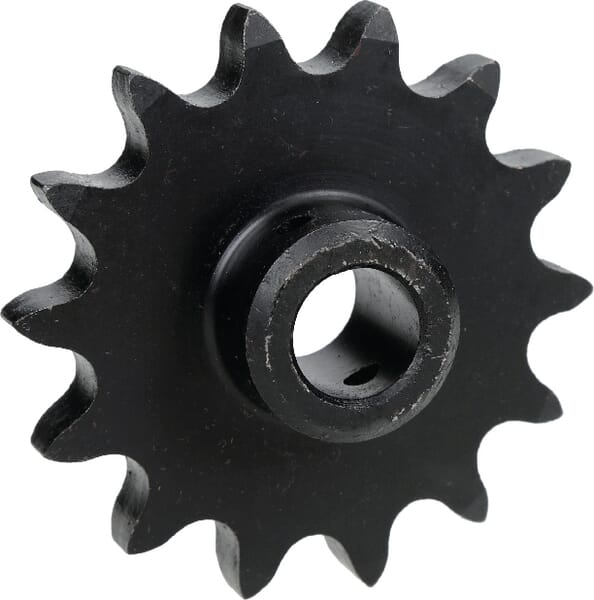

Kramp Sprocket 0006192723KR
£43.16 excl.
£51.79 incl.
In stock
Expected to ship on Monday 28 September
BPA000174811

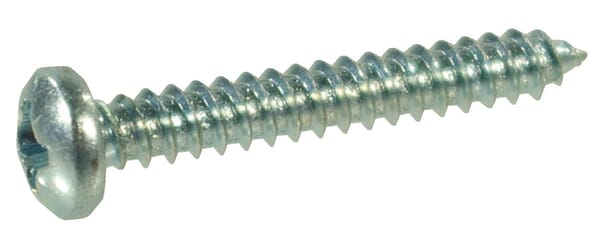

Kramp Self tapping screw 4.2x9.5mm PZ2 pan head, DIN 7981C 7981C4295P200
£0.04 excl.
£0.05 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000358556

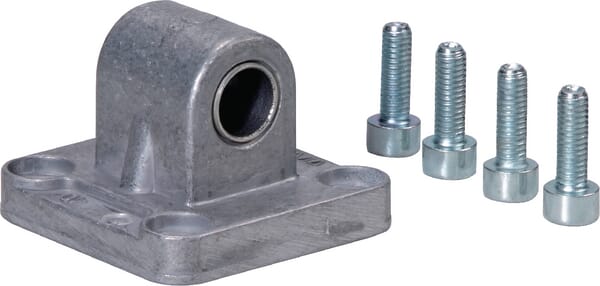

Kramp Swivel flange SFD125PN
