£125.48
excl. VAT
£150.58 incl. VAT
£150.58
incl. VAT
£125.48 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Unit assembly, Combination with worm gear reducer |
|---|---|
| Benefits | High operational reliability, Wider range of applications |
| Construction | IM 3601 (B14) |
| Cooling system | Air |
| Details | The motor has an A-mark bearing, Higher moisture protection class |
| DShaft diameter | 14.00 mm |
| Efficiency | IE2 |
| Frame size | 71.0 mm |
| Insulation class | 56 |
| N1 | 1400 r/min |
| Nominal torque | 2.4 nm |
| Number of phases | 3 |
| PN | 0.4 kW |
| Power factor | 0.7 |
| Properties | Up to and including size 90: aluminium housing, From size 100: cast iron housing |
| Rated current | 1 A |
| Rated frequency | 50-50 Hz |
| Rated voltage | 400 V |
| Shaft diameter | 14 mm |

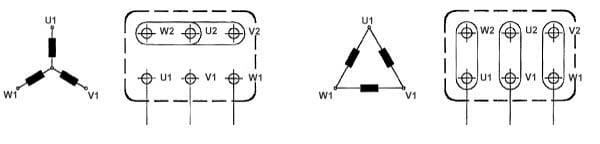

| Technical info | At 230/400 V: Y-configuration (300), At 400/690 V: Delta configuration (500) |

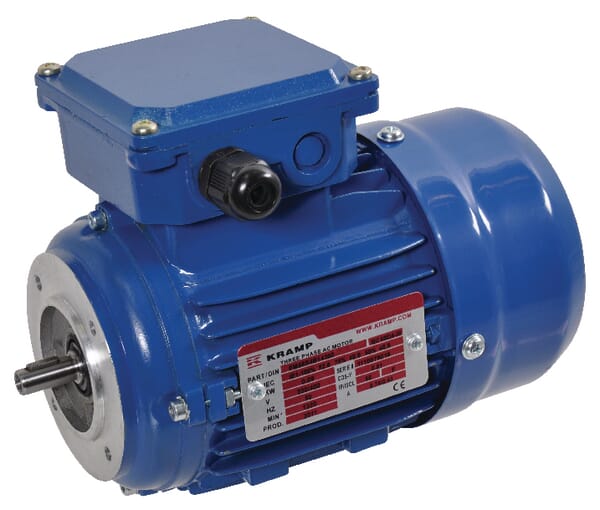

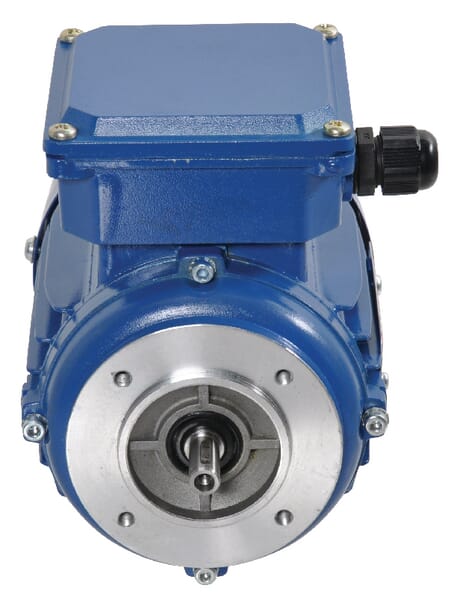

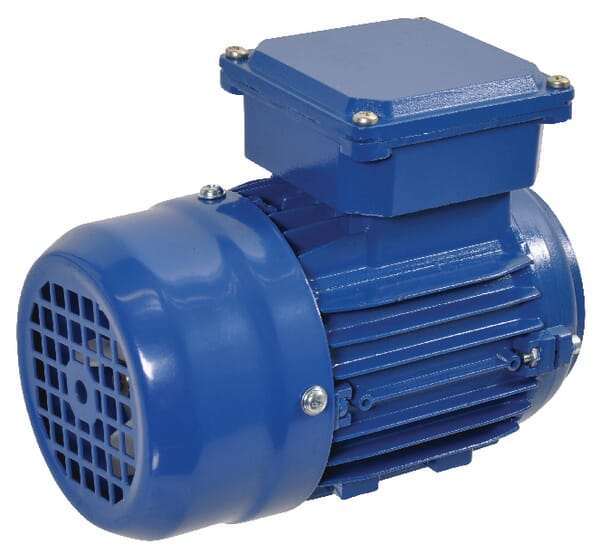

| Type | Rotary current asynchronous motor |
| Unit | Each |
| Voltage type | AC |
Logistics
| EAN | 8719493097344 |
|---|---|
| Unit of measure | EA |
| Weight | 6537 g |
| Dimensions | 275 × 235 × 165 mm |
| Dangerous goods | No |
You might also like
BPA000364865
Kramp Wood screw 3x30mm PZ1 countersunk, SPS330P200
£0.03 excl.
£0.04 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000269031
Kramp Elbow 90° male/male galv. 1 1/4" FG3114
£5.14 excl.
£6.17 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000349475
Kramp Mini relay 24V, changeover, 30A/40A, with resistor, without holder RL124C1R
£4.09 excl.
£4.91 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000304563
Kramp Magnet base with foot for work lamp LA106MAG
£9.16 excl.
£10.99 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000325760
Kramp Trimmer line diameter 2.7x63m, Oval twist, black, Kramp Endura NL2763ERKR
£12.61 excl.
£15.13 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000359704
Kramp Shaft steel 42CrMo4 hardened SM5042CRMO408H
£82.67 excl.
£99.20 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
BPA000311512

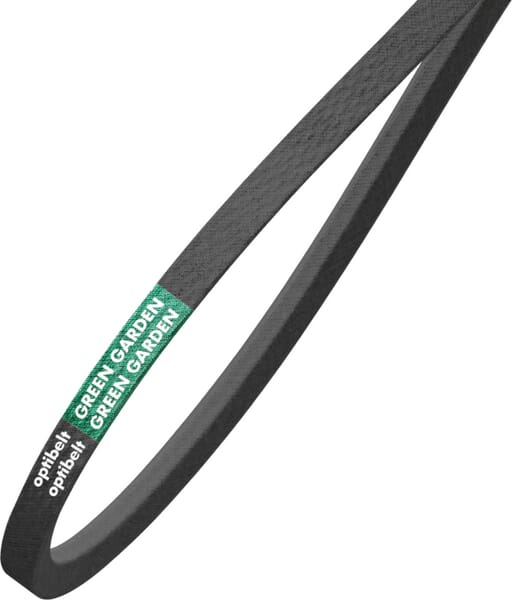

Optibelt V-belt 3/8"x28", 9.5x711mm LG2000182
£10.26 excl.
£12.31 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000268643

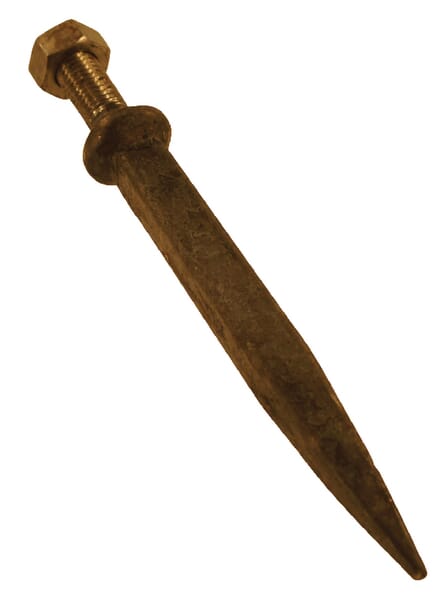

Non Original Str harrow tine M12 12mm sq. EZ141500
£8.06 excl.
£9.67 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000280746

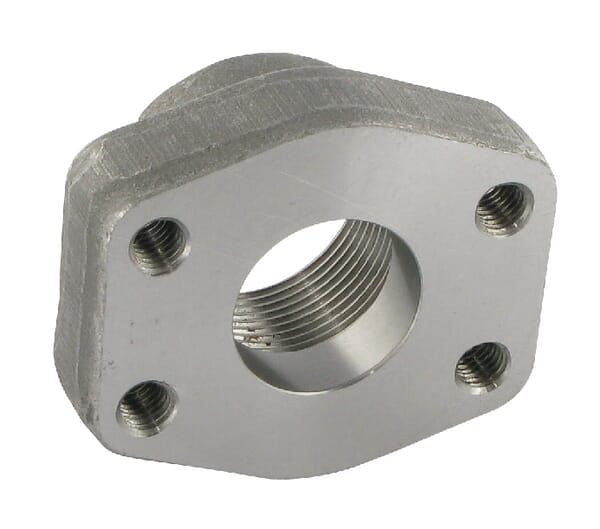

Oleo Tecnica Count.-fl. SAE6000 1-1/2 1-1/4 GFS624GU20
