£280.87
excl. VAT
£337.04 incl. VAT
£337.04
incl. VAT
£280.87 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September

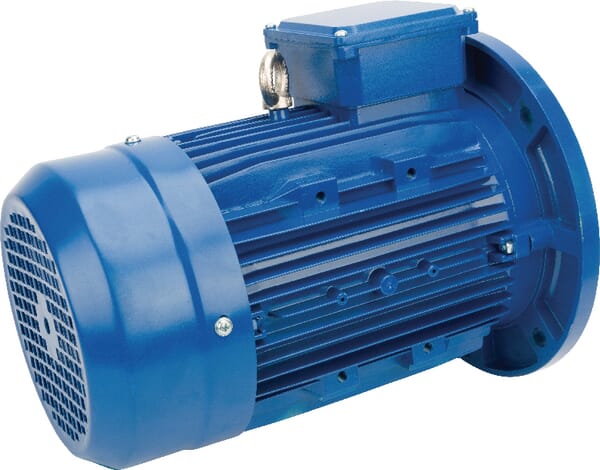

Product details

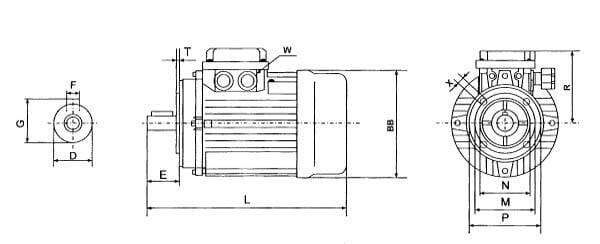

| BB | 158 mm |
|---|---|
| cos φ | 0.75 |
| In | 1.73 A |
| Key width | 6 mm |
| Length of centring | 3 mm |
| LTotal length | 280 mm |
| Moments of inertia (kgm²) | 0.0023 kg·m² |
| MPitch circle diameter | 100 mm |
| N1 | 1420 r/min |
| NDiameter of centring | 80 mm |
| Noise level | 58 dB(A) |
| PDiameter lead in edge | 120 mm |
| Phase ~ | 3 |
| PN | 0.75 kW |
| Power factor cos phi 100% | 0.73 |
| Protection type | IP55 |
| RDistance center shaft to end terminal box | 140 mm |
| Shaft diameter | 19 mm |
| Shaft length | 40 mm |
| Swivel | M20 x 1,5 |
| Unit | Each |
| Voltage | 230/400V 50Hz V |
| Weight | 11.7 kg |
| XDiameter mounting holes | M6 mm |
Logistics
| EAN | 8716106886241 |
|---|---|
| Unit of measure | EA |
| Weight | 12080 g |
| Dimensions | 330 × 265 × 187 mm |
| Dangerous goods | No |
