£248.40
excl. VAT
£298.08 incl. VAT
£298.08
incl. VAT
£248.40 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September

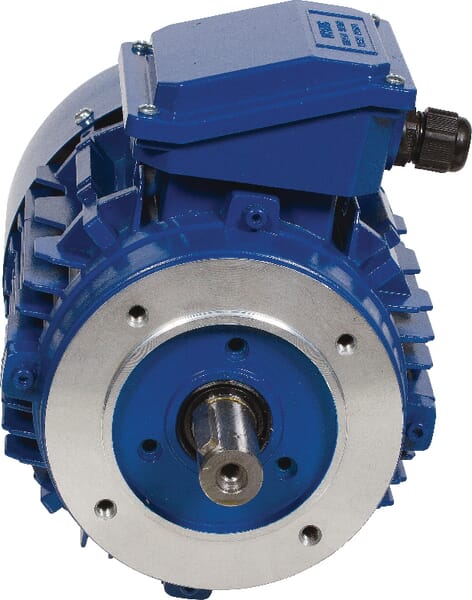

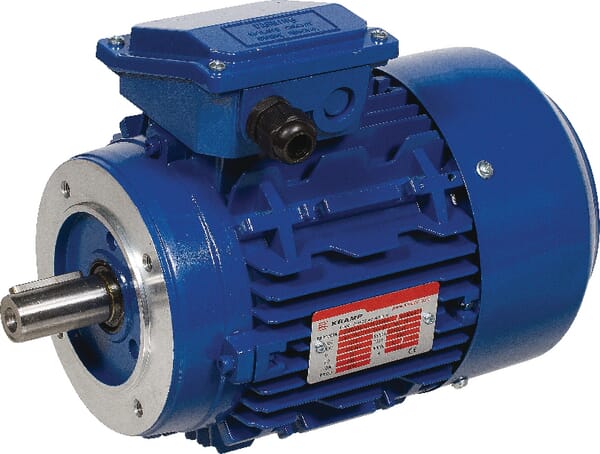

Product details

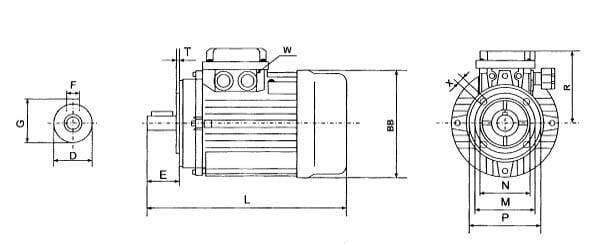

| BB | 176 mm |
|---|---|
| Frame size | 90 mm |
| In | 1.81 A |
| Key width | 8 mm |
| Length of centring | 3 mm |
| LTotal length | 325 mm |
| Moments of inertia (kgm²) | 0.0041 kg·m² |
| MPitch circle diameter | 115 mm |
| N1 | 950 r/min |
| NDiameter of centring | 95 mm |
| Noise level | 59 dB(A) |
| PDiameter lead in edge | 140 mm |
| Phase ~ | 3 |
| PN | 0.75 kW |
| Power factor cos phi 100% | 0.67 |
| RDistance center shaft to end terminal box | 150 mm |
| Shaft diameter | 24 mm |
| Shaft length | 50 mm |
| Swivel | M20 x 1,5 |
| Torque Tmax/Tn | 2.6 N·m |
| Torque Ts/Tn | 2.3 |
| Unit | Each |
| Voltage | 230/400V 50Hz V |
| Weight | 13.8 kg |
| XDiameter mounting holes | M8 mm |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8716106885602 |
|---|---|
| Unit of measure | EA |
| Weight | 14500 g |
| Dimensions | 340 × 250 × 190 mm |
| Dangerous goods | No |
You might also like
BPA000037054
Kramp Oil seal 12x22x7mm type:CC DIN 3760 1x 12227CCP001
£1.31 excl.
£1.57 incl.
In stock
Expected to ship on Friday 18 September
BPA000360248

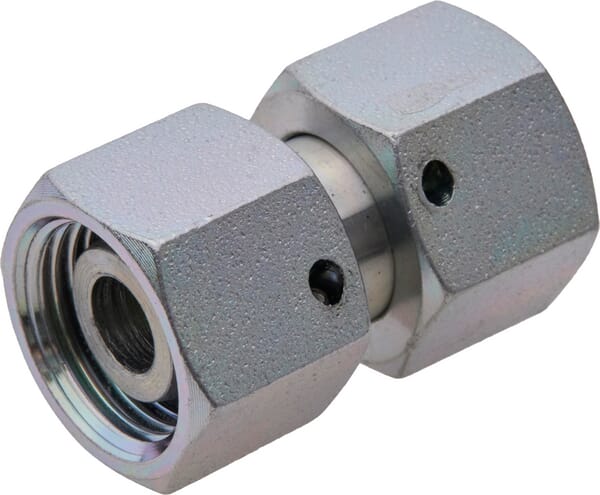

Kramp swivel Coupling 12L M18x1,5 SNV12LKR
£3.93 excl.
£4.72 incl.
In stock
Expected to ship on Friday 18 September
BPA000338211
Kramp Sprocket Duplex 20 teeth 3/4" chain 12 B-2 PD3420
£25.59 excl.
£30.71 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000318041
Kramp Bearing NWB06168
£18.42 excl.
£22.10 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000267434
Kramp Flow control valve FCVUM5
£17.70 excl.
£21.24 incl.
In stock
Expected to ship on Friday 18 September
BPA000260924

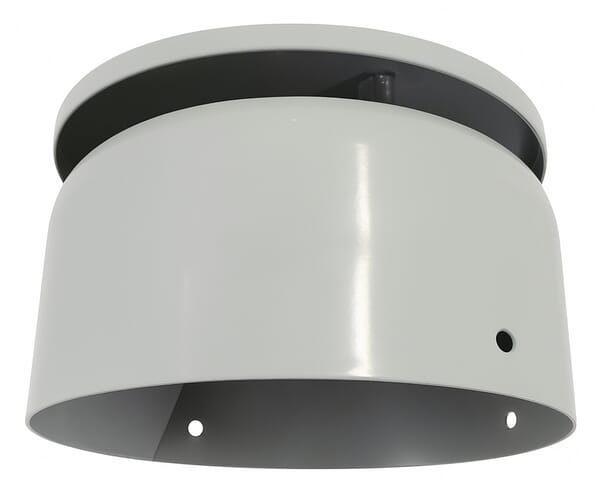

Kramp Fan cover with rain cap 100AL EM910011WA3
